Question

DNA Replication. Sketch a replication fork of bacterial DNA in which one strand is being replicated discontinuously and the other is being replicated continuously. List six different enzyme activities associated with the replication process, identity the function of each activity, and show where each would be located on the replication fork. In addition, identify the following features on your sketch: DNA template, RNA primer, Okazaki fragments, and single-stranded DNA binding protein.

0 0
Add a comment Improve this question Transcribed image text
Answer #1

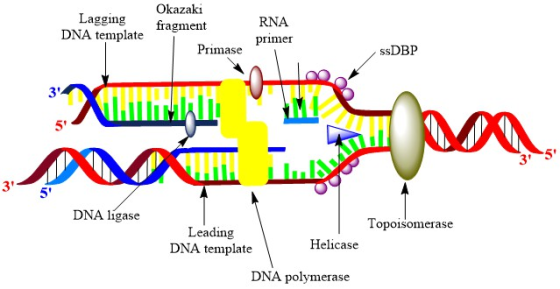

Okazaki Laggingfragment RNA DNA template primer Primase SSDBP 3 5 5 3 3 5 DNA ligase Topoisomerase Leading DNA template He

Dna A protein (have ATPase activity) bind to origin of replication and melt it.

Dna B helicase (hexameric; a type of topoisomerase II) helicase unwinds the helix while proceeding in 5’?3’ direction along the lagging strand.

DNA gyrase (type II topoisomerase) removes the torsional strain produced during helix unwinding.

DNA primase or simply primase, (a DNA dependent RNA polymerase) bind to both single strands and synthesizes a short length RNA oligonucleotide (RNA primer) onto each strand in 5’?3’ direction.

DNA polymerase III: Synthesizes most of DNA during replication.

DNA Pol I: Involved in nick translation.

DNA ligase: Joins two adjacent DNA fragments on lagging strand.

RNaseH: Removes RNA primer.
