Add Answer to:

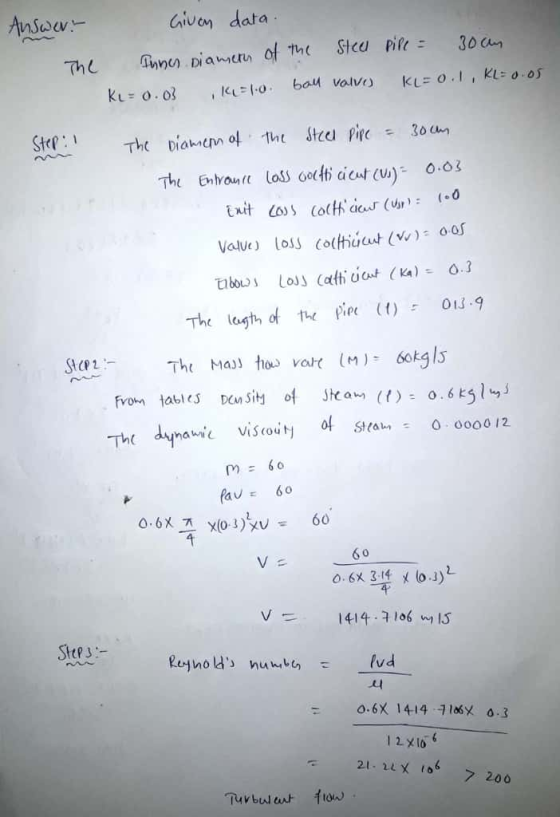

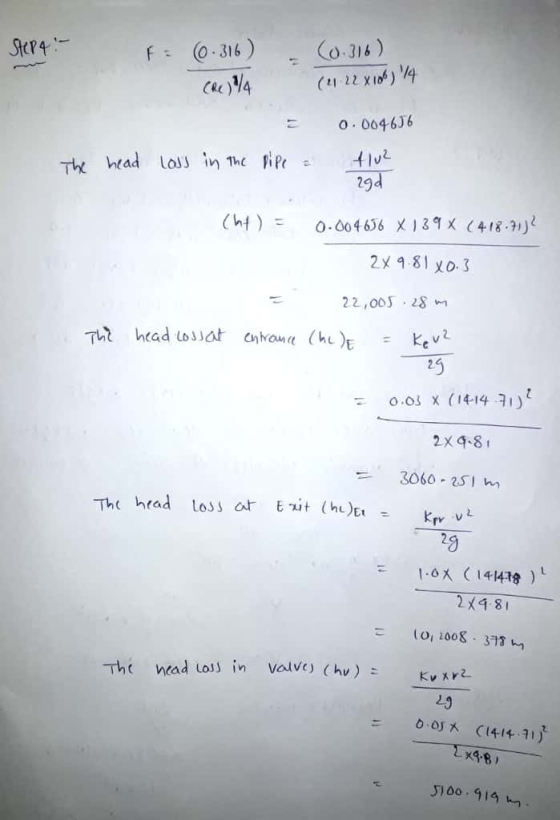

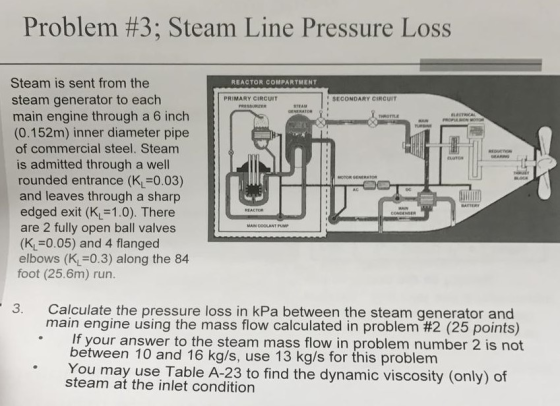

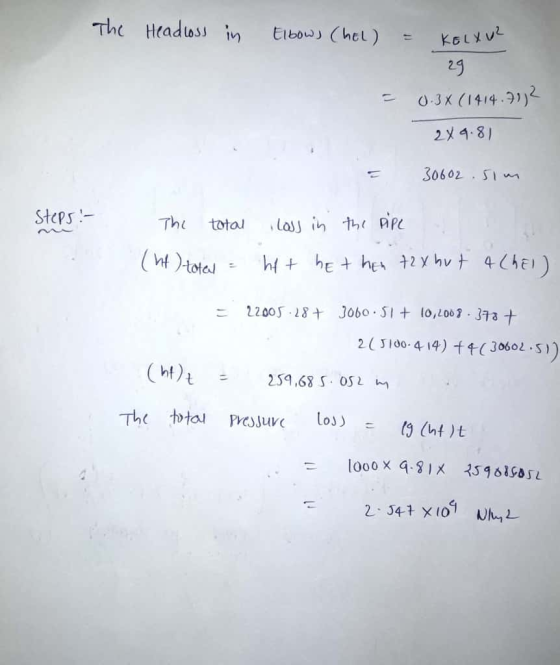

Problem #3; Steam Line Pressure Loss Steam is sent from the REACTOR COMPARTMENT steam generator to...
Problem 8.015 Water is the working fluid in a Rankine cycle. Steam exits the steam generator at 1500 lbf/in.2 and 1100℉ Due to heat transfer and frictional effects in the line connecting the steam ge...
Problem 8.015 Water is the working fluid in a Rankine cycle. Steam exits the steam generator at 1500 lbf/in.2 and 1100℉ Due to heat transfer and frictional effects in the line connecting the steam generator and turbine, the pressure and temperature at the turbine inlet are reduced to 1400 Ibf/in.2 and 1000 , respectively. Both the turbine and pump have isentropic efficiencies of 95%. Pressure at the condenser inlet is 2 lbf/ in.2, but due to frictional effects the condensate...
Water is the working fluid in a Rankine cycle. Steam exits the steam generator at 1500 lbf/in.2 and 1100°F. Due to heat transfer and frictional effects in the line connecting the steam generator and...
Water is the working fluid in a Rankine cycle. Steam exits the steam generator at 1500 lbf/in.2 and 1100°F. Due to heat transfer and frictional effects in the line connecting the steam generator and turbine, the pressure and temperature at the turbine inlet are reduced to 1400 lbf/in.2 and 1000°F, respectively. Both the turbine and pump have isentropic efficiencies of 95%. Pressure at the condenser inlet is 2 lbf/ in. 2, but due to frictional effects the condensate exits the...
this is all of the information given Problem 3. A piping system consists of 1200 m...
this is all of the information given
Problem 3. A piping system consists of 1200 m of 5 cm diameter cast-iron pipe, two 45° and four 90° flanged long-radius elbows, a fully open flanged globe valve, and a sharp submerged exit into a reservoir. The elevation of the outlet relative to the inlet is 100 m. What gage pressure is required at the inlet to deliver 0.005 m2/s of water at 20°C into the reservoir? Assume that the density and...
The ECCS pump in a reactor draws water from the suppression pool, at atmospheric pressure and...
The ECCS pump in a reactor draws water from the suppression pool, at atmospheric pressure and pumps water through the low-pressure injection system into the reactor pressure vessel 15 m above the suppression pool at a pressure of 4 MPa. The pipe is 8 inches in diameter. The entrance can be considered reentrant. The total length of stainless steel pipe is 45 m, and there are 6 elbows with r/D of 4. A check valve with a loss coefficient K...
3) A solar powered steam generator operates under an ideal Rankine cycle. Water at a pressure...
3) A solar powered steam generator operates under an ideal Rankine cycle. Water at a pressure of 15MPa enters the turbine as saturated vapor and leaves with a pressure of 0.125MPa. The mass flow rate in the cycle is 100 kg/s, while the temperature difference in the condenser water is 24 Celsius. Draw the T-s diagram of this ideal Rankine cycle. Determine the following: A) The net power developed in the cycle in kW B) The rate of heat transfer...
Your boss would like to connect a high temperature and pressure stream of steam (from another...
Your boss would like to connect a high temperature and pressure stream of steam (from another unit at the plant site) to a turbine that will be operated adiabatically and will serve as an energy source for a small electric generator. The steam is at T1 = 600 C and P1 = 10 bar. The outlet conditions of the turbine must be T2 = 400 C and P2 = 1 bar. The inlet diameter to the pipe connecting to the...
Problem 3 Steam flows steadily through an adiabatic turbine. The inlet conditions of the steam are...
Problem 3 Steam flows steadily through an adiabatic turbine. The inlet conditions of the steam are 10 MPa, 400 C, and 80 m/s, and the exit conditions are 10 kPa, 92 percent quality, and 50 m/s. The mass flow rate of the steam is 12 kg/s. Determine (a) the change in kinetic energy, (b) the power output, and (c) the turbine inlet area. Pi = 10 MPa 7, = 400 °C V1 80 m/s No STEAM 3 12 kg/s ▼Sh...
Water (density = 1000 kg/m3, viscosity = 1.15 x 10-3 N-s/m2) is delivered from a large reservoir ...
Water (density = 1000 kg/m3, viscosity = 1.15 x 10-3 N-s/m2) is delivered from a large reservoir upstream (Section"1") through two mortar lined steel circular pipes arranged in series to another large reservoir downstream (Section "2") as shown in Figure E4.7 The upstream pipe is 80 m long and 0.15 m in diameter, whereas the downstream pipe is 50 m long and 0.1 m in diameter. Both pipes have sharp-edged entrance and exit. Consider both major and minor losses. Determine...
Problem 1. Water flows from a large tank through a smooth pipe of length 80 m....
Problem 1. Water flows from a large tank through a smooth pipe of length 80 m. Both the tank free surface and jet exit are exposed to the atmosphere. Take the density of water p = 1000 kg/m3, dynamic viscosity of water u = 0.001 kg/m.s, atmospheric pressure = 100 kPa, and gravity = 9.8 m/s2. Calculate the volumetric flow rate through the pipe. Neglect entrance losses to the pipe. Hint: Consider the inlet and outlet sections of the pipe...
Please solve a,b,c,d,e,f 1) A water fountain is to be installed at a remote location by attaching a cast iron pipe directly to a water main through which water is flowing. The entrance to the pipe...
Please solve a,b,c,d,e,f
1) A water fountain is to be installed at a remote location by attaching a cast iron pipe directly to a water main through which water is flowing. The entrance to the pipe is sharp-edged 15m (K-0.5), and the 15m long piping system involves three 90 bends without vanes (K1.1), a fully open gate valve (K.-0.2), and a fully open angle valve (K-5). If the diameter of the pipe is 2 em and the system is to...
Problem 8.015 Water is the working fluid in a Rankine cycle. Steam exits the steam generator at 1500 lbf/in.2 and 1100℉ Due to heat transfer and frictional effects in the line connecting the steam generator and turbine, the pressure and temperature at the turbine inlet are reduced to 1400 Ibf/in.2 and 1000 , respectively. Both the turbine and pump have isentropic efficiencies of 95%. Pressure at the condenser inlet is 2 lbf/ in.2, but due to frictional effects the condensate...
Water is the working fluid in a Rankine cycle. Steam exits the steam generator at 1500 lbf/in.2 and 1100°F. Due to heat transfer and frictional effects in the line connecting the steam generator and turbine, the pressure and temperature at the turbine inlet are reduced to 1400 lbf/in.2 and 1000°F, respectively. Both the turbine and pump have isentropic efficiencies of 95%. Pressure at the condenser inlet is 2 lbf/ in. 2, but due to frictional effects the condensate exits the...
this is all of the information given
Problem 3. A piping system consists of 1200 m of 5 cm diameter cast-iron pipe, two 45° and four 90° flanged long-radius elbows, a fully open flanged globe valve, and a sharp submerged exit into a reservoir. The elevation of the outlet relative to the inlet is 100 m. What gage pressure is required at the inlet to deliver 0.005 m2/s of water at 20°C into the reservoir? Assume that the density and...
Problem 3 Steam flows steadily through an adiabatic turbine. The inlet conditions of the steam are 10 MPa, 400 C, and 80 m/s, and the exit conditions are 10 kPa, 92 percent quality, and 50 m/s. The mass flow rate of the steam is 12 kg/s. Determine (a) the change in kinetic energy, (b) the power output, and (c) the turbine inlet area. Pi = 10 MPa 7, = 400 °C V1 80 m/s No STEAM 3 12 kg/s ▼Sh...
Water (density = 1000 kg/m3, viscosity = 1.15 x 10-3 N-s/m2) is delivered from a large reservoir upstream (Section"1") through two mortar lined steel circular pipes arranged in series to another large reservoir downstream (Section "2") as shown in Figure E4.7 The upstream pipe is 80 m long and 0.15 m in diameter, whereas the downstream pipe is 50 m long and 0.1 m in diameter. Both pipes have sharp-edged entrance and exit. Consider both major and minor losses. Determine...
Problem 1. Water flows from a large tank through a smooth pipe of length 80 m. Both the tank free surface and jet exit are exposed to the atmosphere. Take the density of water p = 1000 kg/m3, dynamic viscosity of water u = 0.001 kg/m.s, atmospheric pressure = 100 kPa, and gravity = 9.8 m/s2. Calculate the volumetric flow rate through the pipe. Neglect entrance losses to the pipe. Hint: Consider the inlet and outlet sections of the pipe...
Please solve a,b,c,d,e,f
1) A water fountain is to be installed at a remote location by attaching a cast iron pipe directly to a water main through which water is flowing. The entrance to the pipe is sharp-edged 15m (K-0.5), and the 15m long piping system involves three 90 bends without vanes (K1.1), a fully open gate valve (K.-0.2), and a fully open angle valve (K-5). If the diameter of the pipe is 2 em and the system is to...
