2, 3, 4-Trichloropentane is a molecule that has two meso stereoisomers. Using this information, answer... a....
2, 3, 4-Trichloropentane is a molecule that has two meso stereoisomers. Using this information, answer...

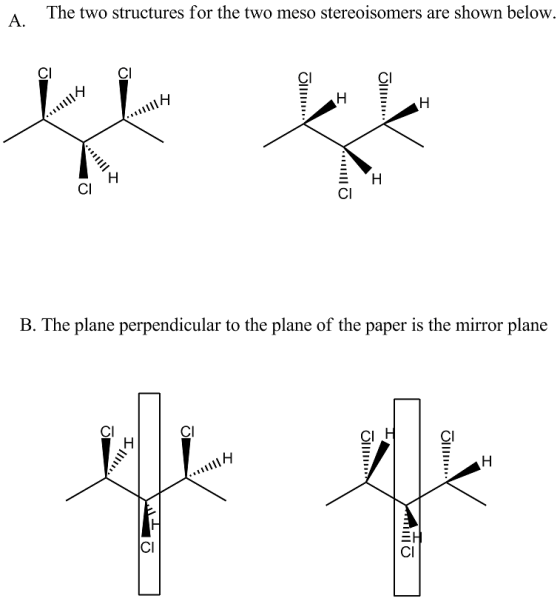

a. Draw the two structures for the two meso stereoisomers.
b. Redraw and indicate the location of the mirror plane in each meso
c. What is the stereochemical relationship between the two meso compounds
d. Is carbon-3 a stereocenter in these meso compounds? How do you know? If carbon-3 is a stereocenter, what addition to the R/S system would you need to assign a configuation to carbon-3?
e. How many steroisomers does 2, 3, 4-trichloropentane have?
Homework Answers
C. The two meso compounds are identical (one and same).
D. Carbon-3 is a stereocenter in these meso compounds as two like groups with deferent stereochemistry (R and S) are attached to this carbon. The additional information to the R/S system would you need to assign a configuration to carbon is that if neighbouring R carbon gets priority over S carbon or vice versa.
E. 2, 3, 4-trichloropentane has 3 chiral C atoms.It has
stereoisomers.
