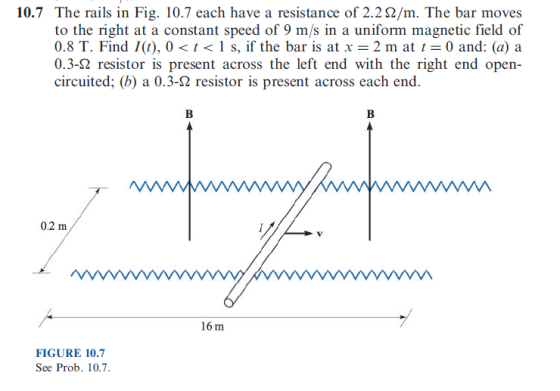

10.7 The rails in Fig. 10.7 each have a resistance of 2.2 S2/m. The bar moves...

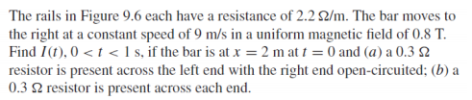

The rails in Figure 9.6 each have a resistance of 2.2 ?/m. The bar moves to...

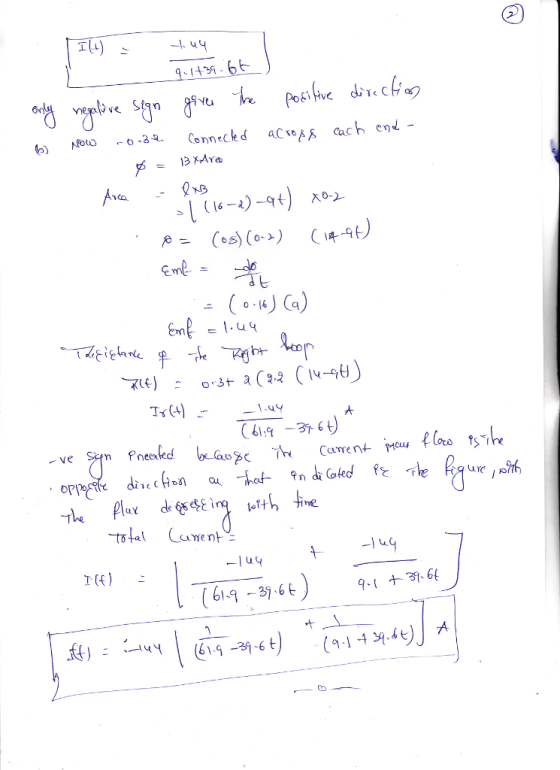

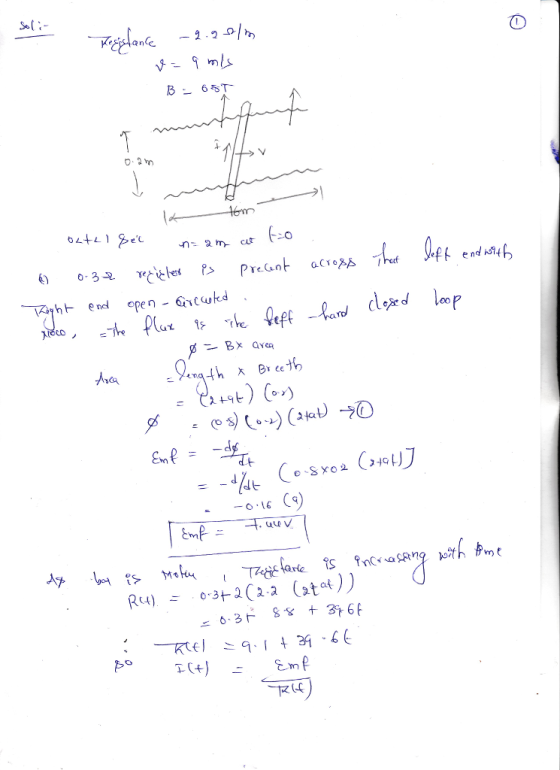

The rails in Figure 9.6 each have a resistance of 2.2 ?/m. The bar moves to the right at a constant speed of 9 m/s in a uniform magnetic field of 0.8 T Find I(t), 0t1 s, if the bar is at x -2 mat 0 and (a) a 0.3 S2 resistor is present across the left end with the right end open-circuited; (b) a 0.3 2 resistor is present across each end.
A 0.204 m -long bar moves on parallel rails that are connected through a 6.05 Ω...
A 0.204 m -long bar moves on parallel rails that are connected
through a 6.05 Ω resistor, as shown in the following figure (Figure
1), so the apparatus makes a complete circuit. You can ignore the
resistance of the bar and rails. The circuit is in a uniform
magnetic field 1.45 T that is directed into the plane of the
figure. At an instant when the induced current in the circuit is
counterclockwise and equal to 1.70 A , what...
A 0.282 m -long bar moves on parallel rails that are connected through a 6.03 Ω...
A 0.282 m -long bar moves on parallel rails that are connected through a 6.03 Ω resistor, as shown in the following figure (Figure 1), so the apparatus makes a complete circuit. You can ignore the resistance of the bar and rails. The circuit is in a uniform magnetic field 1.30 Tthat is directed into the plane of the figure. Part A At an instant when the induced current in the circuit is counterclockwise and equal to 1.85 A ,...
A conducting bar moves along frictionless conducting rails connected to a 4.00 omega resistor. The length...
A conducting bar moves along frictionless conducting rails
connected to a 4.00 omega resistor. The length of the bar is 1.60m
and a uniform magnetic field of 2.20T is applied perpendicular to
the paper pointing outward as shown
a) What is the applied force required to move the bar to the
right with a constant speed of 6.00 m/s?
b) At what rate is energy dissipated in the 4.00 ohm
resistor?
A conducting bar moves along frictionless conducting rails connected...
In the figure below, a metal bar sitting on two parallel conducting rails, connected to each other by a resistor, is pulled to the right at a constant speed.
A vertical bar and two parallel horizontal rails lie in the
plane of the page. The parallel rails run from left to right, with
one a distance ℓ above the other. The left ends of the rails are
connected by a vertical wire containing a resistor R. The
vertical bar lies across the rails to the right of the wire. Force
vector Fapp points from the bar toward
the right.In the figure below, a metal bar sitting on two parallel...
A conducting bar of length f moves to the right on two frictionless rails as shown...
A conducting bar of length f moves to the right on two frictionless rails as shown in the figure below. A uniform magnetic field directed into the page has a magnitude of 0.290 T. Assume R-9.10 Ω and 1 0.320 m. (a) At what constant speed should the bar move to produce an 8.60-mA current in the resistor? 83m/s (b) What is the direction of the induced current? clockwise counterclockwise O into the page O out of the page (c)...
13. A conducting bar moves along frictionless conducting rails connected to a 4.00-0 resistor as shown...
13. A conducting bar moves along frictionless conducting rails connected to a 4.00-0 resistor as shown in the figure. The length of the bar is 1.60 m and a uniform magnetic field of 2.20 T is applied perpendicular to the paper pointing outward, as shown. (8 points) (a) If the bar is moving to the right at a constant speed of 6.0 m/s, what is the direction of the current and the power dissipated by the resistor? (b) What is...
A conducting bar of mass m is placed on two long conducting rails
A conducting bar of mass m is placed on two long conducting rails a distance l apart. The rails are inclined at an angle theta with respect to the horizontal, andthe bar is able to slide on the rails with negligible friction. The bar and rails are in a uniform and constant magnetic field of magnitude B orientedperpendicular to the incline. A resistor of resistance R connects the upper ends of the rails and completes the circuit as shown. The...
A conducting bar of length ! moves to the right on two frictionless rails as shown...
A conducting bar of length ! moves to the right on two frictionless rails as shown in the figure below. A uniform magnetic field directed into the page has a magnitude of 0.290 T. Assume R = 9.10 and l = 0.330 m. X X X X X X X X * * *A* X * * * * * * * X X * * x * * * * * * * X X * * x *...
w 2. The conducting bar illustrated in the figure moves on two frictionless, parallel rails in...
w 2. The conducting bar illustrated in the figure moves on two frictionless, parallel rails in the presence of a uniform magnetic field directed into the page. The bar has mass m and its length is l. The bar is given an initial velocity Vi to the right and is released at t=0. Find the speed of the bar as a function of time after it is released.
The rails in Figure 9.6 each have a resistance of 2.2 ?/m. The bar moves to the right at a constant speed of 9 m/s in a uniform magnetic field of 0.8 T Find I(t), 0t1 s, if the bar is at x -2 mat 0 and (a) a 0.3 S2 resistor is present across the left end with the right end open-circuited; (b) a 0.3 2 resistor is present across each end.
A 0.204 m -long bar moves on parallel rails that are connected
through a 6.05 Ω resistor, as shown in the following figure (Figure
1), so the apparatus makes a complete circuit. You can ignore the
resistance of the bar and rails. The circuit is in a uniform
magnetic field 1.45 T that is directed into the plane of the
figure. At an instant when the induced current in the circuit is
counterclockwise and equal to 1.70 A , what...
A conducting bar moves along frictionless conducting rails
connected to a 4.00 omega resistor. The length of the bar is 1.60m
and a uniform magnetic field of 2.20T is applied perpendicular to
the paper pointing outward as shown
a) What is the applied force required to move the bar to the
right with a constant speed of 6.00 m/s?
b) At what rate is energy dissipated in the 4.00 ohm
resistor?
A conducting bar moves along frictionless conducting rails connected...
A vertical bar and two parallel horizontal rails lie in the
plane of the page. The parallel rails run from left to right, with
one a distance ℓ above the other. The left ends of the rails are
connected by a vertical wire containing a resistor R. The
vertical bar lies across the rails to the right of the wire. Force
vector Fapp points from the bar toward
the right.In the figure below, a metal bar sitting on two parallel...
A conducting bar of length f moves to the right on two frictionless rails as shown in the figure below. A uniform magnetic field directed into the page has a magnitude of 0.290 T. Assume R-9.10 Ω and 1 0.320 m. (a) At what constant speed should the bar move to produce an 8.60-mA current in the resistor? 83m/s (b) What is the direction of the induced current? clockwise counterclockwise O into the page O out of the page (c)...
13. A conducting bar moves along frictionless conducting rails connected to a 4.00-0 resistor as shown in the figure. The length of the bar is 1.60 m and a uniform magnetic field of 2.20 T is applied perpendicular to the paper pointing outward, as shown. (8 points) (a) If the bar is moving to the right at a constant speed of 6.0 m/s, what is the direction of the current and the power dissipated by the resistor? (b) What is...
A conducting bar of length ! moves to the right on two frictionless rails as shown in the figure below. A uniform magnetic field directed into the page has a magnitude of 0.290 T. Assume R = 9.10 and l = 0.330 m. X X X X X X X X * * *A* X * * * * * * * X X * * x * * * * * * * X X * * x *...
w 2. The conducting bar illustrated in the figure moves on two frictionless, parallel rails in the presence of a uniform magnetic field directed into the page. The bar has mass m and its length is l. The bar is given an initial velocity Vi to the right and is released at t=0. Find the speed of the bar as a function of time after it is released.
