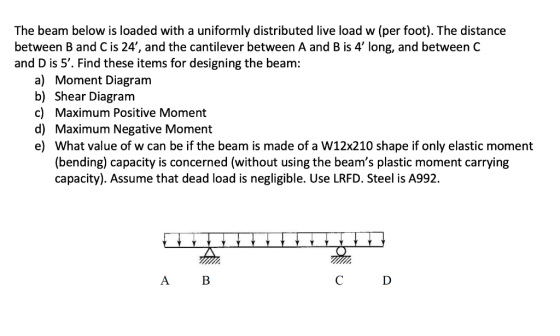

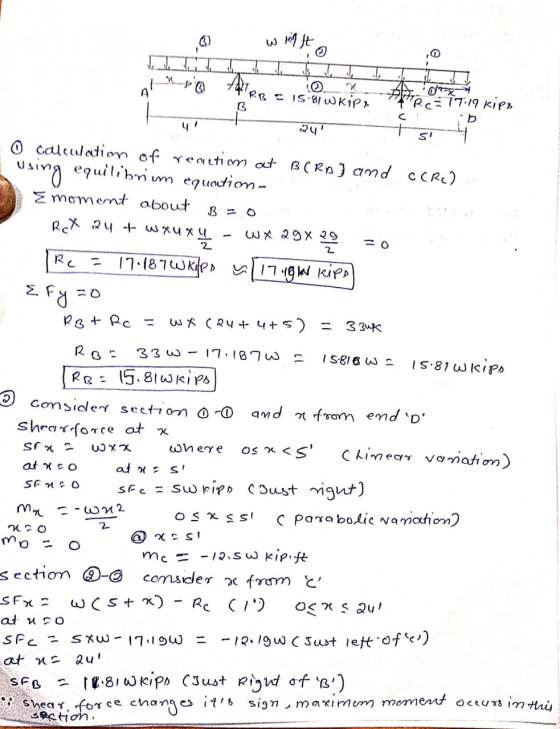

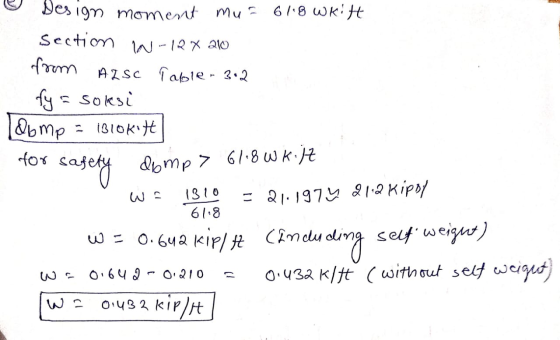

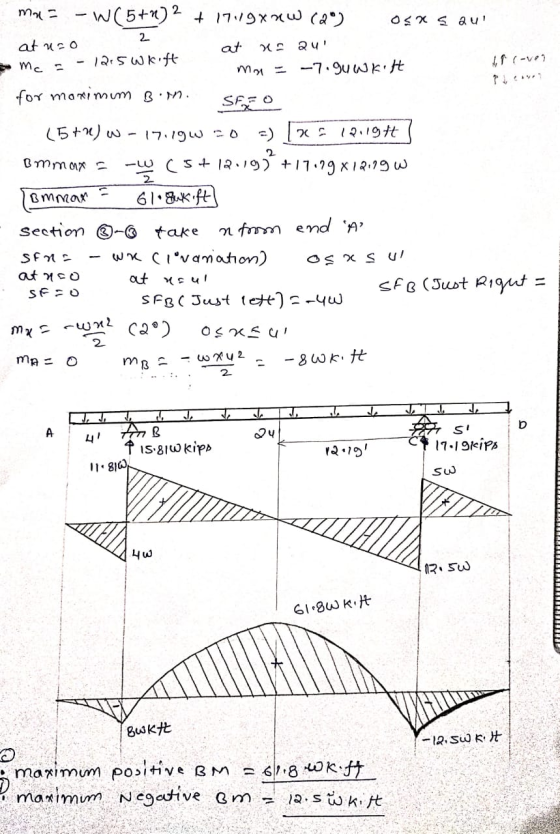

The beam below is loaded with a uniformly distributed live load w (per foot). The distance...
the beam is loaded uniformly from the floor with a live load of 80 pounds per...
the beam is loaded uniformly from the floor with a live load of
80 pounds per square foot (psf) and a dead load in addition to the
beam self-weight of 60 psf. the beam will have full lateral support
provided by the floor deck, and a compact section will be selected.
Use A992 steel. Design a W-shape floor beam for the intermediate
beam marked A on the floor plan shown below.
a) Use LRFD.
b) Use ASD.
Is loaded uniformly...
The beam is loaded as shown in the diagram below. The beam is uniformly loaded at...
The beam is loaded as shown in the diagram below. The beam is uniformly loaded at 3 kN/m for the length of 4 m from B. The beam also has two point loads, 4 KN at 2 m from A and 3 KN at 3 m from B. 2 KN 3 KN 3KN/m A 2 m 2 m 11 m 3 m Fig. Q2 Draw a shear force and bending moment diagram. Also determine the location of maximum bending moment...
Problem 5 (20 %) The beam below was loaded with uniform load of 3kip/ft. Using the...
Problem 5 (20 %) The beam below was loaded with uniform load of 3kip/ft. Using the Muller-Breslau principle draw the influence lines for bending moment at critical points G and just right of B, considering a unit moving load. (G is located at the mid-span of AB). Calculate the maximum magnitude bending moment at B and at G if a) the uniform load of 3kip/ft is live and b) the uniform load of 3kip/ft is dead. NOTE: Dead loads are...
P=10 kN A cantilever beam is subiected to a concentrated force P, a uniformly distributed load...
P=10 kN A cantilever beam is subiected to a concentrated force P, a uniformly distributed load w and a moment MI shown in the figure. Neglect the weight of the beam. (a) Draw the free body diagram for the beam showing all the 2 m reactions, replacing the support M.-2 kNm by the reaction forces/moments. (b) Use the equations of equilibrium to find the reaction forces/moments at R (c) Give the expression for the shear force, V- V(x), and the...
The Beam shown will be subjected to a concentrated live load of 100kN, a uniformly distributed...
The
Beam shown will be subjected to a concentrated live load of 100kN,
a uniformly distributed live load of 50kN/m and a uniformly
distributed dead load of 20kN/m.
45.) determine the maximum reaction at B
46.) determine the maximum positive shear at C
47.) determine the maximum negative moment at B
The beam shown will be subjected to a concentrated live load of 100 KN, a uniformly distributed live load of 50 kN/m and a uniformly distributed dead load of...
The W33 x221 steel simply supported beam is loaded with concentrated loads and uniform load as...
The W33 x221 steel simply supported beam is loaded with
concentrated loads and uniform
load as shown with the load P= 150kip and w = 10kip/ft. For
this beam do the following;
a) Draw the shear and bending moment diagram
b) Calculate the maximum compressive and tensile stress
c) Calculate the maximum shear stress
P Р 3 ft 3 ft w 10 ft
Beam with bending load The beam AD below is made of steel A-36 and has a cross section as indicated. This beam is loaded between A and B with a distributed load with intensity w and at D with a vertical force P downwards. At A the beam is supported with a
Beam with bending loadThe beam AD below is made of steel A-36 and has a cross section as indicated. This beam is loaded between A and B with a distributed load with intensity w and at D with a vertical force P downwards. At A the beam is supported with a fixed clamping and at C with a roller bearing. The own weight of the beam may be neglected. Handle the orientation of the given x-y axis system. L=185Determine all support...
100 lb/tht A cantilever beam 10 ft long carries a uniformly distributed load of w 100...
100 lb/tht A cantilever beam 10 ft long carries a uniformly distributed load of w 100 lb/ft. The beam is constructed from a 3-in.-wide by 8-in.-deep wood timber (1) that is reinforced on its upper surface by a 3-in.-wide by 0.25-in.-thick alumi- 3im num plate (2). The elastic modulus of the wood is E 1,700 ksi, and the elastic modulus of the aluminum plate is E 10,200 ksi. Determine 0h Cross-sectional dimensions. the maximum bending stresses produced in timber (1)...
The below wooden double overhanging beam is under a uniformly distributed load W. The wood is...
The below wooden double overhanging beam is under a uniformly distributed load W. The wood is weak along the orientation of the grain (or wood cell fibres) that makes an angle of 30° with the horizontal (see figure). The maximum shear stress on a plane parallel to the grain that the wood can sustain is t,max = 5 MPa, and the maximum normal stress of wood is omax = 25 MPa. The Young modulus of this wood is E=15 GPa....
The simply supported beam of length L is subjected to uniformly distributed load of w and...
The simply supported beam of length L is subjected to uniformly distributed load of w and a vertical point load P at its middle, as shown in Figure Q3. Both young's modulus and second moment of area of this structure are given as E and I. Please provide your answers in terms of letters w, P,L,1, E. Self-weight of the beam is neglected. P W L/2 L/2 Figure Q3 (a) Determine the reactions, bending moment equation along the beam and...
the beam is loaded uniformly from the floor with a live load of
80 pounds per square foot (psf) and a dead load in addition to the
beam self-weight of 60 psf. the beam will have full lateral support
provided by the floor deck, and a compact section will be selected.
Use A992 steel. Design a W-shape floor beam for the intermediate
beam marked A on the floor plan shown below.
a) Use LRFD.
b) Use ASD.
Is loaded uniformly...
The beam is loaded as shown in the diagram below. The beam is uniformly loaded at 3 kN/m for the length of 4 m from B. The beam also has two point loads, 4 KN at 2 m from A and 3 KN at 3 m from B. 2 KN 3 KN 3KN/m A 2 m 2 m 11 m 3 m Fig. Q2 Draw a shear force and bending moment diagram. Also determine the location of maximum bending moment...
Problem 5 (20 %) The beam below was loaded with uniform load of 3kip/ft. Using the Muller-Breslau principle draw the influence lines for bending moment at critical points G and just right of B, considering a unit moving load. (G is located at the mid-span of AB). Calculate the maximum magnitude bending moment at B and at G if a) the uniform load of 3kip/ft is live and b) the uniform load of 3kip/ft is dead. NOTE: Dead loads are...
P=10 kN A cantilever beam is subiected to a concentrated force P, a uniformly distributed load w and a moment MI shown in the figure. Neglect the weight of the beam. (a) Draw the free body diagram for the beam showing all the 2 m reactions, replacing the support M.-2 kNm by the reaction forces/moments. (b) Use the equations of equilibrium to find the reaction forces/moments at R (c) Give the expression for the shear force, V- V(x), and the...
The
Beam shown will be subjected to a concentrated live load of 100kN,
a uniformly distributed live load of 50kN/m and a uniformly
distributed dead load of 20kN/m.
45.) determine the maximum reaction at B
46.) determine the maximum positive shear at C
47.) determine the maximum negative moment at B
The beam shown will be subjected to a concentrated live load of 100 KN, a uniformly distributed live load of 50 kN/m and a uniformly distributed dead load of...
The W33 x221 steel simply supported beam is loaded with
concentrated loads and uniform
load as shown with the load P= 150kip and w = 10kip/ft. For
this beam do the following;
a) Draw the shear and bending moment diagram
b) Calculate the maximum compressive and tensile stress
c) Calculate the maximum shear stress
P Р 3 ft 3 ft w 10 ft
100 lb/tht A cantilever beam 10 ft long carries a uniformly distributed load of w 100 lb/ft. The beam is constructed from a 3-in.-wide by 8-in.-deep wood timber (1) that is reinforced on its upper surface by a 3-in.-wide by 0.25-in.-thick alumi- 3im num plate (2). The elastic modulus of the wood is E 1,700 ksi, and the elastic modulus of the aluminum plate is E 10,200 ksi. Determine 0h Cross-sectional dimensions. the maximum bending stresses produced in timber (1)...
The below wooden double overhanging beam is under a uniformly distributed load W. The wood is weak along the orientation of the grain (or wood cell fibres) that makes an angle of 30° with the horizontal (see figure). The maximum shear stress on a plane parallel to the grain that the wood can sustain is t,max = 5 MPa, and the maximum normal stress of wood is omax = 25 MPa. The Young modulus of this wood is E=15 GPa....
The simply supported beam of length L is subjected to uniformly distributed load of w and a vertical point load P at its middle, as shown in Figure Q3. Both young's modulus and second moment of area of this structure are given as E and I. Please provide your answers in terms of letters w, P,L,1, E. Self-weight of the beam is neglected. P W L/2 L/2 Figure Q3 (a) Determine the reactions, bending moment equation along the beam and...
