Page < of 6 Question 2: (a). In the RLC circuit shown below, R=992, L = 10 mH and C= 1 mF. Find the steady-state current iſt)

0 0
Add a comment Improve this question Transcribed image text

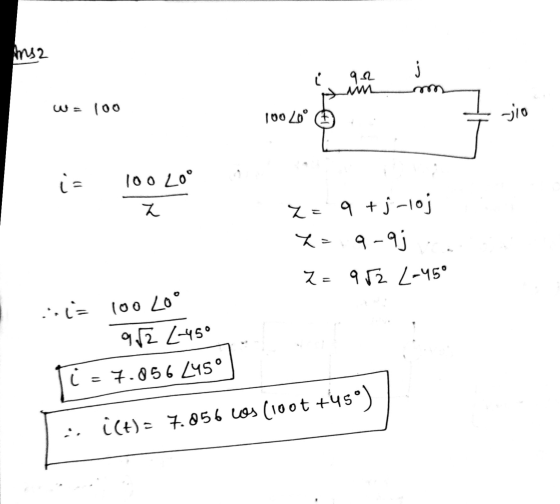

Answer #1

2 ۹۹ ہو) = ه ) ما 00 | وار- i= 0700| 7 زه - ز+ 4 == = 9 - ۹j 7= 92 -15° .: (oo 0 ° 92 -5° [ = 4.85 ، Zs (100t + s) مها 856 .4Dear student hope it helps. Please don't forget to give thumbs up thank you

Add a comment
Know the answer?
Add Answer to:
Page < of 6 Question 2: (a). In the RLC circuit shown below, R=992, L =...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • 1. RLC Circuits Revisited. The first example of a RLC circuit illustrates the use of circuit...

    1. RLC Circuits Revisited. The first example of a RLC circuit illustrates the use of circuit elements in the s domain to represent initial conditions and a forced response. Next an example of sinusoidal excitation will follow where the transient response and steady state response are combined into one response waveform.. Transient RLC Circuit with Initial Conditions. Consider the RLC circuit below in Figure 7.14 which has two DC sources (Vco and V) applied before and after a switch is...

  • A series RLC circuit has R = 802, L = 240 mH, and C = 5...

    A series RLC circuit has R = 802, L = 240 mH, and C = 5 mF. If the input voltage is v(t) = 114 cos 2t, find the current flowing through the circuit. Please report your answer so the magnitude is positive and all angles are in the range of negative 180 degrees to positive 180 degrees. The current flowing through the circuit is i(t) = cos(2t + ) mA.

  • Use the node voltage method to find the steady-state expression for io in the circuit seen...

    Use the node voltage method to find the steady-state expression for io in the circuit seen in (Figure 1) if ig 4 cos 2500t A and v, 16 cos(2500t + 90° ) V Write the steady-state expression for io(t) as to = L cos(wt + φ), where-180° <φ < 180° Figure く 1of1 100 μF 50 uF 12Ω View "31.6 mH 30

  • Consider the RLC circuit below, with R= 20 12, L = 10 mH, and C =...

    Consider the RLC circuit below, with R= 20 12, L = 10 mH, and C = 5 mF. The voltage source has a voltage amplitude of 26.0 V and an angular frequency of w = 500 rad/s. a) What is the total impedance of the circuit? b) Find the amplitude of the current, and the phase angle, d. c) Draw a phasor diagram of the impedances. Be sure to clearly label Z, R, XL, Xc, and 0. R C E

  • In the circuit given below, V = 28 V. Find it for t> 0. 32 1...

    In the circuit given below, V = 28 V. Find it for t> 0. 32 1 H iſt) 40u(t) A 192 V 40 mF O 10 = [8.729 sin(4.5830e-29410) A O 10 = [218.232 cos(4.5831)e-2940 A it = [218.232 sin(4.5831e-2]40) A O 10 = [8.729 COS(4.583 18-2010 A

  • b) A periodic voltage vs(t) is applied to a RLC circuit shown in Figure 1 (b)...

    b) A periodic voltage vs(t) is applied to a RLC circuit shown in Figure 1 (b) with R=10012, L=100mH and C=1pF. The first four nonzero terms in the Fourier series is given by the following: v:(t) = 10 +2 sin(10’t)-1sin(2x10't)+sin(3x10°r) v Find the first four nonzero terms in the Fourier series of the steady-state current iſt). (20 marks) R M v.(t) Tv.(t) Figure 2(b): Circuit for Question 2

  • 2- A circuit across the terminals of a sinusoidal voltage source, as shown in Figure 2....

    2- A circuit across the terminals of a sinusoidal voltage source, as shown in Figure 2. The steady-state expression for the source voltage is v;=50.cos(1000t+20). (40 points) 12 mH 100 MF 10 Figure 2 a) Construct the frequency-domain equivalent circuit. b) Calculate the steady-state current i by the phasor method.

  • Page < 3 > 017 - Problem 1: Consider the electrical circuit below, where the switch...

    Page < 3 > 017 - Problem 1: Consider the electrical circuit below, where the switch is thrown at t-0. Using Kirchhoff's laws and Ohm's law, please, write the differential equation fort > 0. Assuming Vsi = 12 V, Vs2 = 7V, R; = 8kN, R, = 10 kN, Rg = 12 kN, and C-50 nF, and knowing that the circuit is at steady state for t < 0, please, find the initial condition on Ve 3R2 97. BR Tic...

  • For the circuit below Given that Vs(t) is a step input and at t<0 it is...

    For the circuit below Given that Vs(t) is a step input and at t<0 it is at OV. Now at t=0, Vs(t) =IV. RíkQ, L=1 mH. Given that the inductor has no current prior to t-0 (and the current of the inductor cannot change instantaneously), find and sketch the solution of ir(t). What is VR(t)? Vs Figure GC3

  • In the circuit shown in Figure 20.13, find the parameter Z12. * < ku Figure 20.13...

    In the circuit shown in Figure 20.13, find the parameter Z12. * < ku Figure 20.13 O a. 212 = Rs/(s+ RIL) O b. 212 = SL C. Z12 = R + SL O d. 212 = R
