Homework Answers
As the DNA is linear & after digestion with PstI & SmaI produces 2 & 3 restriction fragments respectively, PstI & SmaI will have 1 & 2 restriction cut sites respectively.
At first, we draw restriction map based on only PstI digestion. This is shown in below picture.

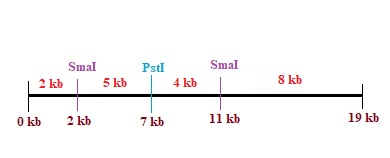

Next, we consider PstI+SmaI digestion. We find that 2 kb & 8 kb fragments of only SmaI digestion remain intact in PstI+SmaI digestion. Further, 9 kb fragment of only SmaI digestion divided into two fragments of 4 kb & 5kb. So, PstI restriction cut site must be present in the 9 kb fragment of only SmaI digestion. Based on this, the final map is drawn below.
Add Answer to:

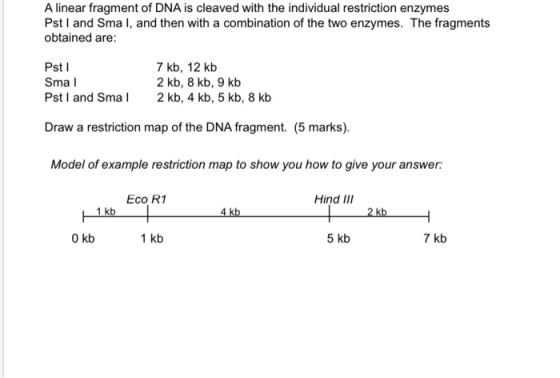

A linear fragment of DNA is cleaved with the individual restriction enzymes Pst and Smal, and...
