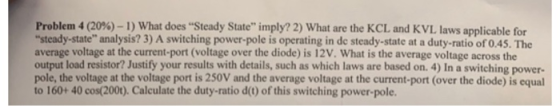

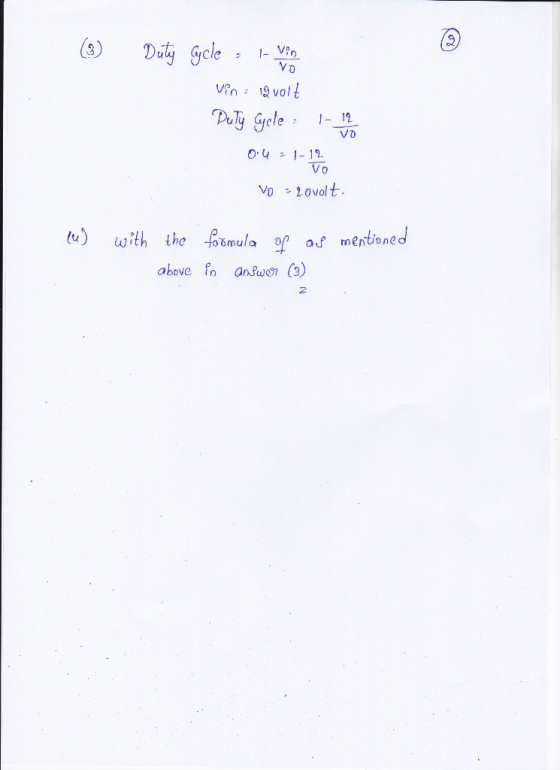

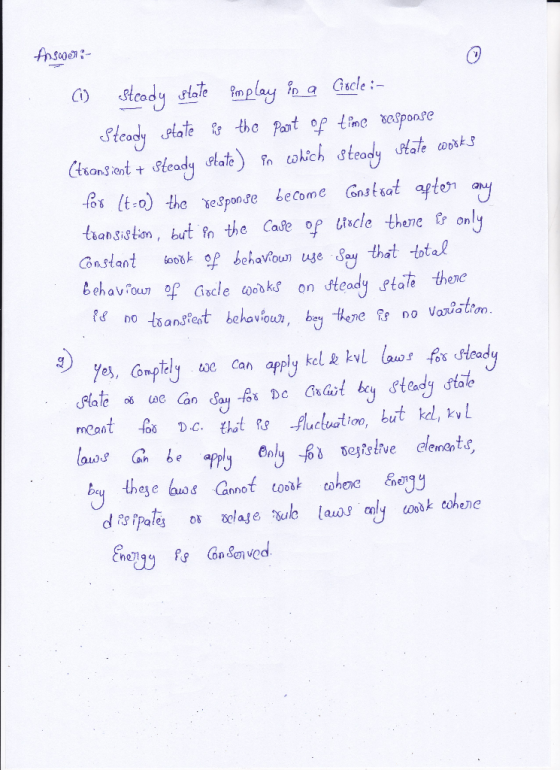

Problem 4 (20%)-1) what does "Steady State" imply? 2) what are the KCL and KVL laws...
Problem 2 For the circuit shown, what is the steady state current in each resistor? C1 1mH 4.7 nF R1 R3 V1 R2 1.2㏀ 12V
Assist ne please
Question 3 NAME: The circuit shown below contains two switches which open and close perfectly out of phase with one another (only one is open at any given time, and once one closes the other immediately opens, and vice-versa). The switches alternate at a frequency of 10kHz, and each switch spends 50% of the time open and 50% of the time closed (ie, each switch is open for 100 microseconds and then closed for 100 microseconds). The...
PLEASE HELP!
Jan. 31, 2018 Name: Section: I. Consider the circuit shown in figure (a) Write the mesh-current equations (b) Write the for the circuit. D。~of SOL the circuit DO NOT SOLVE shown in figure 2. The sinusoidal source is the circuit to the frequency domain er the circuit (a) Transto with the mesh-current method to find thement (b) Use phasors with the mesh (c) Find the average power absorbed source is 、dt) = 2 sin (100t + 90") volts....
Name: Section: Jan. 31, 2018 1. Consider the circuit shown in figure 1 (a) Write the mesh-current equations for the circuit. DO NOT SOLVE. (b) Write the node.voltage equations for the cireuit. DO NOT SOLVE 2. Consider the circuit shown in figure 2. The sinusoidal source is v,(04 sin (100t+90) volts (a) Transform the circuit to the frequency domain. (b) Use phasors with the mesh-current method to find the steady state expression for i(t). (c) Find the average power absorbed...
Questions 4-20.
Questions 4-20.
QUESTION 4 the output becomes The longer a signal is applied to the input of an integrator op amp, the a smaller b. larger QUESTION 5 the output becomes. The faster the voltage applied to the input of a differentiator changes, the a smaller . b. larger QUESTION 6 voltage than for a negative-going signal. A Schmitt trigger switching threshold for a positive-going input signal is at a a lesser . b.greater QUESTION 7 If a...
1 2
+
–
i(t)
C R
L
iT i(t)
iD
+
–
L C R
1. Analysis and design of a buck-boost converter: A buck-boost converter is illustrated in Fig. 1(a),
and a practical implementation using a transistor and diode is shown in Fig. 1(b).
+
(a)
Vg
v
Figure 1 Buck–boost converter
of Problem 1: (a) ideal converter
circuit, (b) implementation using
MOSFET and diode.
–
Q1
D1
(b) +
Vg
v
Page 2
iL
(t) + vL...
of an electromagnetic wave propagating in a vacuum is 65 x 10 Hz. See the table for problem 1 1) To what part of the electromagnetic spectrum does this wave a) blue light 2) The electromag a)perpendicular to b) parallel to the the magnetic field b) green light netic field of the electromagnetic wave is d) violet light c) antiparallel to the d) paralel to the wave velocity magnetic field magnetic field The speed of light in a medium is...
