A double acting hydraulic cylinder will extend when pressurized fluid is directed to Rod end of...

Question

Question

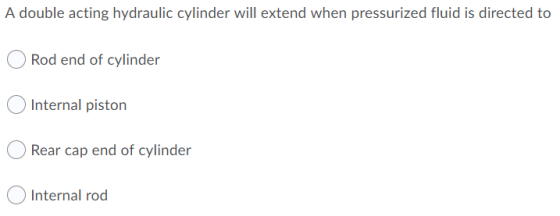

A double acting hydraulic cylinder will extend when pressurized fluid is directed to Rod end of cylinder Internal piston Rear

engineering Mechanical-Engineering

Answer 1

Answer #1

C.

Rear cap end of cylinder

Double acting cylinder have rod end and cap end.

It will extend when pressurised fluid is enter through rear cap end.

Hence correct answer will be option C.

Answer 2
