Question

Do Simulate a 4bit Ripple Carry adder in Simulink and generate the VHDL code to be implemented on DE2 board. Submit the VHDL

0 0
Add a comment Improve this question Transcribed image text
Answer #1


library IEEE;
use IEEE.STD_LOGIC_1164.ALL;

entity rc_adder is
port( a : in std_logic_vector(3 downto 0);
b :   in std_logic_vector(3 downto 0);
s : out std_logic_vector(3 downto 0);   -- 4 bit sum
   c :  out std_logic   -- carry out.
);
end rc_adder;

architecture Behavioral of rc_adder is


signal c0,c1,c2,c3 : std_logic := '0';
begin

--first full adder
s(0) <= a(0) xor b(0);  --sum calculation
c0 <= a(0) and b(0);   --carry calculation
--second full adder
s(1) <= a(1) xor b(1) xor c0;
c1 <= (a(1) and b(1)) or (a(1) and c0) or (b(1) and c0);
--third full adder
s(2) <= a(2) xor b(2) xor c1;
c2 <= (a(2) and b(2)) or (a(2) and c1) or (b(2) and c1);
--fourth(final) full adder
s(3) <= a(3) xor b(3) xor c2;
c3 <= (a(3) and b(3)) or (a(3) and c2) or (b(3) and c2);
--final carry assignment
c <= c3;
end Behavioral;

The test bench program used for testing the design is given below:
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;

--this is how entity for your test bench code has to be declared.
entity testbench is
end testbench;

architecture behavior of testbench is

signal a, b , s : std_logic_vector(3 downto 0) :=(others => '0');
signal c :  std_logic:='0';

begin
UUT : entity work.rc_adder port map(a ,b ,s ,c );
--definition of simulation process
tb : process
begin
a<="0010";
b<="1001";
wait for 2 ns;

a<="1010";
b<="0011";
wait for 2 ns;

a<="1000";
b<="0101";
wait for 2 ns;

a<="1010";
b<="0110";

wait;
end process tb;

end;

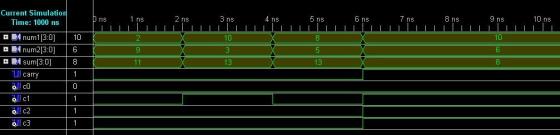

#RCA_waveform:

At the time of modifying code,we  assign a,b,s,c as num1,num2,sum,carry respectively.

here in wave form, a =>num1; b=>num2; s=>sum; c=> carry.

Current Simulation Time: 1000 ns pns 1 ns 2 ns 3 ns 4 ns 5 ns 6 ns 7 ns 8 ns 9 ns 10 ns 10 8 10 10 6 8 9 3 5 num1[3:0] num2(3
