Homework 3 DOF quarter car model،Car suspension system
Thanks if anyone can solve this question it is fast..

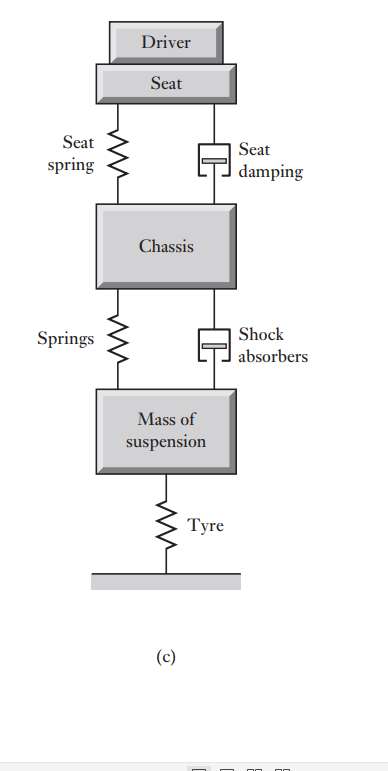

Model the vehicle suspension shown in Figure 17-3 (c) by selecting road displacement as input and driver seat displacement as output. Then, with the help of MATLAB software (simulink), simulate the system model and design appropriate values for springs and shock absorbers.
Homework Answers
Request Answer!
We need at least 9 more requests to produce the answer.
1 / 10 have requested this problem solution
The more requests, the faster the answer.
Figure 1 shows the simplified model of a quarter vehicle suspension. In Homework #1, we have...
Figure 1 shows the simplified model of a quarter vehicle suspension. In Homework #1, we have derived the equations of motion for the vehicle mass m. Now the vehicle is traveling on a wavy road at the constant velocity u. Use the dynamic model in Homework #1. z(t) v constant y = Asin ( 2 *) Figure 1 (a) Determine the most unfavorable speed v if the system is undamped, i.e.c0. (b) Derive the system response z(t) and plot the...
(40pts) The suspension system for one wheel of a pickup truck is illustrated in the following...
(40pts) The suspension system for one wheel of a pickup truck is illustrated in the following figure. The mass of the vehicle distributed on this wheel is mi and the mass of the wheel is m2. The suspension spring has a spring constant kı and the tire has a spring constant of k2. The damping constant of the shock absorber is b. Assume the truck's vertical displacement yi(t) is the output and the road surface profile x(t) is the input....
A quarter-car suspension model consisting of a spring and a damper is shown in Figure 1....
A quarter-car suspension model consisting of a spring and a damper is shown in Figure 1. An active suspension element produces an input force F. Draw a free-body diagram for the sprung mass m, and hence derive a differential equation relating the input force F to the sprung mass displacement x. (a) (5 marks) (b) Assuming a mass m-250kg, spring coefficient k 100Nm-1 and damping coefficient of c-50Nsm1, show that the transfer function from the input force F to the...
Solve the question in Matlab and please show Matlab code Consider a double Spring-Mass-Damper System as...
Solve the question in Matlab and please show Matlab code
Consider a double Spring-Mass-Damper System as shown in the figure below: U >F(t) A. Create a Simulink model to simulate the dynamics of the above system for the following parameter values: F(t) = Step input force of magnitude 5 N ml = 7 kg, b1 = 3 Nsec/m, kl = 4 N/m m2 = 3 kg, b2 = 1 Nsec/m, k2= 2 N/m B. Submit a snapshot of the Simulink...
3 and 4 , captures of (mat lab simulink) example like this i want , theres...
3
and 4 , captures of (mat lab simulink)
example like this i want , theres no force , please solve 3 also .
if you have any question ask.
Physical Setup along with system parameters: Design an automation suspension controller system for the car. A model of the car system is shown below and the road bumbs are assumed to be base cxciation, with Y(t) representing the the force 'F' transmitte to the car from road. In 1. Sr.No...
Additional Prob. 1: Consider a two-mass quarter-car model of a suspension system as shown in figure....
Additional Prob. 1: Consider a two-mass quarter-car model of a suspension system as shown in figure. The system properties are: m1 = 240 kg, m2 = 36 kg, k1 = 1.6 x 104 N/m, k2 = 1.6 x 105 N/m, C1 = 98 N-s/m a. Find equations of motion for the system. c. If y(t) is a unit step function, find the responses X1 and x between 0-10 s using Simulink. m m,
Summary: A car part manufacturing company currently produce a suspension assembly for Toyota Motor Corporation. Figure...
Summary: A car part manufacturing company currently produce a suspension assembly for Toyota Motor Corporation. Figure 1 shows the breakdown structure of the suspension assembly and Figure 2 shows the final assembly and how to fit into a car. Table 1 shows the name of components, part numbers and number of components in each suspension assembly. Figure 1. Breakdown structure of Suspension Assembly Figure 2. Suspension Assembly Number in Figure 1 Part number Part name Amount per assembly 1 PA-T15-001...
First, read the article on "The Delphi Method for Graduate Research." ------ Article is posted below...
First, read the article on "The Delphi Method for Graduate Research." ------ Article is posted below Include each of the following in your answer (if applicable – explain in a paragraph) Research problem: what do you want to solve using Delphi? Sample: who will participate and why? (answer in 5 -10 sentences) Round one questionnaire: include 5 hypothetical questions you would like to ask Discuss: what are possible outcomes of the findings from your study? Hint: this is the conclusion....
How can we assess whether a project is a success or a failure? This case presents...
How can we assess whether a project is a success or a
failure?
This case presents two phases of a large business transformation project involving the implementation of an ERP system with the aim of creating an integrated company. The case illustrates some of the challenges associated with integration. It also presents the obstacles facing companies that undertake projects involving large information technology projects. Bombardier and Its Environment Joseph-Armand Bombardier was 15 years old when he built his first snowmobile...
We conducted a comprehensive literature search on drones in conservation up to October 2nd 2018, in...
We conducted a comprehensive literature search on drones in conservation up to October 2nd 2018, in line with related studies [10,11,35]. All searches were done by the same person in English, mainly using Google Scholar. This was further complemented through reference harvesting, citation tracking, abstracts in conference programs, and author search, using Research Gate and Mendeley (see PRISMA Flowchart in Supplementary Figure S1 Checklist and list of studies reviewed in Table S1). We then removed duplicate and unrelated results. Finally,...
Figure 1 shows the simplified model of a quarter vehicle suspension. In Homework #1, we have derived the equations of motion for the vehicle mass m. Now the vehicle is traveling on a wavy road at the constant velocity u. Use the dynamic model in Homework #1. z(t) v constant y = Asin ( 2 *) Figure 1 (a) Determine the most unfavorable speed v if the system is undamped, i.e.c0. (b) Derive the system response z(t) and plot the...
(40pts) The suspension system for one wheel of a pickup truck is illustrated in the following figure. The mass of the vehicle distributed on this wheel is mi and the mass of the wheel is m2. The suspension spring has a spring constant kı and the tire has a spring constant of k2. The damping constant of the shock absorber is b. Assume the truck's vertical displacement yi(t) is the output and the road surface profile x(t) is the input....
A quarter-car suspension model consisting of a spring and a damper is shown in Figure 1. An active suspension element produces an input force F. Draw a free-body diagram for the sprung mass m, and hence derive a differential equation relating the input force F to the sprung mass displacement x. (a) (5 marks) (b) Assuming a mass m-250kg, spring coefficient k 100Nm-1 and damping coefficient of c-50Nsm1, show that the transfer function from the input force F to the...
Solve the question in Matlab and please show Matlab code
Consider a double Spring-Mass-Damper System as shown in the figure below: U >F(t) A. Create a Simulink model to simulate the dynamics of the above system for the following parameter values: F(t) = Step input force of magnitude 5 N ml = 7 kg, b1 = 3 Nsec/m, kl = 4 N/m m2 = 3 kg, b2 = 1 Nsec/m, k2= 2 N/m B. Submit a snapshot of the Simulink...
3
and 4 , captures of (mat lab simulink)
example like this i want , theres no force , please solve 3 also .
if you have any question ask.
Physical Setup along with system parameters: Design an automation suspension controller system for the car. A model of the car system is shown below and the road bumbs are assumed to be base cxciation, with Y(t) representing the the force 'F' transmitte to the car from road. In 1. Sr.No...
Additional Prob. 1: Consider a two-mass quarter-car model of a suspension system as shown in figure. The system properties are: m1 = 240 kg, m2 = 36 kg, k1 = 1.6 x 104 N/m, k2 = 1.6 x 105 N/m, C1 = 98 N-s/m a. Find equations of motion for the system. c. If y(t) is a unit step function, find the responses X1 and x between 0-10 s using Simulink. m m,
