Question

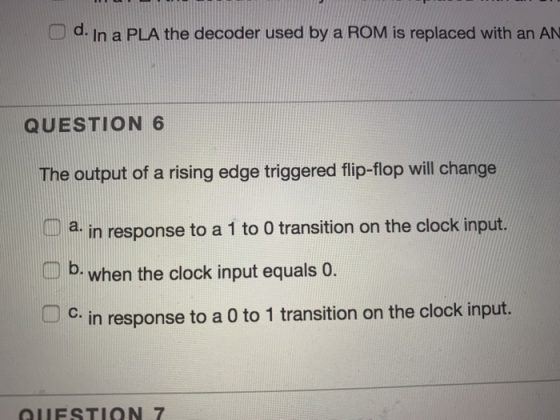

D d. In a PLA the decoder used by a ROM is replaced with an AN QUESTION 6 The output of a rising edge triggered flip-flop wil
0 0
Add a comment Improve this question Transcribed image text
Answer #1

Output of rising edge triggered flip flop changes (c) in position to a 0 to 1 transition on the clock input

Add a comment
Know the answer?
Add Answer to:
D d. In a PLA the decoder used by a ROM is replaced with an AN...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • 1. (10) Which of the following describes the operation of a positive edge-triggered D flip-lop? A...

    logic circuit 1. (10) Which of the following describes the operation of a positive edge-triggered D flip-lop? A. If both inputs are HIGH, the output will toggle. B. The output will follow the input on the leading edge of the clock. C. when both inputs are LOW, an invalid state exists. D. The input is toggled into the flip-flop on the leading edge of the clock and is passed to the output on the trailing edge of the clock. Answer...

  • 5.4 2um 4-34. Design a negative-edge-triggered flip-flop. The flip flop has three inputs; these are Data,...

    5.4 2um 4-34. Design a negative-edge-triggered flip-flop. The flip flop has three inputs; these are Data, Clock, and Enable. If, at the negative edge of the clock, the enable input equals to 0, then the state at Data input is stored in the flip-flop. If, at the negative edge of clock, Enable is in 1 state, then the current stored value in the flip-flop is held. Design the flip-flop using only SR latches, AND gates, and NOT gates. 4-34. Design...

  • 1. The D Flip-Flop ) Look for the datasheet of the 7474 D flip-flop and wire it on the breadboard...

    1. The D Flip-Flop ) Look for the datasheet of the 7474 D flip-flop and wire it on the breadboard making sure to supply 5V to both Preset and Clear. Utilize the function generator to provide a Clock signal of 1 Hz: i) Press AMPL and set value to 5 Vpp ii) Press FREQ and set value to 1 Hz ili) Press OFFSET and set value to 2.5 V This Clock signal will be the same for all circuits in...

  • ‏Design a double edge-triggered D flip-flop using multiplexers only. The output of the flip-flop Q should...

    ‏Design a double edge-triggered D flip-flop using multiplexers only. The output of the flip-flop Q should “sample” the value of the input D on both rising (+ve) and falling (-ve) edges of the clock CLK. Provide detailed solution and explanation.

  • Design a double edge-triggered D flip-flop. The output of the flip-flop Q should "sample" the value...

    Design a double edge-triggered D flip-flop. The output of the flip-flop Q should "sample" the value of the input D on both rising (+ve) and falling (-ve) edges of the clock CLK. Design an FSM counter that counts the sequence: 00, 11, 01, 10,00, 11, ..

  • Problem 7.9: The Qoutput of an edge-triggered D flip-flop is shown below in relation to the...

    Problem 7.9: The Qoutput of an edge-triggered D flip-flop is shown below in relation to the clock signal. Determine the input waveform on the D input that is required to produce this output if the flip-flop is a positive edge-triggered type. CLUபுபுப்பப்பட

  • Use the Quartus Prime Text Editor to implement a behavioral model of the D flip-flop described ab...

    Use the Quartus Prime Text Editor to implement a behavioral model of the D flip-flop described above in a file named d_flops.sv. Specify the D flip-flop’s module according to the interface specification given in the table below. Port Mode Data Type Size Description RST in logic 1-bit Active high asynchronous reset CLK in logic 1-bit Synchronizing clock signal EN in logic 1-bit Synchronous clock enable D in logic 1-bit Synchronous data input Q out logic 1-bit Current/present state Qbar out...

  • Done 01. When an inverter is placed between both inputs of an SR. flip-lop, the resulting flip-fo...

    digital system solve Q3andQ4 Done 01. When an inverter is placed between both inputs of an SR. flip-lop, the resulting flip-fop is a (a) JK flip-flop (b) T flip-lop (c) Master Slave JK flip-flop (d) D flip-flop 02. A D flip-flop utilizing a Positive-Giate-Triggered (PGT) Clock is in the CLEAR" stae Which of the following input actions will cause it to change states? NGT stands for Negative-Gate-Triggered (a) CLOCK-NGT, D-O (b) CLOCK-PGT, D- (c) CLOCK- NGT: D- (d) CLOCK- PGT,...

  • Answers are at the end of the chapter 1. If an S-R latch has a 1...

    Answers are at the end of the chapter 1. If an S-R latch has a 1 on the S input and a 0 on the R input and then the S input goes to 0, the latch will be (a) set (b) reset (c) invalid (d) clear 2. The invalid state of an S-R latch occurs when (c) S 1,R-1 (d) S-0, R-O 3. For a gated D latch, the output always equals the D input (a) before the enable...

  • QUESTION 7 A master slave flip flop behaves similarly to a clocked latch, except that the...

    QUESTION 7 A master slave flip flop behaves similarly to a clocked latch, except that the latches output can change only near the rising edge of the clock True False QUESTION 8 Assuming zero setup and hold times, clocked latches and flip-flops produce the same outputs as long as the inputs do not change while the clock is asserted True False QUESTIONS An edge-triggered D flip-flop requires more internal gates than a similar device constructed from a J-K master-slave flip...
