​the drawing shows a person (weightW= 596N, L1= 0.849m,L2= 0.408) doing push ups. find the normal force excerted by the on each hand and foot, assumming that the person holds this postion
ぐc L1 2 L

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

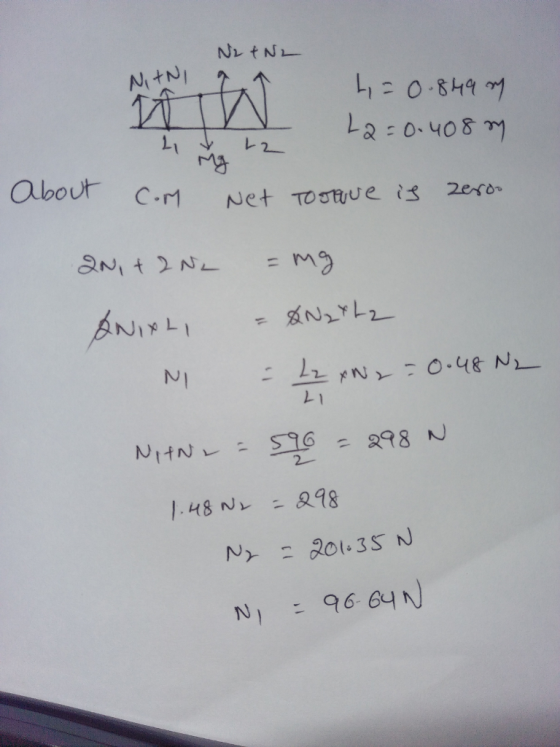

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
​the drawing shows a person (weightW= 596N, L1= 0.849m,L2= 0.408) doing push ups. find the normal...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • The drawing shows a person (weight W = 577 N, L1 = 0.826 m, L2 =...

    The drawing shows a person (weight W = 577 N, L1 = 0.826 m, L2 = 0.418 m) doing push-ups. Find the normal force exerted by the floor on each hand and each foot, assuming that the person holds this position. - I am super lost on this. I got 96.94N and 191.56N and it said it was wrong. :(

  • The figure shows a person whose weight is W = 694 N doing push-ups. Find the...

    The figure shows a person whose weight is W = 694 N doing push-ups. Find the normal force exerted by the floor on (a) each hand and (b) each foot, assuming that the person holds this position. leg=0.840m arm=0.410m

  • Ask Yor that The drawing shows a person (weight w the person holds this position. force...

    Ask Yor that The drawing shows a person (weight w the person holds this position. force on each hand force on each foot s74 N L1-0.842 rn, L2-0.406 m) d ng push-ups. rnd the normal force exerted by the foor oneach hand and euch foot, assur ng

  • The figure shows a person whose weight is W 700 N doing push-ups. Find the normal force exerted by the floor on (a)...

    The figure shows a person whose weight is W 700 N doing push-ups. Find the normal force exerted by the floor on (a) each hand and (b) each foot, assuming that the person holds this position. 0.410 m 0.840 m Units (a) Number Units (b) Number

  • QUESTION 2 The drawing shows a person mass-59 kg. doing push-ups. Find the force exerted by...

    QUESTION 2 The drawing shows a person mass-59 kg. doing push-ups. Find the force exerted by the floor on each foot, assuming that the person holds this position. Express your answer is Sl units with 3 or more significant figures 0.90 m 1.50 m QUESTION 3 A uniform lunch tray is being held in one hand, as the drawing illustrates. The mass of the tray is 0.11 kg. On the tray is a 1 kg plate of food and a...

  • Your answer is partially correct. Try again The figure shows a person whose weight is W...

    Your answer is partially correct. Try again The figure shows a person whose weight is W 512 N doing push-ups. Find the normal force exerted by the floor on (a) each hand and (b) each foot, assuming that the person holds this position. 0.840 m0.410 m UnitsTN (a) Numbe 84 UnitsTN (b) Number 172

  • Problem 10.38: Push-ups. 9 of 20 > A Review To strengthen his arm and chest muscles,...

    To strengthen his arm and chest muscles, an 87 kg athlete 2.0 m tall is doing a series of push-ups as shown in the figure below (Figure 1). His center of mass is 1.20 m from the bottom of his feet, and the centers of his palms are 30.0 cm from the top of his head.Part AFind the force that the floor exerts on each of his feet, assuming that both feet exert the same force.Part BFind the force that...

  • One end of a meter stick is pinned to a table, so the stick can rotate...

    One end of a meter stick is pinned to a table, so the stick can rotate freely in a plane parallel to the tabletop. Two forces, both parallel to the tabletop, are applied to the stick in such a way that the net torque is zero. The first force has a magnitude of 2.00 N and is applied perpendicular to the length of the stick at the free end. The second force has a magnitude of 6.00 N and acts...

  • QUESTION 1 A wrench is used to loosen a nut as shown below by applying a...

    QUESTION 1 A wrench is used to loosen a nut as shown below by applying a force 13 N. Determine the torque (magnitude and direction:+for CCW and for CW) about the nut joint Express your answer in Sl units with 3 or more significant figures 0.28 m QUESTION 2 The drawing shows a person mass 59 kg. doing push-ups. Find the force exerted by the floor on each foot assuming that the person holds this position Express your answer in...

  • Consult Interactive LearningWare 6.1 for background pertinent to this problem. The drawing shows a plane diving...

    Consult Interactive LearningWare 6.1 for background pertinent to this problem. The drawing shows a plane diving toward the ground and then climbing back upward. During each of these motions, the lift force L acts perpendicular to the displacement s, which has the same magnitude, 4.21 x 103 m, in each case. The engines of the plane exert a thrust T, which points in the direction of the displacement and has the same magnitude during the dive and the climb. The...
