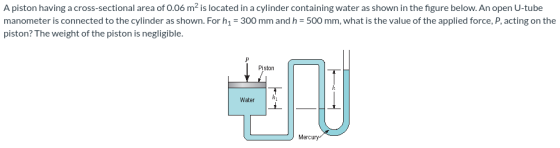

A piston having a
cross-sectional area of 0.06 m2 is located in a cylinder containing
water as shown in the figure below. An open U-tube manometer is
connected to the cylinder as shown. For h1 = 300 mm and h = 500 mm,
what is the value of the applied force, P, acting on the piston?
The weight of the piston is negligible.

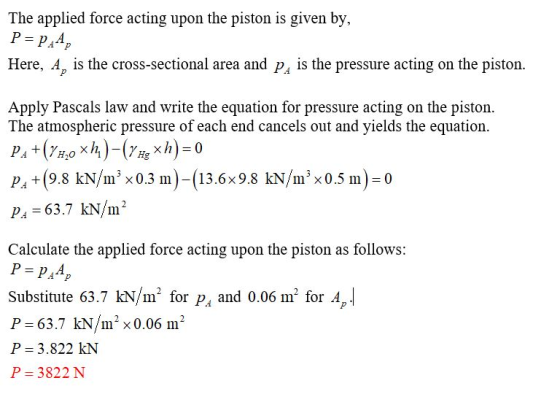

Homework Answers
Add Answer to:
A piston having a
cross-sectional area of 0.06 m2 is located in a cylinder containing
water...
