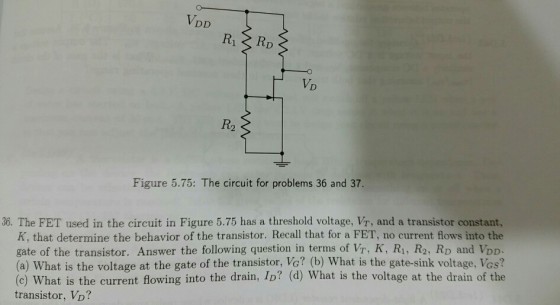

VD R2 Figure 5.75: The circuit for problems 36 and 37 36. The FET used in...
II) The characteristics of the MOSFET in figure la are shown in figure 1b. Use the characteristic...
II) The characteristics of the MOSFET in figure la are shown in figure 1b. Use the characteristics in figure 1b, not the equations in your textbook, to answer the following A) From figure lb estimate gm and ro for the FET in the saturation region. Include calculations or an explanation with your answer B Find the values for Re Rd. VDD and VGG so that zin- 100k, zout 5k, L 2 mA and Vds-5 C) Find the GAIN-vo/vi 2oUT Rg...
Please solve this Question Figure Q4 shows a common-source amplifier. Construct the ac equivalent circuit, then apply M...
Please solve this Question
Figure Q4 shows a common-source amplifier. Construct the ac equivalent circuit, then apply Miller's Theorem and hence show that the voltage gain is given as: where J-is the voltage gain bandwidth. R, = RD //RL and C-C,, + (I + g.Rjcgd」 State clearly any approximations or assumptions used in your analysis. The parameters above are defined as follows: gm is the transistor transconductance, Ce and Cet are the internal capacitances between the gate/source and gate/drain respectively...
V.+w Operation in the triode reglon Condition v. e Wov 20 Vos uov os os-V (2) p V, so onl+Pala Characteristics Same rel...
V.+w Operation in the triode reglon Condition v. e Wov 20 Vos uov os os-V (2) p V, so onl+Pala Characteristics Same relationships as for NMOS trasistos tCharacteristics: a CuGs- V,) ®os- } ip.C Replace .and NA with p,,and Nprespectively. V.V V, and yare negative. 2 wov ps For vos 2( -V) e Conditions for operation in the triode region ip lvi Q1. (10 points) For the following configuration of the given figure below, with the following parameters: VDD= +10...
Consider the circuit on Figure P3. The characteristics of transistor 04 are IVA 200 V, with...
Consider the circuit on Figure P3. The characteristics of transistor 04 are IVA 200 V, with VA denoting the Early Voltage, V 1V for threshold voltage, and k 16mA/V2 for transconductance parameter Before starting: What type of transistor is Q4 in Figure P3? Assuming 04 is in saturation, derive and calculate the amplifier's voltage gain Av- vQut/vsig knowing that a pC measurement of the drain voltage reveals Vo 2 V. Capacitors C1 and C2 (on Figure P3) can be assumed...
Consider the circuit shown below. Write a short analysis of whether or not it will work as designed. If you think that it won't work, discuss what changes you would make to the circuit to fi...
Consider the circuit shown below. Write a short analysis of whether or not it will work as designed. If you think that it won't work, discuss what changes you would make to the circuit to fix the problem(s). The curve of drain current versus gate to source voltage, Vos for the MOSFET is given for your reference on the next page. The maximum Drain to Source voltage of the MOSFET is 300 Volts and the maximum drain current is 5...
the Ebers-Moll VT = kB T/e. (c) Use your result from part (b) to find the...
the Ebers-Moll VT = kB T/e. (c) Use your result from part (b) to find the resistance Rg necessary to generate 7.5μΑ of current with 20μΑ of programming current. (programming 6. FET I-V Curves. [10 pts.] Consider the family of I- V curves for a field effect transistor (FET) shown below. (a) Are the curves shown for a JFET or or an en- hancement mode MOSFET? Explain briefly how you know. (b) Table values for the given gain-source volt- ages...
Score 2. (22 points) For the circuit in Figure 2, the transistor parameters are: 2 0,...
Score 2. (22 points) For the circuit in Figure 2, the transistor parameters are: 2 0, VN=2V, Ka-1mA/V2, all the capacitors are assumed to act as short circuits at the signal frequency (1) Calculate the Q-point (Vos. I Vos); (2) Sketch the small-signal equivalent circuit, you must label the polarities of the voltages and the direction of the current; (3) Determine the voltage gain A, vo/v (4) Determine the input resistance Ri and output resistance Ro V1 5 10 V...
2. Consider an N-channel MOSFET circuit where the gate and drain terminals are shorted to- gether...
Please help, and explain as much as possible. Thank
you!
2. Consider an N-channel MOSFET circuit where the gate and drain terminals are shorted to- gether2 as shown in Figre 2. Assume that the MOSFET has trans-conductance parameter of gm = 0.5mA/V and the threshold voltage of 0.7V (a) Identify in which region the n-channel MOSFET is operating (Triode region or Saturation region)? (b) Write MATLAB code to compute the drain current for the following gate-to-source voltage, Vcs Ves-VDs 0,1,2,3,4,5,6,7...
Part "c" Please! Consider the circuit below. Assume that the only inductance of interest is the...
Part "c" Please!
Consider the circuit below. Assume that the only inductance of interest is the load inductor L = 15mH connected to the output terminal. The resistors have the following values: R1 = 5kN, R2 = 2kN, R3 = 0.1kN, and RI, = 10kN. The supply voltage is Vs = 15V. Vs R2 R, vo R1 R3 Figure 6-1 It is known that the input voltage vị can be decomposed into two parts, a constant Vị and a small...
1. Redraw the circuit shown in Figure 1 so that it looks like the circuit shown...
1. Redraw the circuit shown in Figure 1 so that it looks like the circuit shown in Figure 2. The functionality of both circuits must be identical. This means that the voltage drop across RL should be the same in both circuits and that the current flowing through Ri should be the same in both circuits Hence, express Vth and Rth in terms of Vo and Ri, R2. Figure 2 is called the Thévinin equivalent of Figure 1 and the...
II) The characteristics of the MOSFET in figure la are shown in figure 1b. Use the characteristics in figure 1b, not the equations in your textbook, to answer the following A) From figure lb estimate gm and ro for the FET in the saturation region. Include calculations or an explanation with your answer B Find the values for Re Rd. VDD and VGG so that zin- 100k, zout 5k, L 2 mA and Vds-5 C) Find the GAIN-vo/vi 2oUT Rg...
Please solve this Question
Figure Q4 shows a common-source amplifier. Construct the ac equivalent circuit, then apply Miller's Theorem and hence show that the voltage gain is given as: where J-is the voltage gain bandwidth. R, = RD //RL and C-C,, + (I + g.Rjcgd」 State clearly any approximations or assumptions used in your analysis. The parameters above are defined as follows: gm is the transistor transconductance, Ce and Cet are the internal capacitances between the gate/source and gate/drain respectively...
V.+w Operation in the triode reglon Condition v. e Wov 20 Vos uov os os-V (2) p V, so onl+Pala Characteristics Same relationships as for NMOS trasistos tCharacteristics: a CuGs- V,) ®os- } ip.C Replace .and NA with p,,and Nprespectively. V.V V, and yare negative. 2 wov ps For vos 2( -V) e Conditions for operation in the triode region ip lvi Q1. (10 points) For the following configuration of the given figure below, with the following parameters: VDD= +10...
Consider the circuit on Figure P3. The characteristics of transistor 04 are IVA 200 V, with VA denoting the Early Voltage, V 1V for threshold voltage, and k 16mA/V2 for transconductance parameter Before starting: What type of transistor is Q4 in Figure P3? Assuming 04 is in saturation, derive and calculate the amplifier's voltage gain Av- vQut/vsig knowing that a pC measurement of the drain voltage reveals Vo 2 V. Capacitors C1 and C2 (on Figure P3) can be assumed...
Consider the circuit shown below. Write a short analysis of whether or not it will work as designed. If you think that it won't work, discuss what changes you would make to the circuit to fix the problem(s). The curve of drain current versus gate to source voltage, Vos for the MOSFET is given for your reference on the next page. The maximum Drain to Source voltage of the MOSFET is 300 Volts and the maximum drain current is 5...
the Ebers-Moll VT = kB T/e. (c) Use your result from part (b) to find the resistance Rg necessary to generate 7.5μΑ of current with 20μΑ of programming current. (programming 6. FET I-V Curves. [10 pts.] Consider the family of I- V curves for a field effect transistor (FET) shown below. (a) Are the curves shown for a JFET or or an en- hancement mode MOSFET? Explain briefly how you know. (b) Table values for the given gain-source volt- ages...
Score 2. (22 points) For the circuit in Figure 2, the transistor parameters are: 2 0, VN=2V, Ka-1mA/V2, all the capacitors are assumed to act as short circuits at the signal frequency (1) Calculate the Q-point (Vos. I Vos); (2) Sketch the small-signal equivalent circuit, you must label the polarities of the voltages and the direction of the current; (3) Determine the voltage gain A, vo/v (4) Determine the input resistance Ri and output resistance Ro V1 5 10 V...
Please help, and explain as much as possible. Thank
you!
2. Consider an N-channel MOSFET circuit where the gate and drain terminals are shorted to- gether2 as shown in Figre 2. Assume that the MOSFET has trans-conductance parameter of gm = 0.5mA/V and the threshold voltage of 0.7V (a) Identify in which region the n-channel MOSFET is operating (Triode region or Saturation region)? (b) Write MATLAB code to compute the drain current for the following gate-to-source voltage, Vcs Ves-VDs 0,1,2,3,4,5,6,7...
Part "c" Please!
Consider the circuit below. Assume that the only inductance of interest is the load inductor L = 15mH connected to the output terminal. The resistors have the following values: R1 = 5kN, R2 = 2kN, R3 = 0.1kN, and RI, = 10kN. The supply voltage is Vs = 15V. Vs R2 R, vo R1 R3 Figure 6-1 It is known that the input voltage vị can be decomposed into two parts, a constant Vị and a small...
1. Redraw the circuit shown in Figure 1 so that it looks like the circuit shown in Figure 2. The functionality of both circuits must be identical. This means that the voltage drop across RL should be the same in both circuits and that the current flowing through Ri should be the same in both circuits Hence, express Vth and Rth in terms of Vo and Ri, R2. Figure 2 is called the Thévinin equivalent of Figure 1 and the...
