Homework Answers
current permitted diaode is forward biased and current prohibited diode is reverse biased
so circuit (a) is reverse biased
circuit (b) is forward biased
Add Answer to:

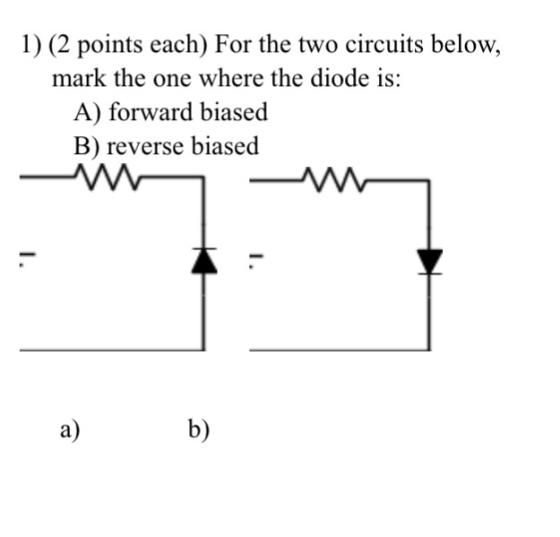

For the two circuits below, mark the one where the diode is: A) forward biased B)...
