Homework Answers
Solution:
When the branch is taken then the number of cycles = 0.22 * (0.8 * 3 + 0.2 * 1)
= 0.572 cycle
rest 78% will take 1 cycleso, 0.78
Total = 0.572 + 0.78 = 1.352 cycle
I hope this helps if you find any problem. Please comment below. Don't forget to give a thumbs up if you liked it. :)
Add Answer to:

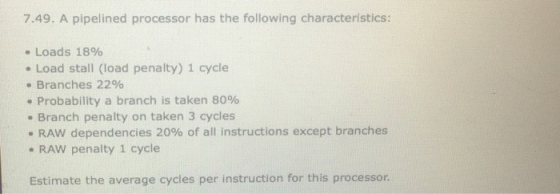

7.49. A pipelined processor has the following characteristics: - Loads 18% . Load stall (load penalty)...
