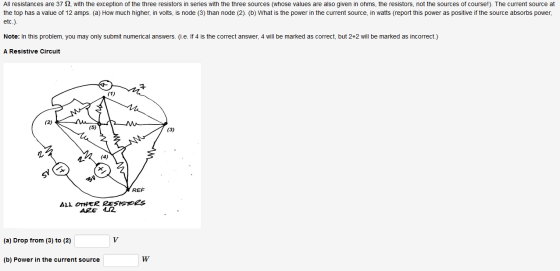

All resistances are 37 12, with the exception of the three resistors in series with the...
Four resistors are connected purely in parallel to a 7 volt battery. Three of the resistors...
Four resistors are connected purely in parallel to a 7 volt
battery. Three of the resistors are 3 ohms, 7 ohms, and 12 ohms,
but the fourth is not initially known. The current out of the
battery is 9 amps. What is the power dissipated from the fourth,
unknown resistor, in Watts?
Four resistors are connected purely in parallel to a 7 volt battery. Three of the resistors are 3 ohms, 7 ohms, and 12 ohms, but the fourth is...
5) Four resistors are connected purely in series to a 35 volt battery. Three of the...
5) Four resistors are connected purely in series to a 35 volt battery. Three of the resistors are 3 ohms, 8 ohms, and 12 ohms, but the fourth is not initially known. The power produced by the battery is 27 Watts. What is the power dissipated from the fourth, unknown resistor, in Watts?
Rs (in Ohms): RL (in Ohms): ILmax (in Amps): ILmin (in Amps): 1) The resistances of...
Rs (in Ohms):
RL (in Ohms):
ILmax (in Amps):
ILmin (in Amps):
1) The resistances of commercially-available discrete resistors are restricted to particular sets. For example, the available values of resistors with 10% tolerance are selections from the E12 set multiplied by a power of ten from 100 through 10s. The E12 set is: E12-10,12, 15, 18,22,27,33,39,47,56,68, 82) Thus, you can buy 10% resistors with a nominal resistance of 3300 or 33M. but not 350n. Furthermore, the tolerance a 10%...
In circuit 1, four resistors are connected purely in parallel to a battery. Three resistors are...
In circuit 1, four resistors are connected purely in parallel to a battery. Three resistors are unknown and one of the resistors is 6 Ohms. In circuit 2, the resistor whose resistance is known (6 Ohms is removed from the circuit and the other three resistors are connected purely in parallel to the same battery. The power output of the battery in circuit 1 is 5.1 Watts more than the power output of the battery in circuit 2. What is...
Three resistors having resistances of 4.0 ohms, 6.0 ohms , and 10.0 ohms are connected in...
Three resistors having resistances of 4.0 ohms, 6.0 ohms , and 10.0 ohms are connected in parallel. If the combination is connected in series with an ideal 12-V battery and a 2.0 ohms- resistor, what is the current through the 10.0 ohms resistor? a- 6.4A b- 16A c-0.59A d-11.2
In the circuit below, V1 = 2 Volts, V2 = 10 Volts, V3 = 46 Volts, V4 =3 Volts, and R3 = 5 Ohms
In the circuit below, V1 = 2 Volts, V2 = 10 Volts, V3 = 46 Volts, V4 =3 Volts, and R3 = 5 Ohms. Battery 1 (V1) is chosen to the guess the initial current directions as discussed in the procedure in the Powerpoint and in class and main current is the current through V1, current 1 is the current through V2, and current 2 is the current through battery 3. If the correct loop equations are solved correctly, the...
Three resistors having resistances of R1 = 1.71 ? , R2 = 2.50 ? , and...
Three resistors having resistances of R1 = 1.71 ? , R2 = 2.50 ? , and R3 = 4.95 ? , are connected in parallel to a 28.3 V battery that has negligible internal resistance. A)Find the equivalent resistance of the combination. B)Find the current in each resistor. Answer in the order indicated. Separate your answers using commas. Express your answers in amperes to three significant figures. IR1 IR2 IR3 C) Find the total current through the battery. Express your...
QUESTION 1 5 points Save Answer A resistor R = 2k Ohms has a voltage V...
QUESTION 1 5 points Save Answer A resistor R = 2k Ohms has a voltage V = 15 Volts. What is the current I through the resistor? Express your answer in mA. QUESTION 2 5 points Save Answer Three resistors are connected in series: R1 10k Ohms, R2 = 17k Ohms, R3 = 32k Ohms. A DC voltage source ( Volts) is connected across the three resistors. Determine the current I in mA. 7 QUESTION 3 5 points Save Answer...
R1 R3 R2 R4 W The circuit in the diagram contains one battery and four resistors,...
R1 R3 R2 R4 W The circuit in the diagram contains one battery and four resistors, labeled 1 through 4. ?Which of the following is true about the way that the circuit elements are arranged Resistors 1 and 2 are in parallel while resistors 3 and 4 are in series Resistors 1 and 4 are in parallel while resistors 2 and 3 are in series Resistors 1 and 4 are in series, while resistors 2 and 3 are in parallel...
(8 points) In the quitessential electric power system in the figure, a voltmeter reads the same...
(8 points) In the quitessential electric power system in the figure, a voltmeter reads the same at the source and at the load, 125 volts. At the source, an ammeter reads 40 amps. The source sees a inductive circuit. The cable (feeder) has a resistance of 0.0631302 ohms and a reactance of 1.2046 ohms. (a) What is the power factor angle, in degrees, at the source; (b) What is the active power delivered by the source; (C) What is the...
Four resistors are connected purely in parallel to a 7 volt
battery. Three of the resistors are 3 ohms, 7 ohms, and 12 ohms,
but the fourth is not initially known. The current out of the
battery is 9 amps. What is the power dissipated from the fourth,
unknown resistor, in Watts?
Four resistors are connected purely in parallel to a 7 volt battery. Three of the resistors are 3 ohms, 7 ohms, and 12 ohms, but the fourth is...
Rs (in Ohms):
RL (in Ohms):
ILmax (in Amps):
ILmin (in Amps):
1) The resistances of commercially-available discrete resistors are restricted to particular sets. For example, the available values of resistors with 10% tolerance are selections from the E12 set multiplied by a power of ten from 100 through 10s. The E12 set is: E12-10,12, 15, 18,22,27,33,39,47,56,68, 82) Thus, you can buy 10% resistors with a nominal resistance of 3300 or 33M. but not 350n. Furthermore, the tolerance a 10%...
In circuit 1, four resistors are connected purely in parallel to a battery. Three resistors are unknown and one of the resistors is 6 Ohms. In circuit 2, the resistor whose resistance is known (6 Ohms is removed from the circuit and the other three resistors are connected purely in parallel to the same battery. The power output of the battery in circuit 1 is 5.1 Watts more than the power output of the battery in circuit 2. What is...
QUESTION 1 5 points Save Answer A resistor R = 2k Ohms has a voltage V = 15 Volts. What is the current I through the resistor? Express your answer in mA. QUESTION 2 5 points Save Answer Three resistors are connected in series: R1 10k Ohms, R2 = 17k Ohms, R3 = 32k Ohms. A DC voltage source ( Volts) is connected across the three resistors. Determine the current I in mA. 7 QUESTION 3 5 points Save Answer...
R1 R3 R2 R4 W The circuit in the diagram contains one battery and four resistors, labeled 1 through 4. ?Which of the following is true about the way that the circuit elements are arranged Resistors 1 and 2 are in parallel while resistors 3 and 4 are in series Resistors 1 and 4 are in parallel while resistors 2 and 3 are in series Resistors 1 and 4 are in series, while resistors 2 and 3 are in parallel...
(8 points) In the quitessential electric power system in the figure, a voltmeter reads the same at the source and at the load, 125 volts. At the source, an ammeter reads 40 amps. The source sees a inductive circuit. The cable (feeder) has a resistance of 0.0631302 ohms and a reactance of 1.2046 ohms. (a) What is the power factor angle, in degrees, at the source; (b) What is the active power delivered by the source; (C) What is the...
