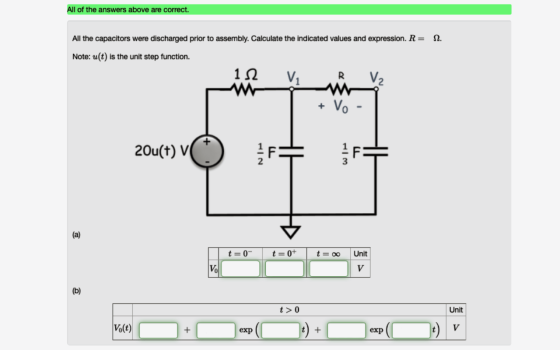

How to solve for the voltage Vo across a variable resistor R in a circuit with 2 capacitors that initially start with 0V and charge up to 20V?
Capacitors were discharged prior to assembly. Calculate the indicated values and expression R=? Note: u(t) is the unit step function.
It would be very helpful is someone can solve for this, or at least say the correct way to set it up? Thanks!

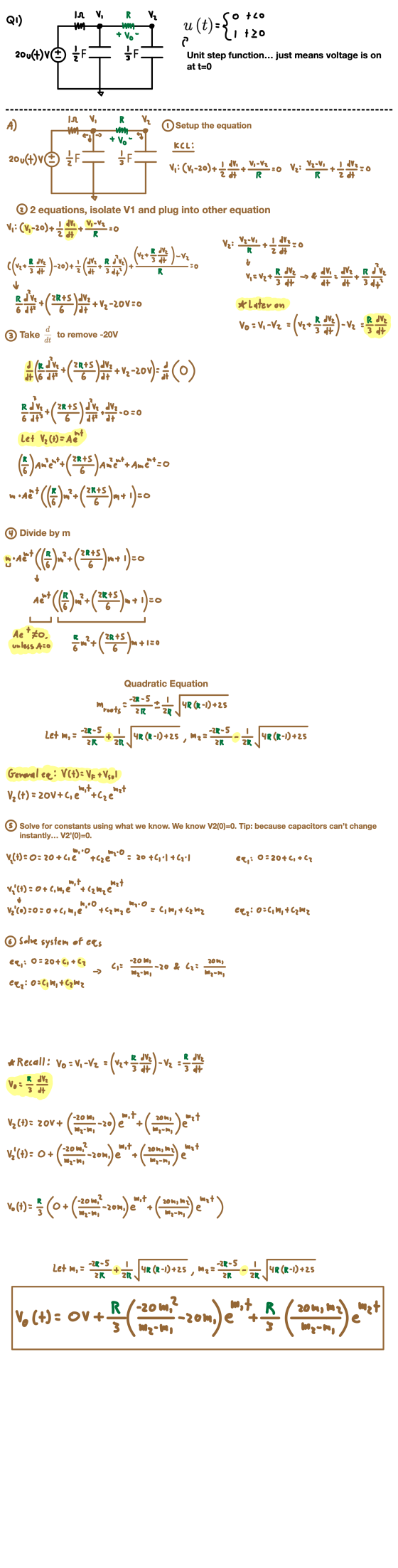

Homework Answers
Add Answer to:
