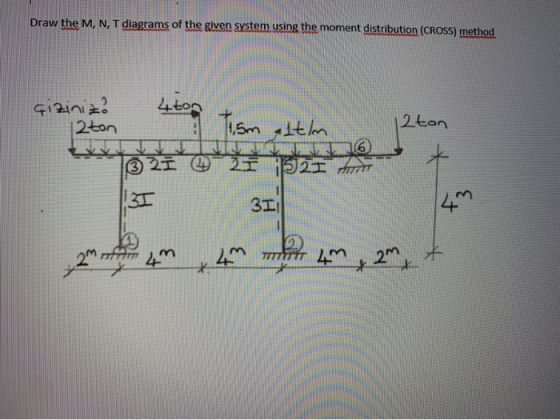

Draw the M, N, T diagrams of the given system using the moment distribution (CROSS) method...

Question

Question

engineering Civil-Engineering

Answer 1

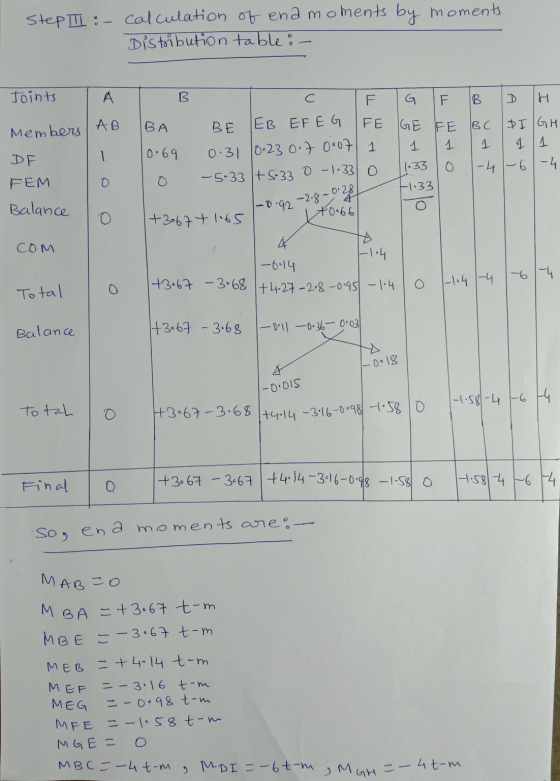

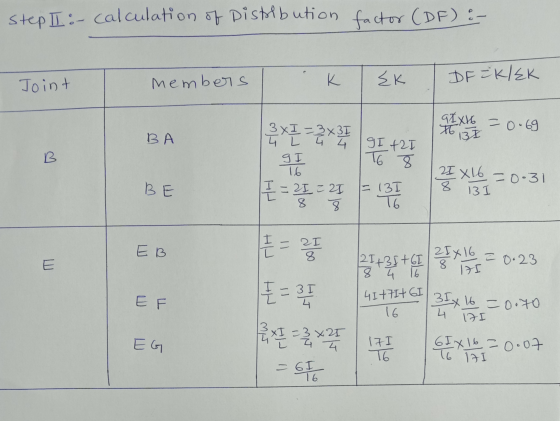

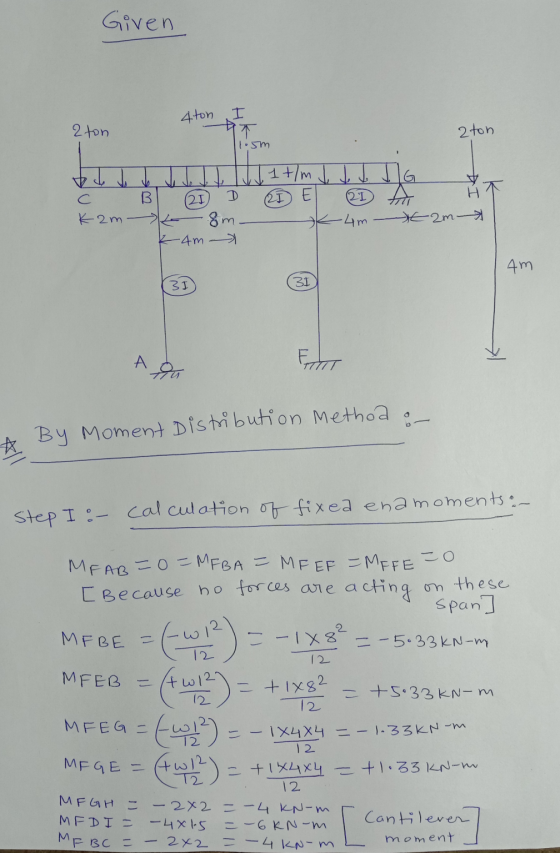

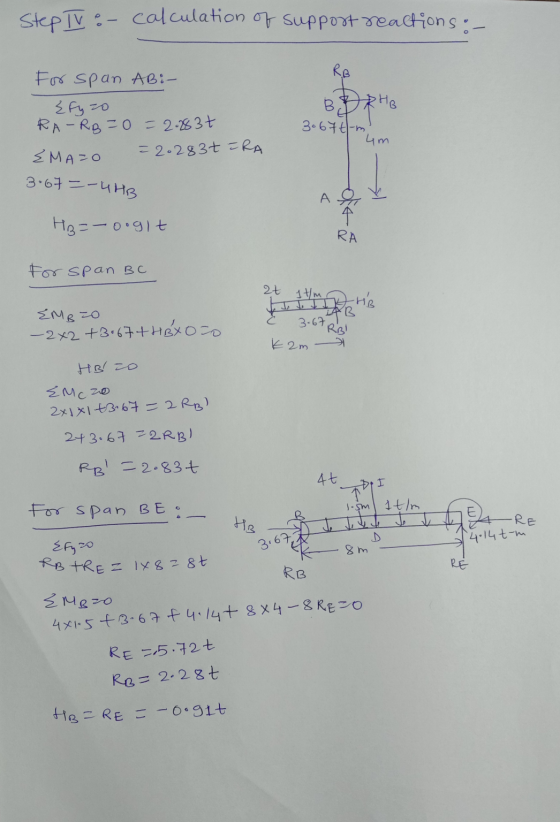

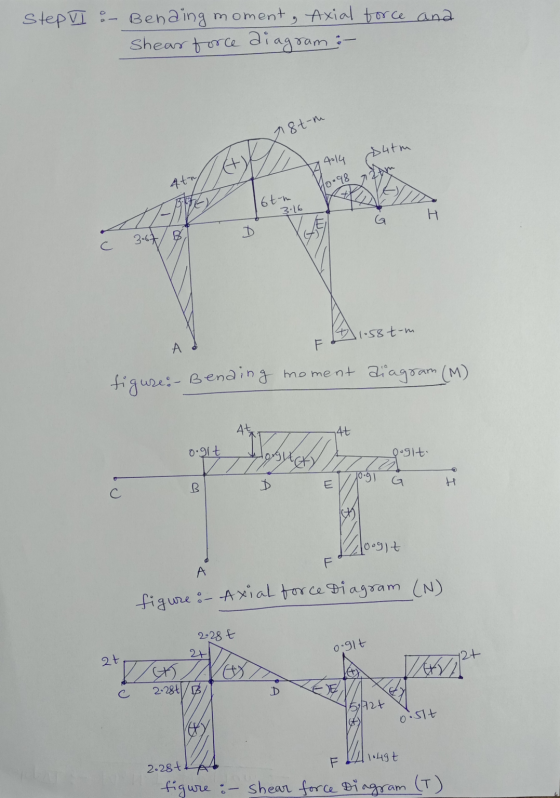

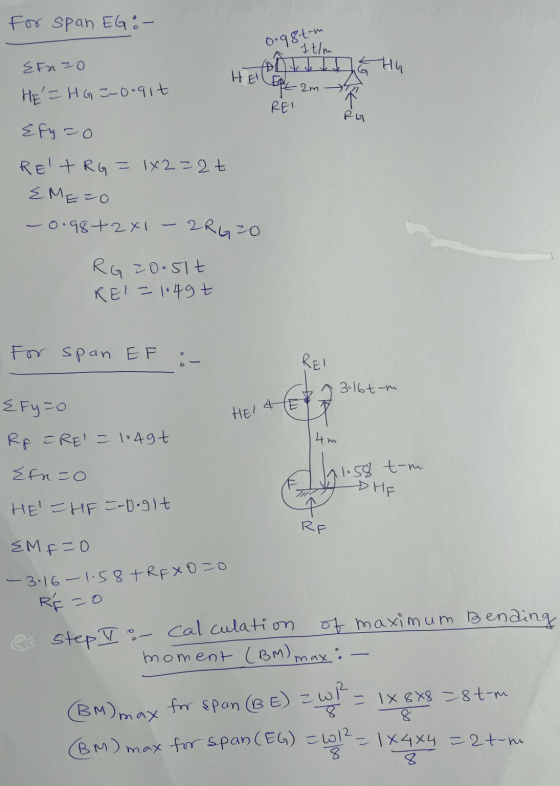

Answer #1

Answer 2
