Two boxes sit side-by-side on a smooth horizontal surface. The lighter box has a mass of...

Two boxes sit side-by-side on a smooth horizontal surface. The lighter box has a mass of 5.13 kg, the heavier box has a mass of 7.24 kg. Calculate the contact force between these boxes when a horizontal force of 5.00 N is applied to the light box.

Calculate the contact force if the 5.00 N force is applied to the heavy box instead.

science physics

Add a comment Improve this question Transcribed image text

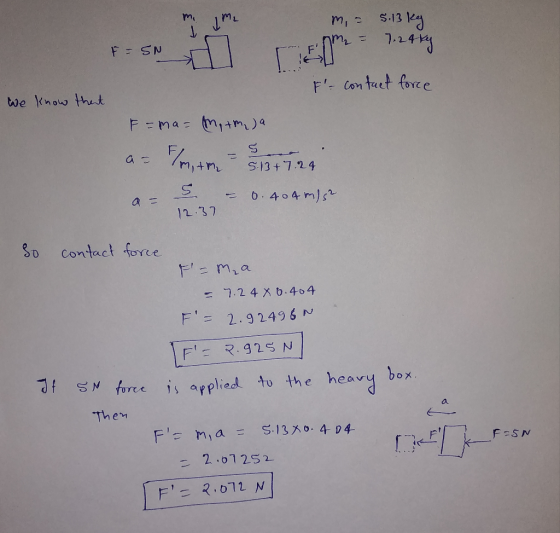

Answer 1

Answer #1

Add a comment

Answer 2
