Perform using DeMorgan’s Law on this expression, but do not reduce. [ (A’B + 1)(CD +...

Question

Question

Perform using DeMorgan’s Law on this expression, but do not reduce.

[ (A’B + 1)(CD + E’) + F(G’ + 0) + H ]’

engineering Electrical-Engineering

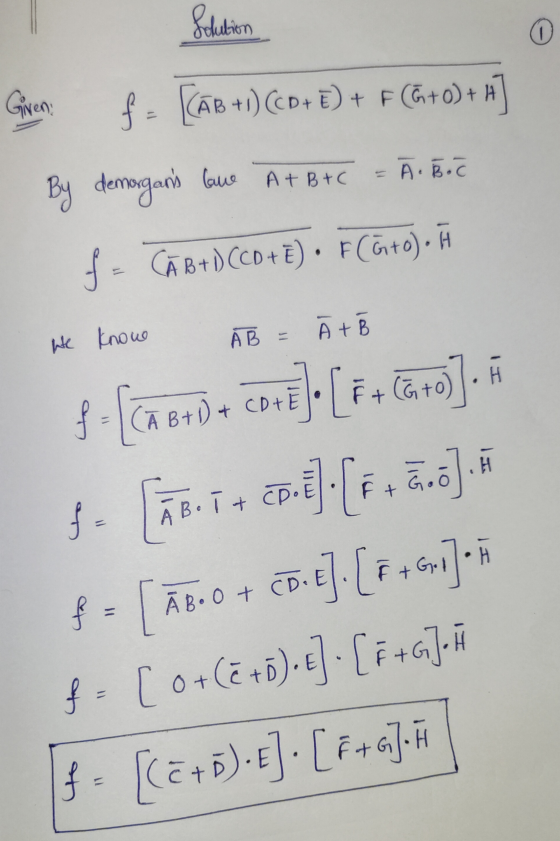

Answer 1

Answer #1

Answer 2
