How do I design a 3-bit down counter from 6 to 0 using a 7 segment display .The counting needs to wrap around to its lowest digit.With my situation I have a 2 display segment and not a 1 display segment. Am using a 74LS 112A DUAL J-K DUAL J-K FLIP FLOPS.But I need to have three flip flops to my 7 Display segment.
The truth table for the counter design is as follows

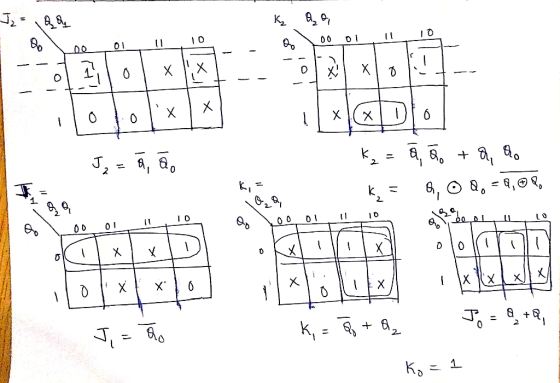

Simplifying using K map, we get

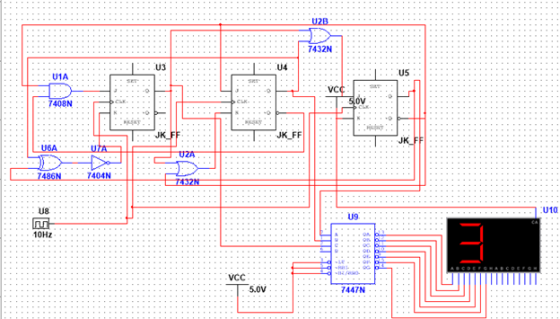

The final circuit diagram will be. I have used a 7447 bcd to seven segment decoder and a common anode seven segment display
