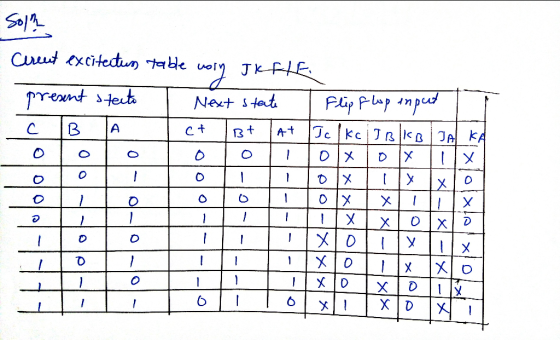

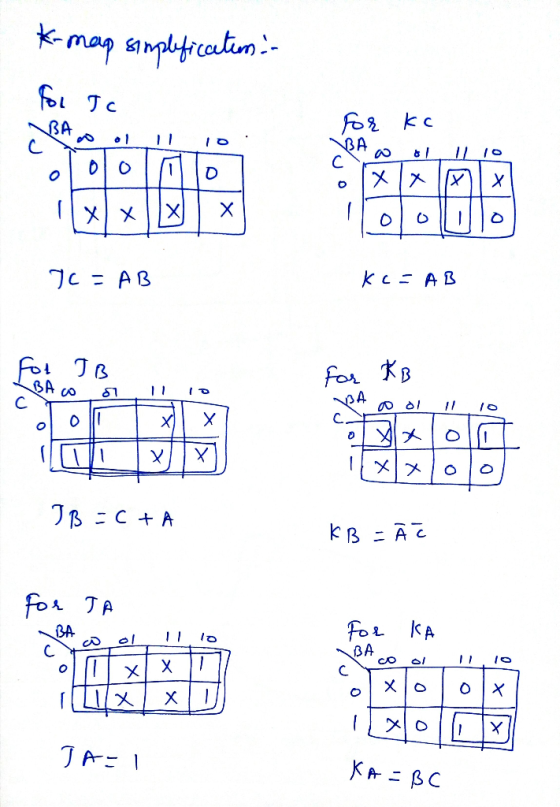

Design a 3-bit counter with counting sequence of 1, 3, 7, 2. Note: Use the symbol in order of CBA.

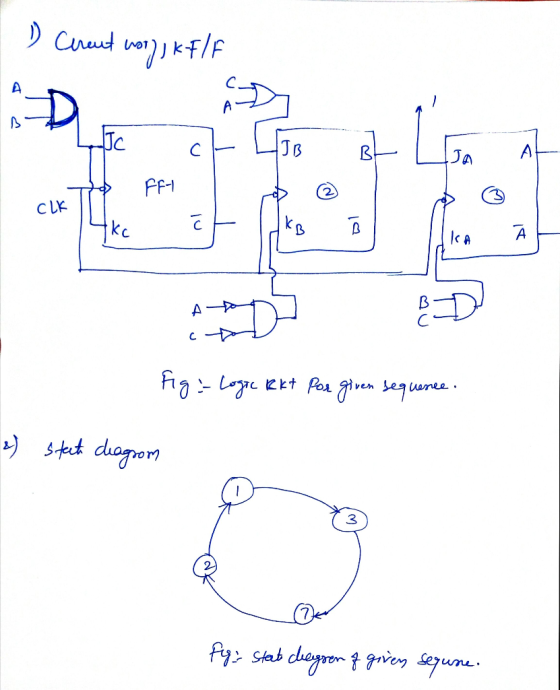

(1) Draw the resulting circuit using JK-type flip flops.
(2) Draw the complete state diagram corresponding to your circuit.
Design a 3-bit counter with counting sequence of 1, 3, 7, 2. Note: Use the symbol...
Using S-R flip-flops, design a 3-bit counter (C,B,A) with the repeating binary counting sequence: 1, 3, 2, 6, 7, 5, 4. - Show the circuit's state table with the present-state entries in ascending order, which should have the present state (t), next state (t+1), and flip-flop inputs. - Find the flip-flop input equations for RC, RB, and RA in Product of Sums form.
Design a self-starting counter that has a normal counting sequence : 3, 7,5,0,2, and repeat. Direct all illegal states to the state 5. (a) Use T flip-flops (b) Use D flip-flops (PLEASE USING CBA )
(b)(i) Using T flip-flop as main components, design a 3-bit synchronous counter that perform counting as the following sequence 0,2,4,6,1,3,5,7 then repeats (its sequence) [20 marks] (ii) Draw a complete circuit to show how the T flip-flops are interconnected and label it appropriately. Also show how the counter can be asynchronous reset. [5 marks] (iii) Draw a timing diagram for at least four clock cycles [8 marks)
In this part, design a counter with a specific counting sequence (counter with irregular sequence) as described in Table 2 below by using positive edge triggered D flip-flops. N=8, Counting sequence 8 0, 1, 7, 5, 3, 6, 4, 2, … (repeat)
Design a 5-bit binary counter using JK flip flops. Draw the flip-flop circuit diagram, the state graph, the timing diagram, the truth table (with clk pulse) and the state table (with present and next states).
3. Design a counter with the following repeated binary sequence: 0,1,2,4,6. Use D flip-flop. 4. Design a counter to count with T flip-flops that goes through the following binary repeated sequence: 0,1,3,7,6,4. Find out the counter response towards the unused state. Illustrate the response with a state diagram. 5. Design a mod-7 counter (repeat binary sequence: 0,1,2,3,4,5,6) use JK flip-flop.
1) Design a synchronous 3-bit binary UP/DOWN counter uses the following counting pattern 10.2.3.7.6.40.1.3...) the counter will count in this pattern indefinitely when the input X is equal to 1. When the input the counter will reverse direction and count in the opposite pattern 0. 4 7310) Complete the state diagram, transition table, New state s and solve for the recitation equations for flipflops that will perform this function. (You do not need to draw the flip-flops Use the state...
Use S-R flip-flops to design a 3-bit counter (C, B, A) with the repeating binary counting sequence: 1, 3, 2, 6, 7, 5, 4. Show clearly the following: (a) The circuit's state table with the present-state entries in ascending order. Present State (t) Next State (t+1) Flip-flop Inputs с B A m с B A Sc Rc SB RE SA RA Required format of the state table in Problem 1(a). Show table grid lines and align all entries per column....
Its logic design
my sequence is 127605
i need help with all this pages please and thank you
27 60 Experiment 4 Six-State Up-Down Counter 1 Objective To become familiar with the design procedures of a counter, which are applicable to the design of other synchronous sequential circuits. 2 Problem description A six-state up-down counter is to be designed. Three flip-flops with outputs Q2,Qi and Qo are required in the design. As shown in Figure 1, the counter is initialized...
Design a 4-bit binary up counter (like the following state diagram) using JK flip flops. State diagram. 0000 0001 11111 (a) Draw the state table with the input values for J K flip flops(b) Simplify the input equations by K map (c) Draw the logic diagram
