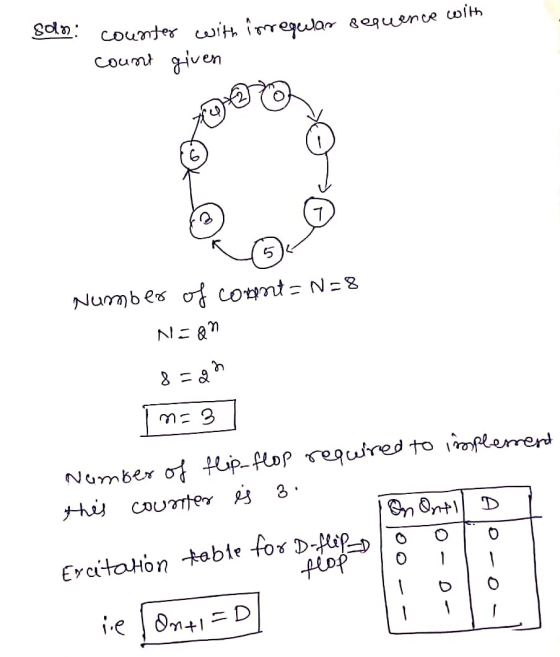

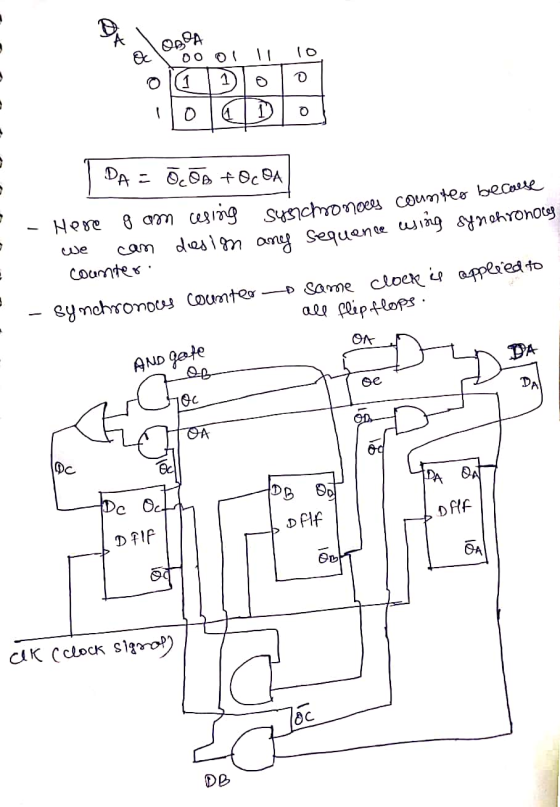

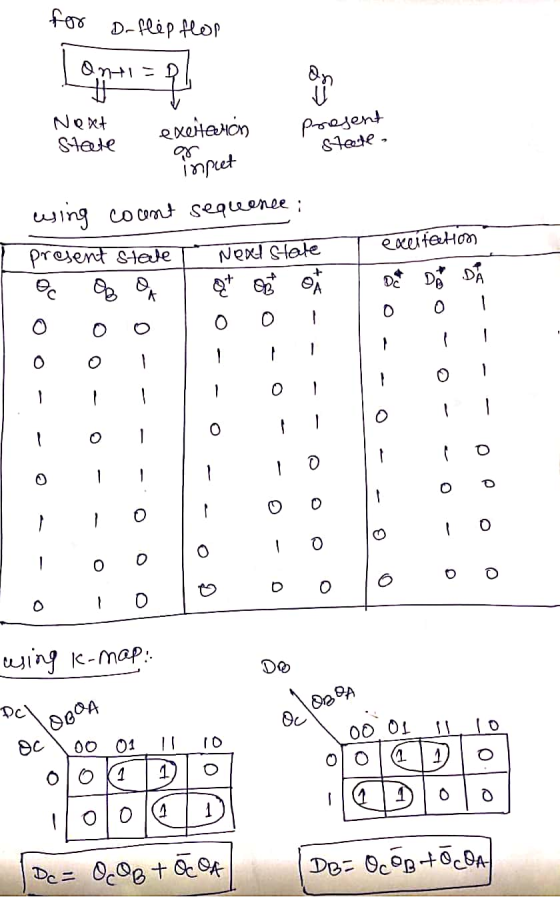

In this part, design a counter with a specific counting sequence (counter with irregular sequence) as described in Table 2 below by using positive edge triggered D flip-flops.
N=8,
Counting sequence
8
0, 1, 7, 5, 3, 6, 4, 2, … (repeat)
In this part, design a counter with a specific counting sequence (counter with irregular sequence) as...
Design a self-starting counter that has a normal counting sequence : 3, 7,5,0,2, and repeat. Direct all illegal states to the state 5. (a) Use T flip-flops (b) Use D flip-flops (PLEASE USING CBA )
Design a non-sequential synchronous counter using a positive
edge triggered JK Flip Flops for the following output
0?2?3?5?4?7?6?0
Design a non-sequential synchronous counter using positive edge triggered JK Flip Flops for the following output 0 rightarrow 2 rightarrow 3 rightarrow 5 rightarrow 4 rightarrow 7 rightarrow 6 rightarrow 0
a counter to display the following sequence: 4,5,3,6, flip-flops in your design. Display the output using a 7-segment display. 1. Design 2, 7, 1, 0, and then repeat. Use JK
a counter to display the following sequence: 4,5,3,6, flip-flops in your design. Display the output using a 7-segment display. 1. Design 2, 7, 1, 0, and then repeat. Use JK
9) Using JK flip flops and in the space below, design a synchronous counter that counts up from 0 to 5 and recycles to 0. (Positive edge triggered, PRE & CLR active low) Show all connections except the power and ground inputs to the flip flops.
Using S-R flip-flops, design a 3-bit counter (C,B,A) with the repeating binary counting sequence: 1, 3, 2, 6, 7, 5, 4. - Show the circuit's state table with the present-state entries in ascending order, which should have the present state (t), next state (t+1), and flip-flop inputs. - Find the flip-flop input equations for RC, RB, and RA in Product of Sums form.
Design a 3-bit counter with counting sequence of 1, 3, 7, 2. Note: Use the symbol in order of CBA. (1) Draw the resulting circuit using JK-type flip flops. (2) Draw the complete state diagram corresponding to your circuit.
Design a clocked synchronous counter with output sequence: 1, 3, 5,7, 9,11, 13, 15, 14, 12, 10,8, 6,4, 2, 0, 1,.. using Enabled D Flip-Flops. Show the characteristic and excitation equations of the Flip-Flops, as well as the state-transition table and the logic diagram of the counter.
3. Design a counter with the following repeated binary sequence: 0,1,2,4,6. Use D flip-flop. 4. Design a counter to count with T flip-flops that goes through the following binary repeated sequence: 0,1,3,7,6,4. Find out the counter response towards the unused state. Illustrate the response with a state diagram. 5. Design a mod-7 counter (repeat binary sequence: 0,1,2,3,4,5,6) use JK flip-flop.
14?
14. Design a cyclic counter that produces the binary sequence 0, 2, 3,1. o..if the control signal X is 0 but produces the binary sequence 0, 1,3,2.0, if the control signal X is1.Use D flip-flops. (a) Draw the state diagram; (6 points (b) Draw the input, present state-next state, excitation table: (6 points) (c) Derive the minimal SOP expressions for the D inputs of the flip-flops using K-maps. Draw the logic circuit realization of the counter, using only NAND...
help me to finish the verilog code and test bench Part 2: Sequence Counter Design the sequence counter using Xilinx Vivado. Consider the required number of D flip-flops(4). A sample VERILOG source file is as shown: module Seq_COUNT( ??? clock, ??? wire [?:?] D, ??? ??? [?:?] out ); always @ (??? ???) ??? // 3 bit Sequence Given is 0 2 4 6 1 3 5 7 out[N-1] <= some expression;...
