Question

Could you please give an example of a Mealy and a Moore Model and please explain how each model works. Thanks in advanced.

Answer 1

Answer:-----------

Mealy Model:------------ Mealy Machines: Mealy machines are also finite state machines with output value and its output depends on present state and current input symbol. It can be defined as (Q, q0, ∑, O, δ, λ’) where:

• Q is finite set of states
• .q0 is the initial state.
• ∑ is the input alphabet.
• O is the output alphabet.
• δ is transition function which maps Q×∑ → Q.
• ‘λ’ is the output function which maps Q×∑→ O.

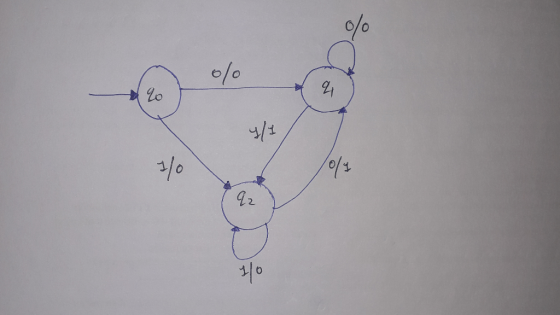

In the mealy machine shown in Figure , the output is represented with each input symbol for each state separated by /. The length of output for a mealy machine is equal to the length of input.

Input:11
Transition: δ (q0,11)=> δ(q2,1)=>q2
Output: 00 (q0 to q2 transition has Output 0 and q2 to q2 transition also has Output 0)

Moore Model :---------- Moore Machines: Moore machines are finite state machines with output value and its output depends only on present state. It can be defined as (Q, q0, ∑, O, δ, λ) where:

• Q is finite set of states.
• q0 is the initial state.
• ∑ is the input alphabet.
• O is the output alphabet.
• δ is transition function which maps Q×∑ → Q.
• λ is the output function which maps Q → O.

In the moore machine shown in Figure 1, the output is represented with each input state separated by /. The length of output for a moore machine is greater than input by 1.

Input: 11
Transition: δ (q0,11)=> δ(q2,1)=>q2
Output: 000 (0 for q0, 0 for q2 and again 0 for q2)
