A deck is a massive trapezoidal wall of concrete and stone that has a base of...

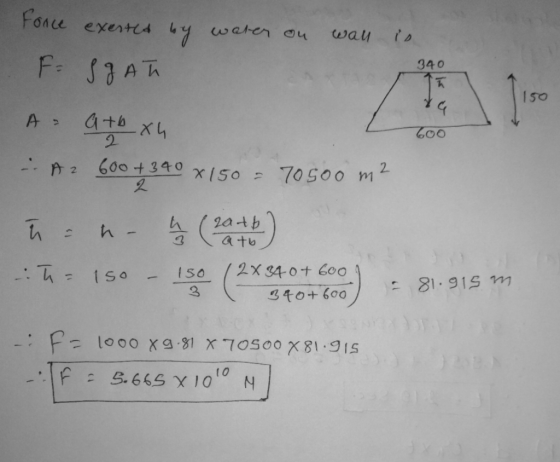

A deck is a massive trapezoidal wall of concrete and stone that has a base of 600m, 340 m in its upper part, and 150 m of depth. Calculate the force exerted by the water on the wall. Hint : D(h)= a+bh
Homework Answers
