A steam plant generates saturated steam at 600 psia. The condensate exits the condenser at 5 psia and 158 ºF. The feed pump and main turbine are isentropic.
Find:

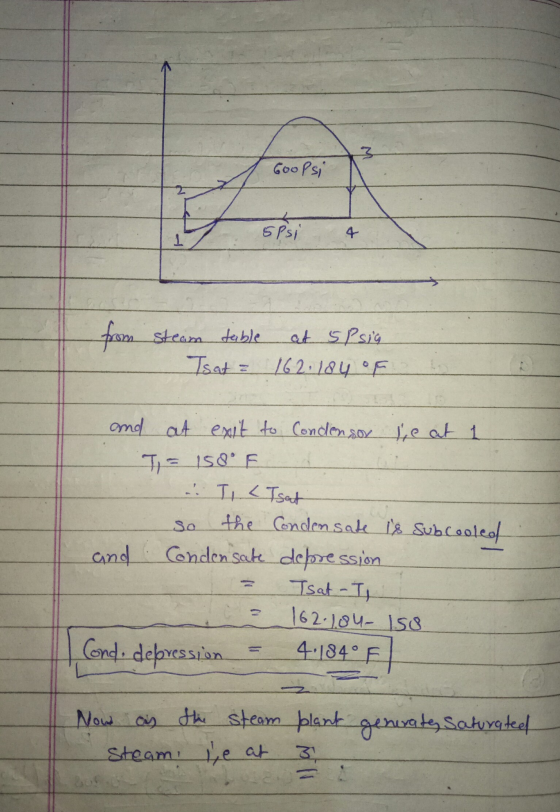

a. Is the condensate sub-cooled? If so, how much condensate depression is there (ºF)

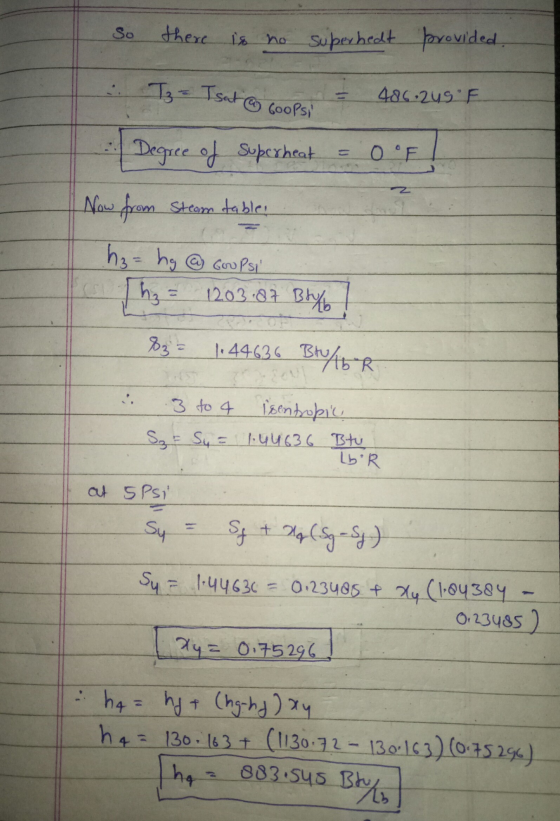

b. Is the generated steam superheated? If so, how much superheat is there (ºF)?

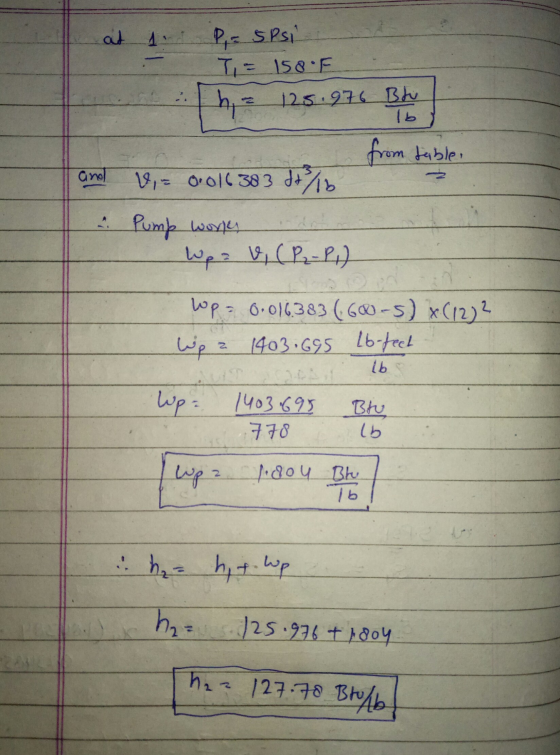

c. Determine all four state point enthalpy (h) values (BTU/lbm).
Homework Answers
