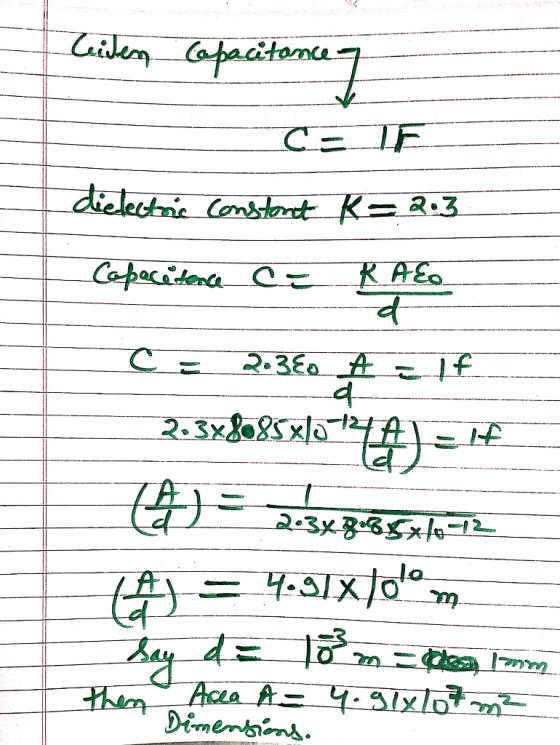

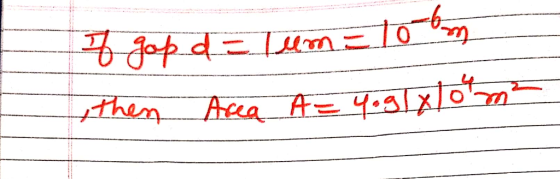

provide the dimensions for a 1.000000 F capacitor if the region between is filled with a...
Homework Answers
Add Answer to:
provide the dimensions for a 1.000000 F capacitor if the region
between is filled with a...
The drawing shows a parallel plate capacitor. One-half of the region between the plates is filled...
The drawing shows a parallel plate capacitor. One-half of the region between the plates is filled with a material that has a dielectric constant κ1=2.4. The other half is filled with a material that has a dielectric constant κ2=4.4. The area of each plate is 1.2cm2, and the plate separation is 0.19 mm. Find the capacitance.
A capacitor is constructed from two square metal plates. The gap between the plates is filled...
A capacitor is constructed from two square metal plates. The gap
between the plates is filled with two dielectrics of equal size as
shown in the figure below. Neglect edge effects. 1.59 cm 0.12 mm
dielectric constant right 7.4 dielectric constant left 4.7
Calculate the capacitance C of the device. Answer in units of
pF.
part 2: What is the ratio Vlef t
Vright of electric potential across the dielectric in the left-half
region to that across the dielectric in...
A 2.0 μF parallel-plate air-filled capacitor is connected across a 10 V battery. (a) Determine the...
A 2.0 μF parallel-plate air-filled capacitor is connected across a 10 V battery. (a) Determine the charge on the capacitor and the energy stored in the capacitor. (b) An identical 2.0 μF parallel-plate air-filled capacitor is connected across a 5 V battery, and a dielectric slab with dielectric constant κ is inserted between the plates of the capacitor, completely filling the region between the plates, while the battery remains connected. The energy stored in this capacitor is four times that...
Problem 7 The space between a parallel plate capacitor is filled with two slabs of dielectric...
Problem 7 The space between a parallel plate capacitor is filled with two slabs of dielectric material, as shown in figure (18.46) The dielectric constant of one slab is κι and the dielectric constant of the other slab is K2. The separation between the plates is d, and each slab fills half of the space between the plates of the capacitor. Determine the capacitance of this capacitor if the area of the two plates is A 2 Figure 18.46: Problem7
An air-filled capacitor is made from two flat parallel plates 1.4 mm apart. The inside area...
An air-filled capacitor is made from two flat parallel plates 1.4 mm apart. The inside area of each plate is 8.8 cm2. a) What is the capacitance of this set of plates (in pF) b) If the region between the plates is filled with a material whose dielectric constant is 6.6, what is the new capacitance (in pF)? 2) A parallel-plate capacitor with only air between its plates is charged by connecting the capacitor to a battery. The capacitor is...
Consider a parallel-plate capacitor that is partially filled with a dielectric of dielectric constant K
Consider a parallel-plate capacitor that is partially filled with a dielectric of dielectric constant K. The dielectric has the same same height as theseparation of the plates of the capacitor butfills a fraction f of the area of the capacitor. The capacitance of thecapacitor whenthe dielectric is completely removed is C0.What is the capacitance C(f) of this capacitor as afunction of f? Express C(f) in terms of C0, f,and K.
An air-filled parallel plate capacitor with a plate spacing of 1.20 cm has a capacitance of...
An air-filled parallel plate capacitor with a plate spacing of 1.20 cm has a capacitance of 3.40 �F. The plate spacing is now doubled and a dielectric is inserted, completely filling the space between the plates. As a result the capcitance becomes 15.4 �F. Calculate the dielectric constant of the inserted material.
(1 point) A parallel plate capacitor is filled with a dielectric that has a dielectric constant...
(1 point) A parallel plate capacitor is filled with a dielectric that has a dielectric constant of 1.09. The plates have an area of 2.26 mm² and are separated by a distance of 2.86 um. (A) What is the capacitance of this filled capacitor? (B) What is the capcitance of this capacitor when it is empty? (C) If the filled capacitor is connected to a 9 volt battery, what is the charge stored on the plates of this filled capacitor?...
An initially uncharged air-filled capacitor is connected to a 5.01 V charging source. As a result,...
An initially uncharged air-filled capacitor is connected to a 5.01 V charging source. As a result, 9.05×10−5 C of charge is transferred from one of the capacitor's plates to the other. Then, while the capacitor remains connected to the charging source, a sheet of dielectric material is inserted between its plates, completely filling the space. The dielectric constant ? of this substance is 2.95 . Find the voltage ? across the capacitor and the charge ?f stored by it after...
An initially uncharged air-filled capacitor is connected to a 4.31 V charging source. As a result,...
An initially uncharged air-filled capacitor is connected to a 4.31 V charging source. As a result, 7.19×10−5 C of charge is transferred from one of the capacitor's plates to the other. Then, while the capacitor remains connected to the charging source, a sheet of dielectric material is inserted between its plates, completely filling the space. The dielectric constant ? of this substance is 3.81 . Find the voltage ? across the capacitor and the charge ?f stored by it after...
A capacitor is constructed from two square metal plates. The gap
between the plates is filled with two dielectrics of equal size as
shown in the figure below. Neglect edge effects. 1.59 cm 0.12 mm
dielectric constant right 7.4 dielectric constant left 4.7
Calculate the capacitance C of the device. Answer in units of
pF.
part 2: What is the ratio Vlef t
Vright of electric potential across the dielectric in the left-half
region to that across the dielectric in...
Problem 7 The space between a parallel plate capacitor is filled with two slabs of dielectric material, as shown in figure (18.46) The dielectric constant of one slab is κι and the dielectric constant of the other slab is K2. The separation between the plates is d, and each slab fills half of the space between the plates of the capacitor. Determine the capacitance of this capacitor if the area of the two plates is A 2 Figure 18.46: Problem7
Consider a parallel-plate capacitor that is partially filled with a dielectric of dielectric constant K. The dielectric has the same same height as theseparation of the plates of the capacitor butfills a fraction f of the area of the capacitor. The capacitance of thecapacitor whenthe dielectric is completely removed is C0.What is the capacitance C(f) of this capacitor as afunction of f? Express C(f) in terms of C0, f,and K.
(1 point) A parallel plate capacitor is filled with a dielectric that has a dielectric constant of 1.09. The plates have an area of 2.26 mm² and are separated by a distance of 2.86 um. (A) What is the capacitance of this filled capacitor? (B) What is the capcitance of this capacitor when it is empty? (C) If the filled capacitor is connected to a 9 volt battery, what is the charge stored on the plates of this filled capacitor?...
