a) Write a Verilog module that implements a 1-bit partial full adder (PFA).
b) Through instantiating the module in a) plus other logic, implement a 4-bit full adder with Verilog.
c) Write a proper test-bench and stimulus, thoroughly test your 4 bit carry lookahead adder.
d) Show a waveform snapshot that indicates you adder can correctly compute 0101 + 1101 and show your results.




(D)..

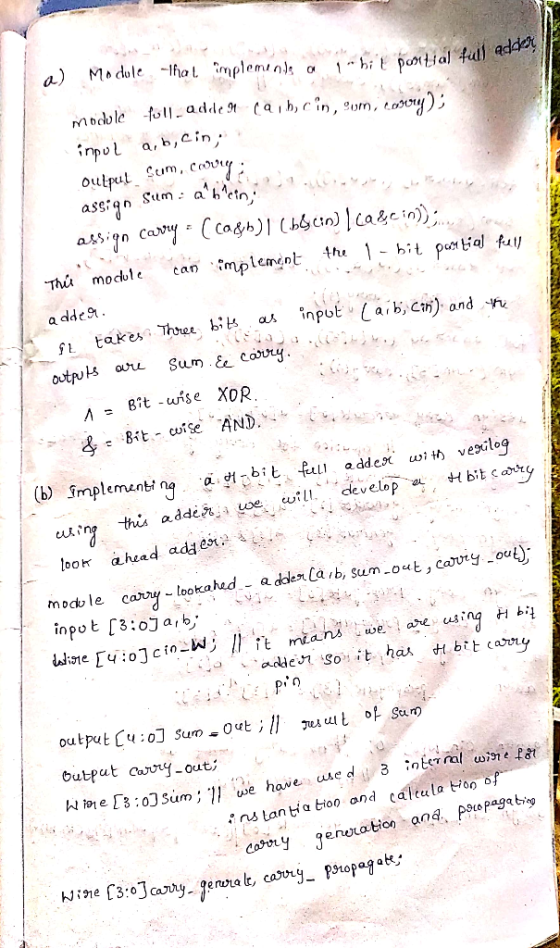

(A)..you can see simple 1 bit full adder below,
module full_adder(a,b,cin,sum,carry);
input a,b,cin;
output sum,carry;
assign sum=a^b^cin;
assign carry=((a&b)|(b&cin)|(a&cin));
(B)..using this adder we will develop 4 bit carry look ahed adder,
you can see the code of carry look ahed adder below,
module carry_lookahed_addr(a,b,sum_out,carry_out);
input [3:0]a,b;
wire [4:0]cin_w;//it has 4 bit carry pin
output [4:0]sum_out;// result of sum
output carry_out;
wire [3:0]sum;// we have used 3 internal wire for instantiation and calculation of carry generation and propagation
wire [3:0]carry_generate,carry_propagate;
full_adder d1(.a(a[0]),.b(b[0]),.cin(cin_w[0]),.sum(sum[0]),.carry());// for 4 bit adder we have instantiate 1 bit adder 4 times
full_adder d2(.a(a[1]),.b(b[1]),.cin(cin_w[1]),.sum(sum[1]),.carry());
full_adder d3(.a(a[2]),.b(b[2]),.cin(cin_w[2]),.sum(sum[2]),.carry());
full_adder d4(.a(a[3]),.b(b[3]),.cin(cin_w[3]),.sum(sum[3]),.carry());
assign carry_generate[0]=a[0]&b[0];// equation for carry generation C_G=a&b,
assign carry_generate[1]=a[1]&b[1];
assign carry_generate[2]=a[2]&b[2];
assign carry_generate[3]=a[3]&b[3];
assign carry_propagate[0]=a[0]^b[0];
assign carry_propagate[1]=a[1]^b[1];
assign carry_propagate[2]=a[2]^b[2];
assign carry_propagate[3]=a[3]^b[3];
assign cin_w[0] = 0; // no carry input
assign cin_w[1] = carry_generate[0] | (carry_propagate[0] & cin_w[0]);
assign cin_w[2] = carry_generate[1] | (carry_propagate[1] & cin_w[1]);
assign cin_w[3] = carry_generate[2] | (carry_propagate[2] & cin_w[2]);
assign cin_w[4] = carry_generate[3] | (carry_propagate[3] & cin_w[3]);
assign sum_out={cin_w[4],sum};
assign carry_out=cin_w[4];

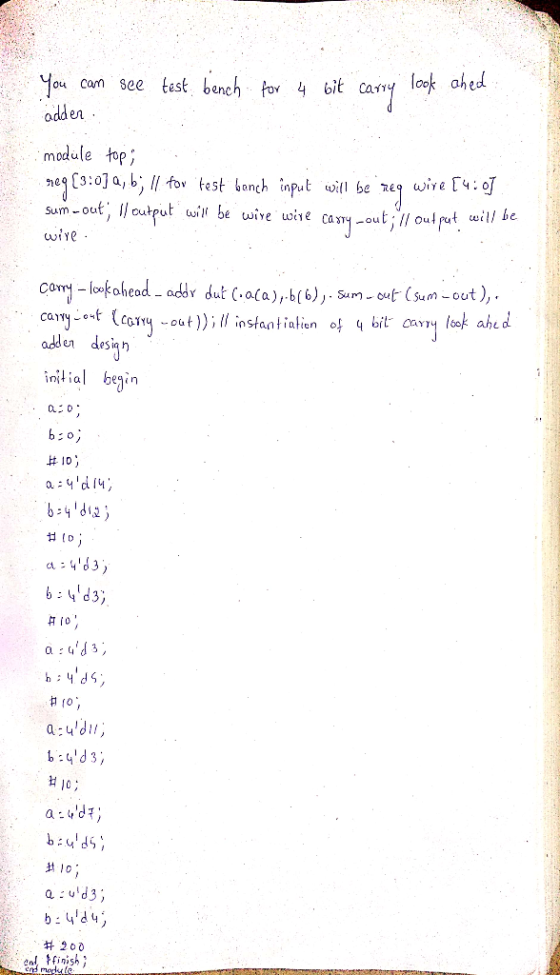

(C).you can see test bench for 4 bit carry look ahed adder
module top;
reg[3:0]a,b;//for test bench input will be reg
wire [4:0]sum_out; //output will be wire
wire carry_out;//output will be wire
carry_lookahed_addr dut(.a(a),.b(b),.sum_out(sum_out),.carry_out(carry_out));//instantiation of 4 bit carry look ahed adder design
initial begin
a=0;
b=0;
#10;
a=4'd14;
b=4'd12;
#10;
a=4'd3;
b=4'd3;
#10;
a=4'd3;
b=4'd5;
#10;
a=4'd11;
b=4'd3;
#10;
a=4'd7;
b=4'd5;
#10;
a=4'd3;
b=4'd4;
#200;
$finish;
end
please drop here a comment if u have any doubts..Thank you..please like
