Use the following equations to answer the questions below P=VI and P=I^2R. If a power plant...

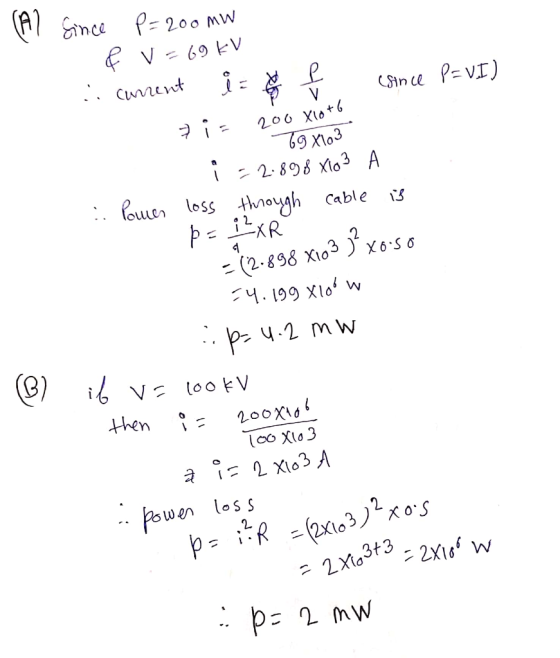

Use the following equations to answer the questions below P=VI and P=I^2R. If a power plant delivers an average of 200 MW over a transmission line with a total resistance of R=0.50 Ohlms, what is a the power loss at??
A. IF delivered at 69 kV

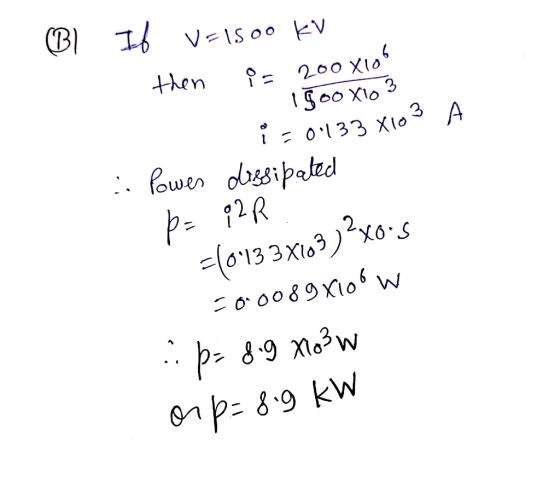

B. If delivered at 100kV
Homework Answers
Add Answer to:
Use the following equations to answer the questions below P=VI
and P=I^2R. If a power plant...
5.35/b.bb Poi PREVIOUS AN OSCOLPHYS2016 23.7.P.051. ME A large power plant generates electricity at 12.0 kV....
5.35/b.bb Poi PREVIOUS AN OSCOLPHYS2016 23.7.P.051. ME A large power plant generates electricity at 12.0 kV. Its old transformer once converted the voltage to 340 kV. The secondary of this transformer is being replaced so that its output can be 775 kV for more efficient cross-country transmission on upgraded transmission lines. If the power output is 1,000 MW and line resistance is 2.050, what are th old and new line power losses (in MW)? old line losses X MW Enter...
(10%) Problem 7: Suppose a large power plant generates electricity at 12.0 kV. Its old transformer...
(10%) Problem 7: Suppose a large power plant generates electricity at 12.0 kV. Its old transformer once converted this voltage to 345 kV. The secondary coil of this transformer is being replaced so that its output can be 760 kV for more efficient cross-country transmission on upgraded transmission lines. Randomized Variables Vi = 345 kV V2 - 760 kV 50% Part (a) If the overall power output is 1000.0 MW and line resistance is 2.00 2. what was the power...
Q2. Draw the nominal π circuit that is used to represent the medium-length transmission line model with total series impedance Z and total shunt admittance Y. Then derive the equations to express the...
Q2. Draw the nominal π circuit that is used to represent the medium-length transmission line model with total series impedance Z and total shunt admittance Y. Then derive the equations to express the ABCD parameters (a) 20% (b)A 200 km, 230 kV, 50 Hz three-phase overhead transmission line has a positive-sequence series impedance z (0.08 + j0.48) Ω/km, and a positive-sequence shunt admittance y-j3.33 x 10T° S/km. At full load, the line delivers 250 MW at 0.99 power factor lagging...
The use of superconductors has been proposed for power transmission lines. A single coaxial cable (see...
The use of superconductors has been proposed for power transmission lines. A single coaxial cable (see figure below) could carry a power of 1.00 x 103 MW (the output of a large power plant) at 200 kV, DC, over a distance of 1.00 x 103 km without loss. An ?nner wre o radius a 1.00 cm made rom the superconductor Nb3Sn, carries he currentl n ne direction. A surrounding superconducting C linder of radi uso 0 8cm ould a mite...
Qustion 2.120 marks) a) Figure I below shows a system with plant-I and plant-2 connected to bus-1 and bus-2 respectively. There are two loads and 3 branches. The bus-I is the reference bus with 1...
Qustion 2.120 marks) a) Figure I below shows a system with plant-I and plant-2 connected to bus-1 and bus-2 respectively. There are two loads and 3 branches. The bus-I is the reference bus with 1.040° pu voltage. Base MVA is 100 If the branch currents and branch impedance values are as follows -2.5-j0.50pu -2-j040 pu I 1.5-j0.3 pu Calculate: 7-0.05+j0.20 pu -0.02+j0.08 pu Z 0.025+j0.10 pu i. Current distribution factors (4 marks) ii. Power factor angles at bus 1 and...
Solve all questions and submit through blackboard by March 26, 2020 Q. 1 (i) Classify short,...
Solve all questions and submit through blackboard by March 26, 2020 Q. 1 (i) Classify short, medium and long transmission lines based on distance (km). (ii) Classify transmission lines (low, medium, high, extra high) based on voltage levels (kV). (iii) What is commonly used conductor material for overhead transmission lines. Why Aluminum and copper materials are not used for conductors of transmission lines. Q. 2: A 3-phase, 230 kV transmission line having a length of 50 km is composed of...
parralle circuit Volt I, current Computed resistance R=V/I Computed Power P=VI R1 4.1 0.29 14.13 1.18...
parralle circuit Volt I, current Computed resistance R=V/I Computed Power P=VI R1 4.1 0.29 14.13 1.18 R2 4.1 0.19 21.57 0.779 R3 4.1 0.12 34.16 0.492 R_eq use the measured R value for each light bulb to calculate R_eq. Then compare the calculated R_eq and the measure valued based on the ratio of the total voltage drop and the currentDraw a series circuit digram and calculate R_eq and I B. parralle- series circuit VOLTS I, Current through R Computed Resistance...
2- The Electrical System Unit 14 14.5 Premises Ground-Fault Current Path 14.8 Conductor Power Los Metal...
2- The Electrical System Unit 14 14.5 Premises Ground-Fault Current Path 14.8 Conductor Power Los Metal parts of premises wiring must be bonded to a low medance path designed so that the circuit protection device will quickly open and clear a ground fault 12 Conductor poner losses are directly proporional tl le lengh of the conaco and the areofthe cnrt duce the line- aused by the current is doubled, the power loss will be increased by a) True -percent al...
I need help to solve this questions about Generator Governor Droop and Transmission Line. A complete...
I
need help to solve this questions about Generator Governor Droop
and Transmission Line. A complete solutions with answers would be
great. Thank you
Generation Question 1 to 5 relate to the following grid connected generator. A governor-controlled, steam-driven 450 MW synchronous generator with 5% droop is synchronized to the 60 Hz grid and its load set-point adjusted to deliver 300 MW to the grid. Q1. (a) 000 What is the actual droop of the generating unit? 0.0225 Hz/MW (b)...
Use the following two equations to answer the questions below. (1) P = 12-20 (2) P...
Use the following two equations to answer the questions below. (1) P = 12-20 (2) P = 3+Q Instructions: Round your answers to the nearest whole number. The equilibrium price is $( and the equilibrium quantity is Graph the supply and demand curves for these equations.. Instructions: Use the "Supply" and "Demand" tools to plot the end points of the supply and demand curves. Determine the line end points at a quantity of 6. Plot the equilibrium point (EQ), Demand...
5.35/b.bb Poi PREVIOUS AN OSCOLPHYS2016 23.7.P.051. ME A large power plant generates electricity at 12.0 kV. Its old transformer once converted the voltage to 340 kV. The secondary of this transformer is being replaced so that its output can be 775 kV for more efficient cross-country transmission on upgraded transmission lines. If the power output is 1,000 MW and line resistance is 2.050, what are th old and new line power losses (in MW)? old line losses X MW Enter...
(10%) Problem 7: Suppose a large power plant generates electricity at 12.0 kV. Its old transformer once converted this voltage to 345 kV. The secondary coil of this transformer is being replaced so that its output can be 760 kV for more efficient cross-country transmission on upgraded transmission lines. Randomized Variables Vi = 345 kV V2 - 760 kV 50% Part (a) If the overall power output is 1000.0 MW and line resistance is 2.00 2. what was the power...
Q2. Draw the nominal π circuit that is used to represent the medium-length transmission line model with total series impedance Z and total shunt admittance Y. Then derive the equations to express the ABCD parameters (a) 20% (b)A 200 km, 230 kV, 50 Hz three-phase overhead transmission line has a positive-sequence series impedance z (0.08 + j0.48) Ω/km, and a positive-sequence shunt admittance y-j3.33 x 10T° S/km. At full load, the line delivers 250 MW at 0.99 power factor lagging...
The use of superconductors has been proposed for power transmission lines. A single coaxial cable (see figure below) could carry a power of 1.00 x 103 MW (the output of a large power plant) at 200 kV, DC, over a distance of 1.00 x 103 km without loss. An ?nner wre o radius a 1.00 cm made rom the superconductor Nb3Sn, carries he currentl n ne direction. A surrounding superconducting C linder of radi uso 0 8cm ould a mite...
Qustion 2.120 marks) a) Figure I below shows a system with plant-I and plant-2 connected to bus-1 and bus-2 respectively. There are two loads and 3 branches. The bus-I is the reference bus with 1.040° pu voltage. Base MVA is 100 If the branch currents and branch impedance values are as follows -2.5-j0.50pu -2-j040 pu I 1.5-j0.3 pu Calculate: 7-0.05+j0.20 pu -0.02+j0.08 pu Z 0.025+j0.10 pu i. Current distribution factors (4 marks) ii. Power factor angles at bus 1 and...
Solve all questions and submit through blackboard by March 26, 2020 Q. 1 (i) Classify short, medium and long transmission lines based on distance (km). (ii) Classify transmission lines (low, medium, high, extra high) based on voltage levels (kV). (iii) What is commonly used conductor material for overhead transmission lines. Why Aluminum and copper materials are not used for conductors of transmission lines. Q. 2: A 3-phase, 230 kV transmission line having a length of 50 km is composed of...
2- The Electrical System Unit 14 14.5 Premises Ground-Fault Current Path 14.8 Conductor Power Los Metal parts of premises wiring must be bonded to a low medance path designed so that the circuit protection device will quickly open and clear a ground fault 12 Conductor poner losses are directly proporional tl le lengh of the conaco and the areofthe cnrt duce the line- aused by the current is doubled, the power loss will be increased by a) True -percent al...
I
need help to solve this questions about Generator Governor Droop
and Transmission Line. A complete solutions with answers would be
great. Thank you
Generation Question 1 to 5 relate to the following grid connected generator. A governor-controlled, steam-driven 450 MW synchronous generator with 5% droop is synchronized to the 60 Hz grid and its load set-point adjusted to deliver 300 MW to the grid. Q1. (a) 000 What is the actual droop of the generating unit? 0.0225 Hz/MW (b)...
Use the following two equations to answer the questions below. (1) P = 12-20 (2) P = 3+Q Instructions: Round your answers to the nearest whole number. The equilibrium price is $( and the equilibrium quantity is Graph the supply and demand curves for these equations.. Instructions: Use the "Supply" and "Demand" tools to plot the end points of the supply and demand curves. Determine the line end points at a quantity of 6. Plot the equilibrium point (EQ), Demand...
