An ac series circuit contains a resistor of 30 ohms, a capacitor of 0.95 microfarads and...

An ac series circuit contains a resistor of 30 ohms, a capacitor of 0.95 microfarads and an inductor of 220 mH. What frequency should be used to create a resonance condition in the circuit?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

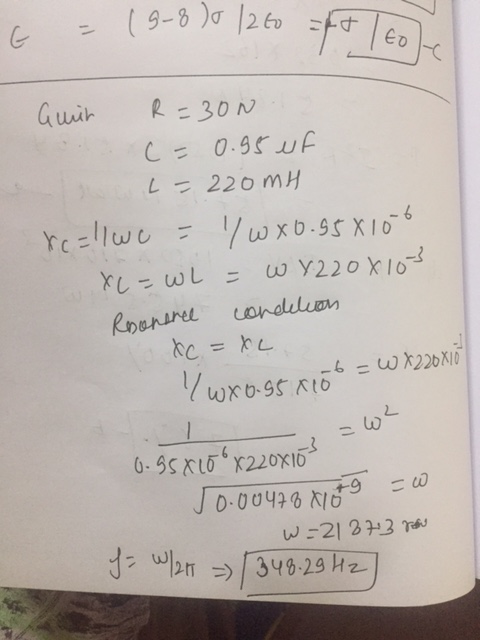

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
An ac series circuit contains a resistor of 30 ohms, a capacitor of 0.95 microfarads and...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • 1. In an AC series circuit, the current in a pure resistor differs in phase with...

    1. In an AC series circuit, the current in a pure resistor differs in phase with the applied voltage by what angle? Options: a=zero, b=45°, c=90° d=180 2. In the inductor of a 60-Hz AC series circuit, the peak voltage precedes the peak current in each cycle by what time interval? Option: a)2.1 ´ 10-3 s b)4.2 ´ 10-3 s c) 8.3 ´ 10-3 s d) 1.7 ´ 10-3 s 3) What is the impedance of an AC series circuit...

  • A series AC circuit contains a resistor, an inductor of 220 mH, a capacitor of 4.20...

    A series AC circuit contains a resistor, an inductor of 220 mH, a capacitor of 4.20 ur, and a source with ΔⅤmax-240 V operating at 50.0 Hz. The maximum current in the circuit is 170 mA. (a) Calculate the inductive reactance 69.11 (b) Calculate the capacitive reactance 757.88 (c) Calculate the impedance 141 (d) Calculate the resistance in the circuit. 6.887 The impedance is a function of the resistance and the impedances of the inductor and capacitor. kΩ (e) Calculate...

  • A series AC circuit contains a resistor, an Inductor of 220 mH, a capacitor of 4.80...

    A series AC circuit contains a resistor, an Inductor of 220 mH, a capacitor of 4.80 f, and a generator with Av max - 240 V operating at 50.0 Hz. The maximum current in the circuit is 130 mA (a) Calculate the inductive reactance (b) Calculate the capacitive reactance (c) Calculate the impedance kn (d) Calculate the resistance in the circuit kn (e) Calculate the phase angle between the current and the generator voltage

  • A series RLC circuit has a resistor of 25 ohms, a capacitor of 0.05F and and...

    A series RLC circuit has a resistor of 25 ohms, a capacitor of 0.05F and and inductor of 1.0 H. What is the impedance of the circuit if it powered by an ac voltage source with an angular frequency of 20 s-1?

  • A resistor of 3.63 Ohms is connected in series with a capacitor of 1.87 microFarads. At...

    A resistor of 3.63 Ohms is connected in series with a capacitor of 1.87 microFarads. At t=0, a battery of 32.2 V is connected across these two elements. What is the current through the circuit at t=4.34 microseconds?

  • If an 80 mH inductor is in series with a 220 Ω resistor in a circuit...

    If an 80 mH inductor is in series with a 220 Ω resistor in a circuit with a source frequency of 1000 Hz, what will be the phase angle (rounded) of the current with respect to the voltage? A. 48° B. 66° C. 50° D. 70° A 10 mH inductor and a 100 Ω resistor are connected in parallel. The circuit is supplied with 24 VAC at 2000 Hz. What is the total circuit current (rounded)? A. 0.29 A B....

  • Exercise 31 A series ac circuit contains a 350 - resistor, a 20.0 - mH inductor,...

    Exercise 31 A series ac circuit contains a 350 - resistor, a 20.0 - mH inductor, a 2.90 - uF capacitor, and an ac power source of voltage amplitude 45.0 V operating at an angular frequency of 360 rad/s. Part A What is the power factor of this circuit? ANSWER: cos - Part B Find the average power delivered to the entire circuit ANSWER: P- w Part C What is the average power delivered to the resistor, to the capacitor,...

  • A series AC circuit contains a resistor, an inductor of 250 mH, a capacitor of 4.50...

    A series AC circuit contains a resistor, an inductor of 250 mH, a capacitor of 4.50 uF, and a source with AV = 240 V operating at 50.0 Hz. The max maximum current in the circuit is 170 mA. (a) Calculate the inductive reactance. The inductive reactance depends on the value of the inductance and the frequency of the source. Q (b) Calculate the capacitive reactance. (c) Calculate the impedance. kn (d) Calculate the resistance in the circuit. kn. (e)...

  • AC Circuit in Resonance: A circuit is constructed with an AC generator, a resistor, capacitor and...

    AC Circuit in Resonance: A circuit is constructed with an AC generator, a resistor, capacitor and inductor as The generator voltage varies in time as E Va vb Emsinut, where sm 24 v and w 100 At this frequency, the circuit is in resonance with the maximum value of the current Imax resistance R and the inductance L are unknown. 1) What is L, the value of the inductance of the circuit? mH Submit sin(at) d WW

  • A series AC circuit contains a resistor, an inductor of 250 mh, a capacitor of 5.20...

    A series AC circuit contains a resistor, an inductor of 250 mh, a capacitor of 5.20 pF, and a source with AVmax = 240 V operating at 50.0 Hz. The maximum current in the circuit is 160 mA. Calculate the resistance of the resister in the circuit. O A. 78.5 12 OB. 6122 O C. 1.4k12 OD. 1.5 k 22
