A resistor of 3.63 Ohms is connected in series with a capacitor of 1.87 microFarads. At...

A resistor of 3.63 Ohms is connected in series with a capacitor of 1.87 microFarads. At t=0, a battery of 32.2 V is connected across these two elements.
What is the current through the circuit at t=4.34 microseconds?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

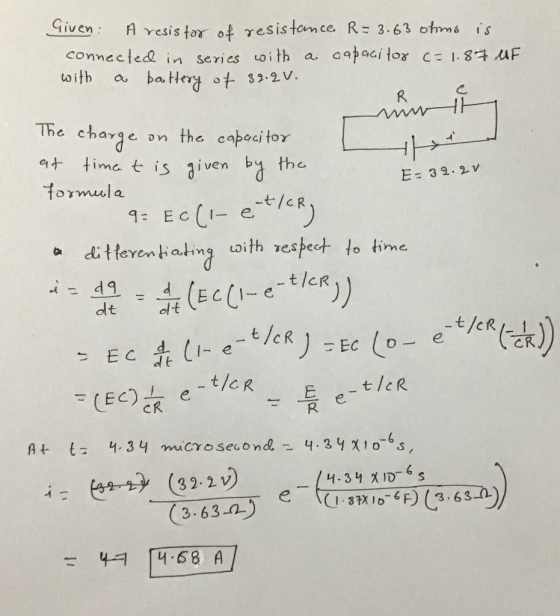

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
A resistor of 3.63 Ohms is connected in series with a capacitor of 1.87 microFarads. At...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A capacitor (10.0 mF) and two resistors (2.00 ohms and 3.00 ohms) are connected in series...

    A capacitor (10.0 mF) and two resistors (2.00 ohms and 3.00 ohms) are connected in series across a battery (EMF = 10.0 V, no internal resistance). Initially, a switch is open so that no current can flow. The charge on the capacitor is initially zero. At time t = 0 the switch is closed^ojhatcurrent is able to flow. What current flows through the circuit at t- 50.0 ms? (A) 0 A (B) 0.369 A (C) 0.736 A (D) 1.00 A...

  • An ac series circuit contains a resistor of 30 ohms, a capacitor of 0.95 microfarads and...

    An ac series circuit contains a resistor of 30 ohms, a capacitor of 0.95 microfarads and an inductor of 220 mH. What frequency should be used to create a resonance condition in the circuit?

  • helpppp 5. A 250 Q resistor is in series with 200 uF capacitor. These are connected...

    helpppp 5. A 250 Q resistor is in series with 200 uF capacitor. These are connected across a 20 V battery. The switch is turned on, and the capacitor begins to fill. After the capacitor is completely filled the battery is taken out of the circuit and the leads to the battery are shorted together. (a) (6 pts) What is the time constant, the maximum current, and the maximum charge on the capacitor? (b) (6 pts) When t = 0.04...

  • A resistor and capacitor are connected in series to a power supply of 50 Volts. The...

    A resistor and capacitor are connected in series to a power supply of 50 Volts. The resistor has a value of 30000 ohms and the Capacitor is initially uncharged. After a time of 16.0 seconds, the capacitor is charged 72% fully charged. a) What is the capacitance of capacitor in this circuit? b) What is the time constant of this system? c) What is the current through the resistor at t= 20.0 seconds? d) What is the potential difference across...

  • A capacitor is connected in series to a resistor with a resistance of 1.2ko and a...

    A capacitor is connected in series to a resistor with a resistance of 1.2ko and a battery with an emf of 12 V. a) What multiple of the time constant gives the time taken by the initially uncharged capacitor to reach 58% of its maximum charge? b) At that charge, what is the current through the resistor? At that charge, what is the potential across the capacitor? d) At that charge, what is the potential across the resistor?

  • 1. A circuit is composed of a capacitor connected in series to an inductor (L=2E-3 H)...

    1. A circuit is composed of a capacitor connected in series to an inductor (L=2E-3 H) and resistor (R=100 Ohms). The capacitor is initially uncharged. What is the instantaneous current flowing through the circuit at time t = 0.34 s. 2. An LR circuit contains an ideal 50-V battery, a 42-H inductor having no resistance, a 21-Ω resistor, and a switch S, all in series. Initially, the switch is open and has been open for a very long time. At...

  • 1. A resistor R = 586 k(ohms) and a capacitor C= 87.4 uF are connected in...

    1. A resistor R = 586 k(ohms) and a capacitor C= 87.4 uF are connected in series with a 9V battery. At t = 0 a switch is closed and the capacitor is allowed to charge. a) What is the initial current in the circuit? b) What is the initial charge on the capacitor? c) What is the time constant? d) What is the current after 1.84s has passed? e) At what time is the charge on the capacitor equal...

  • 1. A 450 nF capacitor is initially uncharged. The capacitor is connected in series with a...

    1. A 450 nF capacitor is initially uncharged. The capacitor is connected in series with a 2,500  resistor and a 6.00 V ideal battery. The circuit is “closed” allowing current to flow and the capacitor to start charging. a. What is the time constant of this RC circuit? b. What is the current through the resistor when the circuit is first “closed”? c. How much time is required for the voltage across the capacitor to reach 5.00 V? d....

  • A 4.0-uF capacitor is connected in series with 7.0 MO resistor, and this combination is connected...

    A 4.0-uF capacitor is connected in series with 7.0 MO resistor, and this combination is connected across an ideal 10-V battery. What is the current in the circuit when the capacitor has reached 40% of its maximum charge? (1 MS2 = 106 12) 0.12 UA 2.1 UA 0.86 UA 0.42 MA 1.7 LA

  • A capacitor and a resistor that are in series are initially connected to a power supply...

    A capacitor and a resistor that are in series are initially connected to a power supply with 22 volts. The power supply is then cut-off and the capacitor begins to discharge through the resistor. At t = 20 s, the voltage across the capacitor drops to 7 volts. What is the resistance of the resistor, in mega ohms (MΩ) if the capacitance, C = 7 μF ? Please give your answer in two decimal places.
