steam approaches a nozzle with a velocity of 100m/s. the initial temperature and pressures of steam...

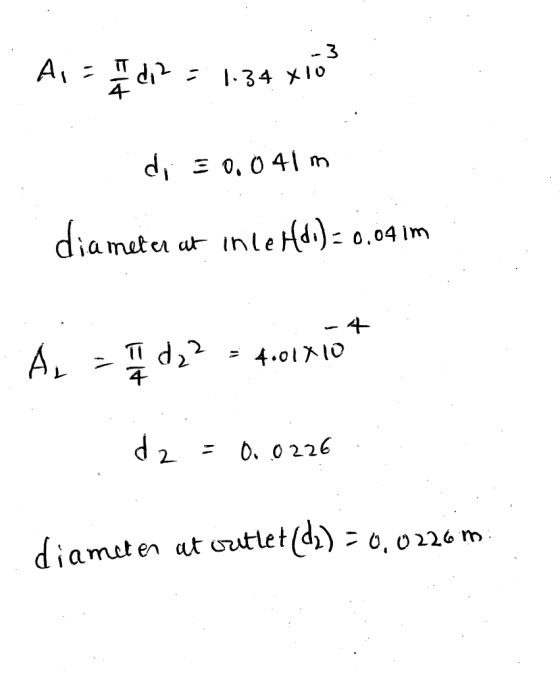

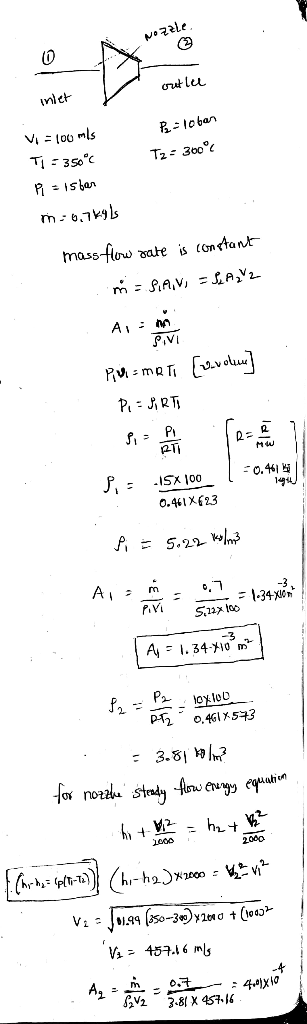

steam approaches a nozzle with a velocity of 100m/s. the initial temperature and pressures of steam is 15bar and 350 degrees celcius. the pressure at exit plane of the nozzle is 10bar and 300degrees celcius. determine the inlet and exit diameters if steam is discharged at a rate of 0.7kg/s.
Homework Answers
Add Answer to:
steam approaches a nozzle with a velocity of 100m/s. the initial
temperature and pressures of steam...
Steam enters a nozzle at 600 kPa and 400 ∘ ∘ C at a velocity of...
Steam enters a nozzle at 600 kPa and 400 ∘ ∘ C at a velocity of 9.9 m/s. Steam leaves the nozzle at 500 kPa and 350 ∘ ∘ C. The nozzle has an inlet area of 200 cm 2 2 and loses heat at a rate of 91 kJ/kg. !! I already got the mass flow rate and it is correct What is the mass flow rate of steam that passes through the nozzle? .3854089617 kg/s What is the...
steam enters a nozzle at 400C and 0.1MPa with a velocity of 10m/s, and leaves at...
steam enters a nozzle at 400C and 0.1MPa with a velocity of 10m/s, and leaves at 320C and 300kPa while losing heat at a rate of 25kW. For an inlet and exit area of 800cm^2, and 200cm^2 respectively, determine the exit velocity of the steam at the nozzle exit. a) 622m/s b) 596m/s c) 440m/s d) 558 m/s
Water steam is running through the nozzle. Inlet pressure is P1=25 bars; T1=300C; V1=90m/s; A1=0.2m2. The...
Water steam is running through the nozzle. Inlet pressure is P1=25 bars; T1=300C; V1=90m/s; A1=0.2m2. The exit parameters are: P2=11bars; T2=210C. The mass flow rate is m=2 kg/s. Determine: Exit velocity V2=?; Inlet and outlet diameters D1 and D2
Steam enters an adiabatic nozzle at 400 °C and 800 kPa with a velocity of 16...
Steam enters an adiabatic nozzle at 400 °C and 800 kPa with a velocity of 16 m/s. It leaves the nozzle at 300 °C and 400 kPa. The inlet area of the nozzle is 800 cm2. Determine; a. The mass flow rate through the nozzle, in kg/s Ans. _kg/s b. The volume flow rate of the steam at the exit, in m3/s Ans._ _m3/s The velocity of the steam at the nozzle exit, in c. m/s Ans. m/s
Steam enters an insulated nozzle at 6000 kPa, 360oC, with a velocity of 20 m/s. At...
Steam enters an insulated nozzle at 6000 kPa, 360oC, with a velocity of 20 m/s. At the exit, the pressure and velocity are 1500 kPa and 691.7 m/s, respectively. Determine the area (cm2) at the exit of the nozzle if the mass flow rate is 5.41 kg/s.
the performance of nozzle with inlet area of 800cm2 operating at a steady state is to...
the performance of nozzle with inlet area of 800cm2 operating at a steady state is to be investigate. when steam flows in at 2.5m3/s, 1200c and 5Mpa the exit velocity was observed to be 100m/s. To investigate the nozzle's perfomance, steam will be made to flow in a various rates while maintaining the same inlet temperature and pressure. Select 2 different values of inlet velocities in the range of 15 to 30m/s and subsequently plot the exit enthalphy in kJ/kg...
Steam enters a nozzle at 400°C and 800 kPa with a velocity of 10 m/s, and...
Steam enters a nozzle at 400°C and 800 kPa with a velocity of 10 m/s, and leaves at 300°C and 200 kPa while losing heat at a rate of 24 kW. For an inlet area of 675 cm, determine the velocity and the volume flow rate of the steam at the nozzle exit. 2-m/s (Round to the nearest integer) m3/s (Round to two decimal places) 400 C 800 kPa Steam200 kPa 10 m/s 300 C
The performance of a nozzle with inlet area of 800cm^2 operating at steady state is to...
The performance of a nozzle with inlet area of 800cm^2 operating
at steady state is to be investigated. When steam flows in at 2.5
m^3/s, 1200C and 5 MPa, the exit velocity was observed be 100m/s.
to investigate the nozzle's performance, steam will be made to flow
in at various rates while maintaining the same inlet temperature
and pressure. select two different values of inlet velocities in
the range of 15 to 30m/s and subsequently plot the exit enthalpy in...
Question 6) Steam enters a nozzle at 400°C and 800 kPa with a velocity of 10...
Question 6) Steam enters a nozzle at 400°C and 800 kPa with a velocity of 10 m/s, and leaves at 3008C and 200 kPa while losing heat at a rate of 25 kW. For an inlet area of 800 cm2, determine the velocity and the volume flow rate of the steam at the nozzle exit.
3. Steam enters a nozzle at 400°C and 800 kPa with a velocity of 5 m/s...
3. Steam enters a nozzle at 400°C and 800 kPa with a velocity of 5 m/s and leaves at 500 kPa and 350°C, while losing 60 kJ/kg of heat. For an inlet area of 0.5 m², determine the velocity. volumetric flow rate and mass flow rate at the outlet
Steam enters an adiabatic nozzle at 400 °C and 800 kPa with a velocity of 16 m/s. It leaves the nozzle at 300 °C and 400 kPa. The inlet area of the nozzle is 800 cm2. Determine; a. The mass flow rate through the nozzle, in kg/s Ans. _kg/s b. The volume flow rate of the steam at the exit, in m3/s Ans._ _m3/s The velocity of the steam at the nozzle exit, in c. m/s Ans. m/s
Steam enters a nozzle at 400°C and 800 kPa with a velocity of 10 m/s, and leaves at 300°C and 200 kPa while losing heat at a rate of 24 kW. For an inlet area of 675 cm, determine the velocity and the volume flow rate of the steam at the nozzle exit. 2-m/s (Round to the nearest integer) m3/s (Round to two decimal places) 400 C 800 kPa Steam200 kPa 10 m/s 300 C
The performance of a nozzle with inlet area of 800cm^2 operating
at steady state is to be investigated. When steam flows in at 2.5
m^3/s, 1200C and 5 MPa, the exit velocity was observed be 100m/s.
to investigate the nozzle's performance, steam will be made to flow
in at various rates while maintaining the same inlet temperature
and pressure. select two different values of inlet velocities in
the range of 15 to 30m/s and subsequently plot the exit enthalpy in...
Question 6) Steam enters a nozzle at 400°C and 800 kPa with a velocity of 10 m/s, and leaves at 3008C and 200 kPa while losing heat at a rate of 25 kW. For an inlet area of 800 cm2, determine the velocity and the volume flow rate of the steam at the nozzle exit.
3. Steam enters a nozzle at 400°C and 800 kPa with a velocity of 5 m/s and leaves at 500 kPa and 350°C, while losing 60 kJ/kg of heat. For an inlet area of 0.5 m², determine the velocity. volumetric flow rate and mass flow rate at the outlet
