For the following functions, determine minimal SOP realizations: i. F(a, b, c, d) = ∑ (0,...

For the following functions, determine minimal SOP realizations:
i. F(a, b, c, d) = ∑ (0, 1, 4, 12, 14, 15)
j. F(a, b, c, d) = ∑ (1, 3, 4, 5, 6, 7, 9, 11, 13, 15)
k. F(a, b, c, d) = ∑ (0, 2, 6, 8, 9, 10, 11, 14)
l. F(a, b, c, d) = ∑ (5, 7, 9, 11, 13, 15)

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

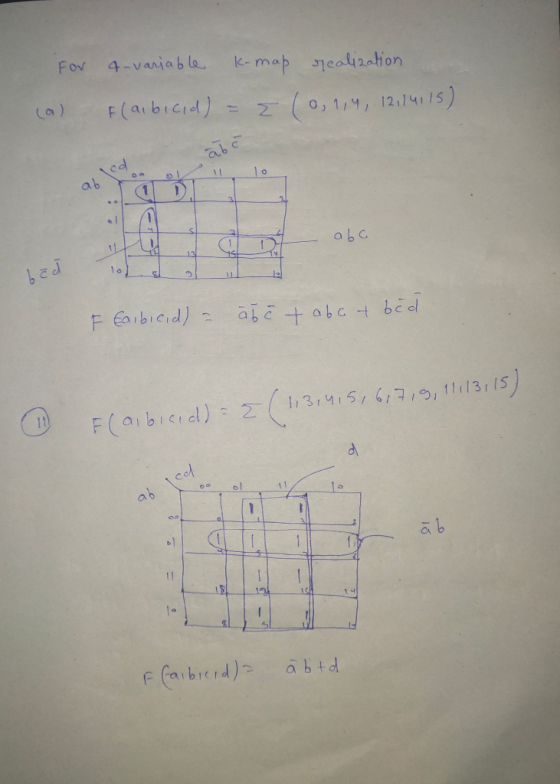

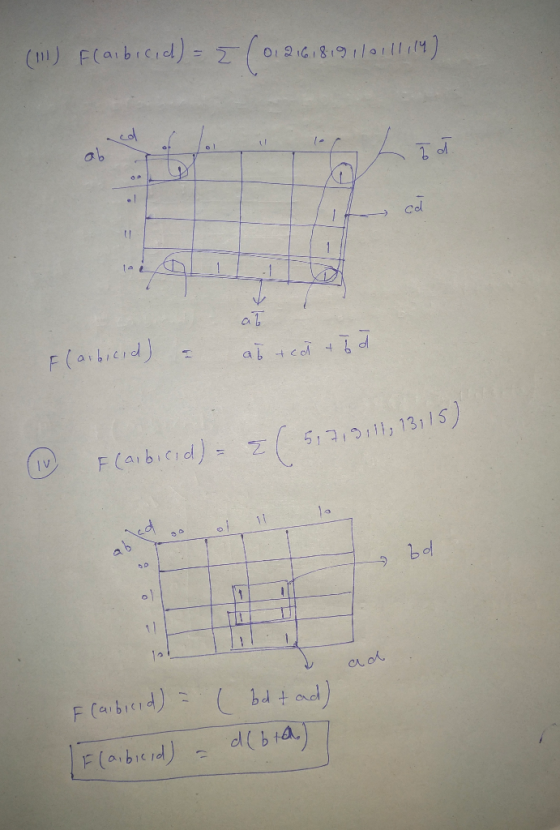

Answer #1

0 0
Add a comment
