Using basic circuit theory for a lumped RC circuit with an ideal voltage source with a...

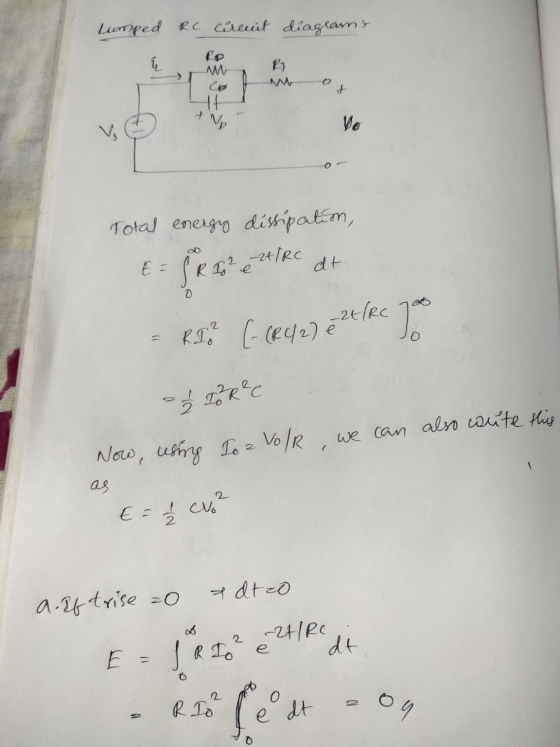

Using basic circuit theory for a lumped RC circuit with an ideal voltage source with a finite rise time (call it ), calculate the TOTAL AMOUNT OF ENERGY DISSIPATED by the resistance for the following conditions.
a. Assume (i.e. a step input response) Trise Trise = 0

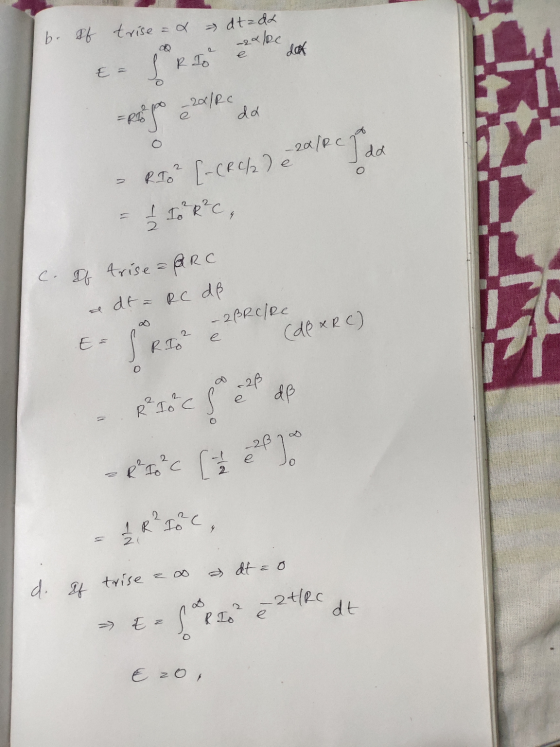

b. Assume Trise =α
c. Assume Trise = βRC
d. Assume Trise →∞
Homework Answers
