Derive the general potential expression for conducting sphere and charge distribution?
Homework Answers

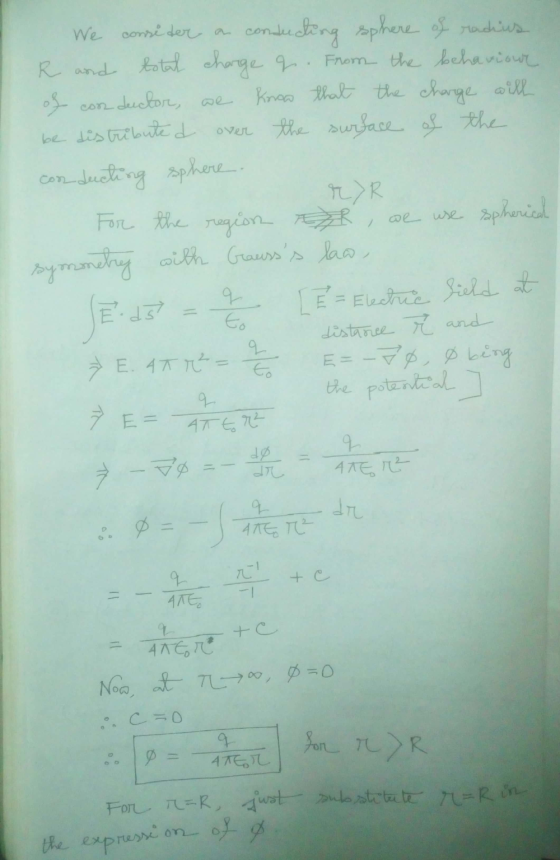

I have used Gauss's law to find electric field due to to a
conducting sphere and then by integrating, found out the potential.
Then, from the concept of superposition principle, I found out
expressions for potentials for different charge
distributions.
Add Answer to:
Derive the general potential expression for conducting sphere and
charge distribution?
Calculate the potential due to a point charge q in the presence of a conducting sphere...
Calculate the potential due to a point charge q in the presence of a conducting sphere at constant potential V. Radius of conducting sphere is R. The point charge is situated at a distance b from the center of the sphere (b>R) ( Image charge for a grounded conducting sphere is given ; q' = -(Rq)/b and distance r'= R^(2)/b
Immediately outside a conducting sphere of unknown charge sphere, the potential is 140 V. and radius...
Immediately outside a conducting sphere of unknown charge sphere, the potential is 140 V. and radius R the electric potential is 190 V, and 10.0 cm further from the (a) Determine the radius R of the sphere (in cm) 28 (b) Determine the charge on the sphere (in nC). c) The electric potential immediately outside another charged conducting sphere is 200 V and 10.0 cm farther from the center the magnitude of the electric field is 420 V/m. Determine the...
A conducting sphere of radius a is kept at a constant potential V0. A charge q...
A conducting sphere of radius a is kept at a constant potential V0. A charge q is brought at a distance d from the center of the sphere (d > a). Using the method of images: (a) Find the electric potential V (r, θ) in the region r > a. (b) Find the surface charge density on the surface of the sphere. (c) Find the force on the charge q.
Electric Potential 9-2 1) Picture a conducting sphere with a net positive charge on its surface....
Electric Potential 9-2 1) Picture a conducting sphere with a net positive charge on its surface. Discuss the followin estions with your lab partners. a) Why must all of the excess charge on the conductor reside on the surface of the sphere? b) We know that at equilibrium the electric field inside the conductor must be zero. Does this mean that the electric potential inside the sphere is zero? c) Is the potential changing inside the conducting sphere? d) How...
A conducting sphere with radius ? = 5 ?? has a charge ? = 8 ??....
A conducting sphere with radius ? = 5 ?? has a charge ? = 8 ??. It is placed at the center of a neutral conducting shell with inner radius ? = 10 ?? and outer radius ? = 15 ??, as shown in the diagram at right. 4. Let the electric potential be equal to zero at infinity. What are the electric potentials of the inner sphere and outer shell? 5. Sketch a graph of the electric potential as...
Problem 8 A charge Q is distributed uniformly on the surface of a conducting sphere of...
Problem 8 A charge Q is distributed uniformly on the surface of a conducting sphere of radius R. G) Determine the potential on the surface of the conducting sphere. (ii) Determine the energy stored on the sphere
A conducting sphere of radius a has a total charge Q on it. A charge q...
A conducting sphere of radius a has a total charge Q on it. A charge q is brought at a distance d from the center of the sphere (d > a). Using the method of images: (a) Find the electric potential V (r, θ) in the region r > a. (b) Find the surface charge density on the surface of the sphere. (c) Find the force on the charge q.
A solid conducting sphere of radius a is at the center of a hollow conducting sphere of inner radius b and outer radius c.
A solid conducting sphere of radius a is at the center of a hollow conducting sphere of inner radius b and outer radius c. The solid sphere carries a charge q > 0, the outer sphere carries an excess charge of -3q on its outer surface. derive expressions for the magnitude of the electric field in the following regions: Final answers not given.
A solid conducting sphere of radius a is at the center of a hollow conducting sphere of inner radius b and outer radius c.
Problem A solid conducting sphere of radius a is at the center of a hollow conducting sphere of inner radius b and outer radius c. The solid sphere carries a charge q > 0, the outer sphere carries an excess charge of -3q on its outer surface. derive expressions for the magnitude of the electric field in the following regions Final answers not given.]
A solid conducting sphere of radius a has a non-uniform volumetric charge density given bye()-r (where...
A solid conducting sphere of radius a has a non-uniform volumetric charge density given bye()-r (where k is some constant). Assume the sphere is surrounded by a concentric conducting shell of radius b and that the space between the sphere and the shell is filled with a weakly conducting fluid of conductivity σ 1. Find an expression that represents the resistance between the sphere and the shell assuming they are maintained at a potential difference ΔV. If the fluid is...
Immediately outside a conducting sphere of unknown charge sphere, the potential is 140 V. and radius R the electric potential is 190 V, and 10.0 cm further from the (a) Determine the radius R of the sphere (in cm) 28 (b) Determine the charge on the sphere (in nC). c) The electric potential immediately outside another charged conducting sphere is 200 V and 10.0 cm farther from the center the magnitude of the electric field is 420 V/m. Determine the...
Electric Potential 9-2 1) Picture a conducting sphere with a net positive charge on its surface. Discuss the followin estions with your lab partners. a) Why must all of the excess charge on the conductor reside on the surface of the sphere? b) We know that at equilibrium the electric field inside the conductor must be zero. Does this mean that the electric potential inside the sphere is zero? c) Is the potential changing inside the conducting sphere? d) How...
Problem 8 A charge Q is distributed uniformly on the surface of a conducting sphere of radius R. G) Determine the potential on the surface of the conducting sphere. (ii) Determine the energy stored on the sphere
A solid conducting sphere of radius a has a non-uniform volumetric charge density given bye()-r (where k is some constant). Assume the sphere is surrounded by a concentric conducting shell of radius b and that the space between the sphere and the shell is filled with a weakly conducting fluid of conductivity σ 1. Find an expression that represents the resistance between the sphere and the shell assuming they are maintained at a potential difference ΔV. If the fluid is...
