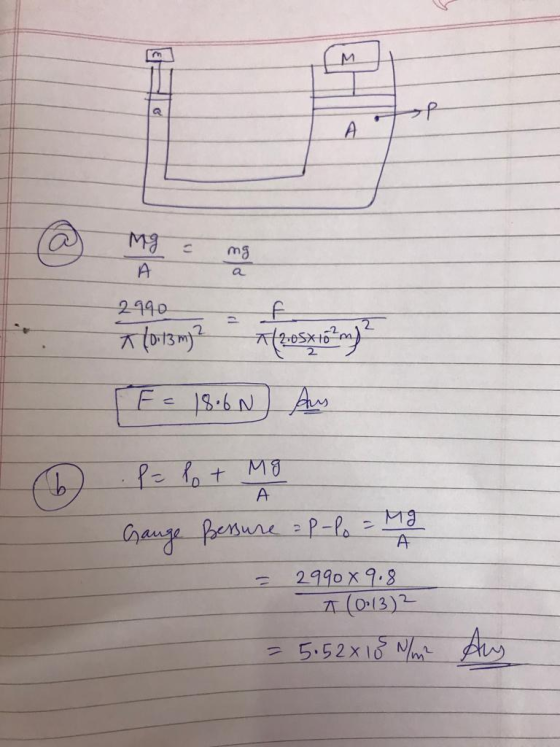

hydraulic lift with a 26.0 cm diameter is supporting the weight of a 2990 kg vehicle...
hydraulic lift with a 26.0 cm diameter is supporting the weight
of a 2990 kg vehicle (a large car or midsize SUV).
(a) What force must be exerted on the 2.05 cm diameter master
cylinder of this lift to support the vehicle resting on the other
cylinder, the 26.0 cm diameter cylinder of the lift itself?
| Tries 0/15 |
(b) What gauge pressure must the hydraulic lines be capable of
withstanding?
Homework Answers
Add Answer to:
hydraulic lift with a 26.0 cm diameter is supporting the weight
of a 2990 kg vehicle...
A hydraulic lift with a 25.0 cm diameter is supporting the weight of a 2930 kg...
A hydraulic lift with a 25.0 cm diameter is supporting the weight of a 2930 kg vehicle (a large car or midsize SUV). (a) What force must be exerted on the 2.00 cm diameter master cylinder of this lift to support the vehicle resting on the other cylinder, the 25.0 cm diameter cylinder of the lift itself? 184 N (b) What gauge pressure must the hydraulic lines be capable of withstanding?
What force (N) must be exerted on the master cylinder of a hydraulic lift to support...
What force (N) must be exerted on the master cylinder of a hydraulic lift to support the weight of a 2300.0 kg car resting on the slave cylinder? The master cylinder has a 1,70 cm diameter, while the slave's is 24.0 cm.
What force must be exerted on the master cylinder of a hydraulic lift to support the...
What force must be exerted on the master cylinder of a hydraulic lift to support the weight of a 2500-kg car (a large car) resting on the slave cylinder? The master cylinder has a 3.00-cm diameter and the slave has a 24.0-cm diameter. A) 136 N B) 383 N C) 245 N D) 178 N
Pascal’s principle: What force must be exerted on the master cylinder of a hydraulic lift to...
Pascal’s principle: What force must be exerted on the master cylinder of a hydraulic lift to support the weight of a 1800 kg car resting on the slave cylinder? The master cylinder has a 2.00 cm diameter and the slave has a 25.0 cm diameter. Pascal’s principle: A barber’s chair rests on a hydraulic piston 10 cm in diameter. The input side has a piston with cross-sectional area of 10 cm2 which is pumped on using a foot pedal. If...
The master cylinder of a hydraulic lift has a 0.01 m radius, while the slave has...
The master cylinder of a hydraulic lift has a 0.01 m radius, while the slave has a 0.20 m radius. a. What force in N must be exerted on the master cylinder of a hydraulic lift to support the weight of a 2000 kg car resting on the slave cylinder? b. What is the pressure in the fluid?
A hydraulic lift has pistons that are 1 cm and 15 cm in diameter. If a...
A hydraulic lift has pistons that are 1 cm and 15 cm in diameter. If a force of 180 N is applied to the master cylinder, what is the largest mass that the lift can support?
The output diameter and weight of a hydraulic lift are 89 cm and 1759 kg respectively....
The output diameter and weight of a hydraulic lift are 89 cm and 1759 kg respectively. What is the input radius if the input weight is 76 kg?
What is the largest vehicle (kg) it can lift if the diameter of the output is...
What is the largest vehicle (kg) it can lift if the diameter
of the output is 29.5 cm ? Answer use 3 sig figs
KHw1 PHYS 132 Problem 10.14 Constants The maximum gauge pressure in a hydraulic lift is 18.9 atm 1 atm 1.013 x 105 N/m2
How far must a 2.0-cm-diameter piston be pushed down into one cylinder of a hydraulic lift...
How far must a 2.0-cm-diameter piston be pushed down into one cylinder of a hydraulic lift to raise an 7-cm-diameter piston by 30 cm?
QUESTION 5 Assuming bicycle tires are perfectly flexible and support the weight of bicycle and rider...
QUESTION 5 Assuming bicycle tires are perfectly flexible and support the weight of bicycle and rider by pressure alone, calculate the total area of the tires in contact with the ground. The bicycle plus rider has a mass of 70 kg, and the gauge pressure in the tires is 5.4 105 Pa Express your answer in cm2 with 3 or more significant figures. QUESTION 6 How tall must a water-filed manometer be to measure blood pressures as high as 206...
What is the largest vehicle (kg) it can lift if the diameter
of the output is 29.5 cm ? Answer use 3 sig figs
KHw1 PHYS 132 Problem 10.14 Constants The maximum gauge pressure in a hydraulic lift is 18.9 atm 1 atm 1.013 x 105 N/m2
QUESTION 5 Assuming bicycle tires are perfectly flexible and support the weight of bicycle and rider by pressure alone, calculate the total area of the tires in contact with the ground. The bicycle plus rider has a mass of 70 kg, and the gauge pressure in the tires is 5.4 105 Pa Express your answer in cm2 with 3 or more significant figures. QUESTION 6 How tall must a water-filed manometer be to measure blood pressures as high as 206...
