A hydraulic lift with a 25.0 cm diameter is supporting the weight of a 2930 kg...

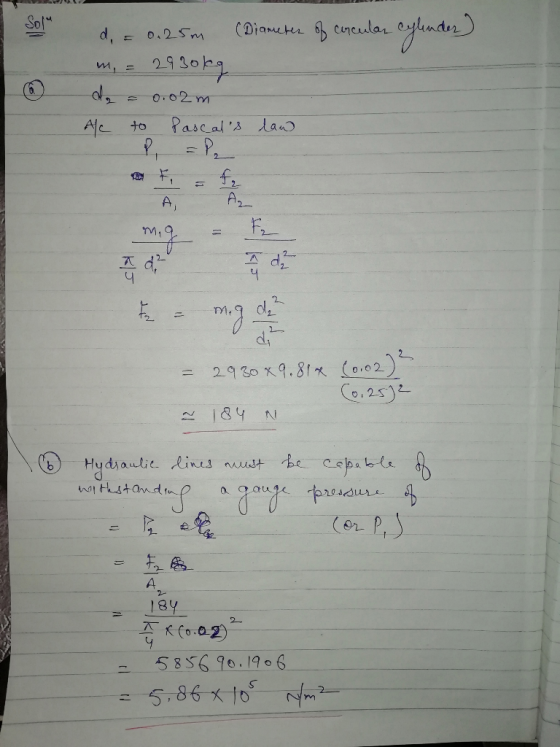

A hydraulic lift with a 25.0 cm diameter is supporting the
weight of a 2930 kg vehicle (a large car or midsize SUV).
(a) What force must be exerted on the 2.00 cm diameter master
cylinder of this lift to support the vehicle resting on the other
cylinder, the 25.0 cm diameter cylinder of the lift itself?
184 N
(b) What gauge pressure must the hydraulic lines be capable of
withstanding?
Homework Answers
Add Answer to:
A hydraulic lift with a 25.0 cm diameter is supporting the
weight of a 2930 kg...
hydraulic lift with a 26.0 cm diameter is supporting the weight of a 2990 kg vehicle...
hydraulic lift with a 26.0 cm diameter is supporting the weight of a 2990 kg vehicle (a large car or midsize SUV). (a) What force must be exerted on the 2.05 cm diameter master cylinder of this lift to support the vehicle resting on the other cylinder, the 26.0 cm diameter cylinder of the lift itself? Tries 0/15 (b) What gauge pressure must the hydraulic lines be capable of withstanding?
Pascal’s principle: What force must be exerted on the master cylinder of a hydraulic lift to...
Pascal’s principle: What force must be exerted on the master cylinder of a hydraulic lift to support the weight of a 1800 kg car resting on the slave cylinder? The master cylinder has a 2.00 cm diameter and the slave has a 25.0 cm diameter. Pascal’s principle: A barber’s chair rests on a hydraulic piston 10 cm in diameter. The input side has a piston with cross-sectional area of 10 cm2 which is pumped on using a foot pedal. If...
What force (N) must be exerted on the master cylinder of a hydraulic lift to support...
What force (N) must be exerted on the master cylinder of a hydraulic lift to support the weight of a 2300.0 kg car resting on the slave cylinder? The master cylinder has a 1,70 cm diameter, while the slave's is 24.0 cm.
What force must be exerted on the master cylinder of a hydraulic lift to support the...
What force must be exerted on the master cylinder of a hydraulic lift to support the weight of a 2500-kg car (a large car) resting on the slave cylinder? The master cylinder has a 3.00-cm diameter and the slave has a 24.0-cm diameter. A) 136 N B) 383 N C) 245 N D) 178 N
The master cylinder of a hydraulic lift has a 0.01 m radius, while the slave has...
The master cylinder of a hydraulic lift has a 0.01 m radius, while the slave has a 0.20 m radius. a. What force in N must be exerted on the master cylinder of a hydraulic lift to support the weight of a 2000 kg car resting on the slave cylinder? b. What is the pressure in the fluid?
A hydraulic lift has pistons that are 1 cm and 15 cm in diameter. If a...
A hydraulic lift has pistons that are 1 cm and 15 cm in diameter. If a force of 180 N is applied to the master cylinder, what is the largest mass that the lift can support?
The output diameter and weight of a hydraulic lift are 89 cm and 1759 kg respectively....
The output diameter and weight of a hydraulic lift are 89 cm and 1759 kg respectively. What is the input radius if the input weight is 76 kg?
In a hydraulic lift, the maximum gauge pressure is 16.1 atm. If the diameter of the...
In a hydraulic lift, the maximum gauge pressure is 16.1 atm. If the diameter of the output line is 19.3 cm, what is the heaviest vehicle that can be lifted?
A hydraulic car lift has an input piston of radius 2.00 cm and negligible weight. The...
A hydraulic car lift has an input piston of radius 2.00 cm and negligible weight. The output piston has a radius of 79.2 cm, and the total load on the output plungers is 18000 N. If the car (output piston) needs to be lifted 1.70 m, what volume of non-compressible hydraulic fluid must be pumped into the system?
A car on a hydraulic lift rests on a cylinder with a piston with a diameter...
A car on a hydraulic lift rests on a cylinder with a piston with a diameter of 30 cm. If a connecting cylinder is driven by compressed air with a pressure of 65 psi, how big the force approximately will be generated to the piston to lift the car? a. 3,000 lb. b. 4,500 lb. c. 6,000 lb. d. 8,000 lb e. 12,000 lb
