A capacitor is made by using two plates, each with area A and separated by a...

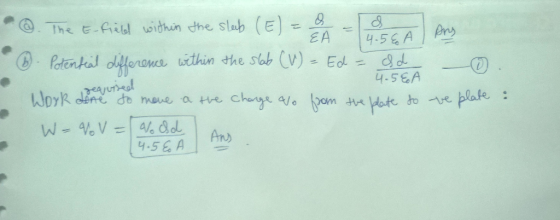

A capacitor is made by using two plates, each with area A and separated by a distance d. The upper plate has a positive charge +Q and the lower plate has a negative charge -Q. Then an insulating slab with electricity permitivity e= 4.5e0, having thickness a, with the same shape and size as the plates is inserted between them, parallel to the plates and not touching either plate.
a) Find an expression for the electric field at any point within the insulating slab.
b) Find the total amount of work required to move a positive test charge q0 from the positive plate with charge +Q to the negative plate with charge -Q
Homework Answers
Add Answer to:
A capacitor is made by using two plates, each with area A and
separated by a...
An air capacitor is madeby using two flat plates, each with area A, separated by a...
An air capacitor is madeby using two flat plates, each with
area A, separated by a distanced . Then a metal slab having
thickness a (less than d )and the sameshape and size as the plates
is inserted between them, parallel tothe plates and not touching
either plate.
a) What is the capacitance of this arrangement?
C = C0 d/(d-a)
b) Express the capacitance as a multiple of the
capacitanceC0 when the metal slab is not present?
c) Discuss what...
8. (10 points) A parallel plate capacitor has plate area A, the plates are separated by...
8. (10 points) A parallel plate capacitor has plate area A, the plates are separated by a distance s, and the plates carry charges ±Q. Find the work required to move an additional charge q from the negative plate to the positive plate. (The space between the plates is vacuum.)
A parallel-plate capacitor consists of two plates, each with an area of 29 cm2 separated by...
A parallel-plate capacitor
consists of two plates, each with an area of 29 cm2 separated by
3.0 mm. The charge on the capacitor is 9.8 nC . A proton is
released from rest next to the positive plate. How long does it
take for the proton to reach the negative plate?
A parallel-plate capacitor consists of two plates, each with an area of 29 cm2 separated by 3.0 mm. The charge on the capacitor is 9.8 nC. A proton is...
A parallel-plate capacitor has plates of area 0.13 m2 and a separation of 1.9 cm. A battery...
A parallel-plate capacitor has plates of area 0.13 m2 and a separation of 1.9 cm. A battery charges the plates to a potential difference of 150 V and is then disconnected. A dielectric slab of thickness 9.3 mm and dielectric constant 4.0 is then placed symmetrically between the plates. (a) What is the capacitance before the slab is inserted? (b) What is the capacitance with the slab in place? What is the free charge q (c) before and (d) after the slab is inserted? What is the magnitude of the...
A parallel-plate capacitor has an area of 5.10 cm^2 and the plates are separated by 1.20...
A parallel-plate capacitor has an area of 5.10 cm^2 and the plates are separated by 1.20 mm. The capacitor stores a charge of 428.0 pC. A.) What is the potential difference across the plates of the capacitor? The permitivity of a vacuum is 8.8542 × 10−12 C 2 /N · m^2 . Answer in units of V. B.) What is the magnitude of the uniform electric field in the region that is located between the plates? Answer in units of...
Two parallel plates, each having area A- 2737cm are connected to the terminals of a battery...
Two parallel plates, each having area A- 2737cm are connected to the terminals of a battery of voltage Vb 6 V as shown. The plates are separated by a distance d 0.38cm. You may assume (contrary to the drawing) that the separation between the plates is small compared to a linear dimension of the plate 1) What is C, the capacitance of this parallel plate capacitor? Submit 2) What is Q, the charge stored on the top plate of the...
The space between the plates of a parallel-plate capacitor, shown below, is filled with two slabs of different dielectric materials
Problem 5 The space between the plates of a parallel-plate capacitor, shown below, is filled with two slabs of different dielectric materials. The slab at the top has thickness 2d and a relative dielectric constant of er1 = 3 and the one at the bottom has thickness d and a relative dielectric constant of er2 = 2. The capacitor plates have surface area S. a. Assume a total charge of +Q on the top plate and -Q on the bottom plate. Find...
A parallel-plate capacitor consists of two plates, each with an area of 25cm2 separated by 3.0...
A parallel-plate capacitor consists of two plates, each with an area of 25cm2 separated by 3.0 mm. The charge on the capacitor is 9.3nC . A proton is released from rest next to the positive plate. How long does it take for the proton to reach the negative plate?
A parallel-plate capacitor consists of two plates, each with an area of 23 cm2 separated by...
A parallel-plate capacitor consists of two plates, each with an area of 23 cm2 separated by 3.0 mm. The charge on the capacitor is 8.8 nC . A proton is released from rest next to the positive plate. How long does it take for the proton to reach the negative plate?
Two parallel plates, each having area A = 2082cm2 are connected to the terminals of a...
Two parallel plates, each having area A = 2082cm2 are
connected to the terminals of a battery of voltage Vb =
6 V as shown. The plates are separated by a distance d = 0.54cm.
You may assume (contrary to the drawing) that the separation
between the plates is small compared to a linear dimension of the
plate.
1)What is C, the capacitance of this parallel plate
capacitor?μF
2)What is Q, the charge stored on the top plate of the...
An air capacitor is madeby using two flat plates, each with
area A, separated by a distanced . Then a metal slab having
thickness a (less than d )and the sameshape and size as the plates
is inserted between them, parallel tothe plates and not touching
either plate.
a) What is the capacitance of this arrangement?
C = C0 d/(d-a)
b) Express the capacitance as a multiple of the
capacitanceC0 when the metal slab is not present?
c) Discuss what...
8. (10 points) A parallel plate capacitor has plate area A, the plates are separated by a distance s, and the plates carry charges ±Q. Find the work required to move an additional charge q from the negative plate to the positive plate. (The space between the plates is vacuum.)
A parallel-plate capacitor
consists of two plates, each with an area of 29 cm2 separated by
3.0 mm. The charge on the capacitor is 9.8 nC . A proton is
released from rest next to the positive plate. How long does it
take for the proton to reach the negative plate?
A parallel-plate capacitor consists of two plates, each with an area of 29 cm2 separated by 3.0 mm. The charge on the capacitor is 9.8 nC. A proton is...
Two parallel plates, each having area A- 2737cm are connected to the terminals of a battery of voltage Vb 6 V as shown. The plates are separated by a distance d 0.38cm. You may assume (contrary to the drawing) that the separation between the plates is small compared to a linear dimension of the plate 1) What is C, the capacitance of this parallel plate capacitor? Submit 2) What is Q, the charge stored on the top plate of the...
Two parallel plates, each having area A = 2082cm2 are
connected to the terminals of a battery of voltage Vb =
6 V as shown. The plates are separated by a distance d = 0.54cm.
You may assume (contrary to the drawing) that the separation
between the plates is small compared to a linear dimension of the
plate.
1)What is C, the capacitance of this parallel plate
capacitor?μF
2)What is Q, the charge stored on the top plate of the...
