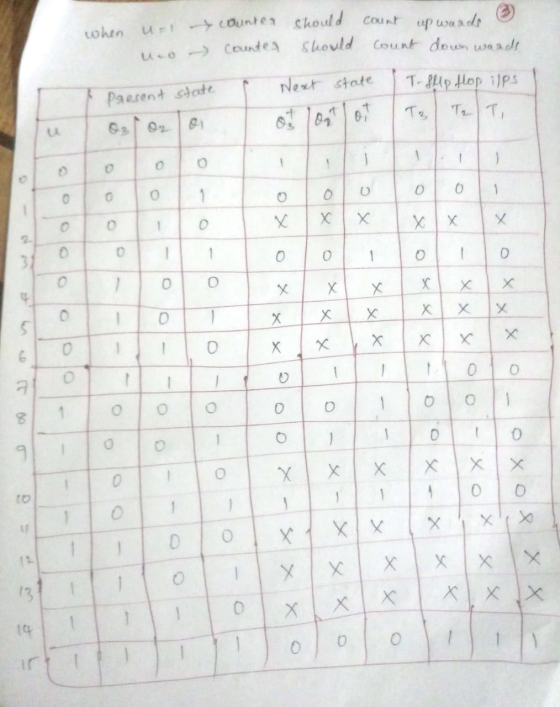

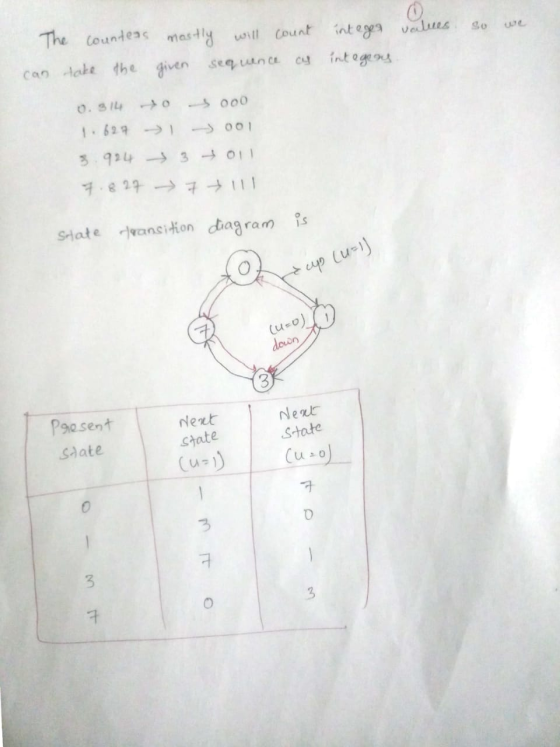

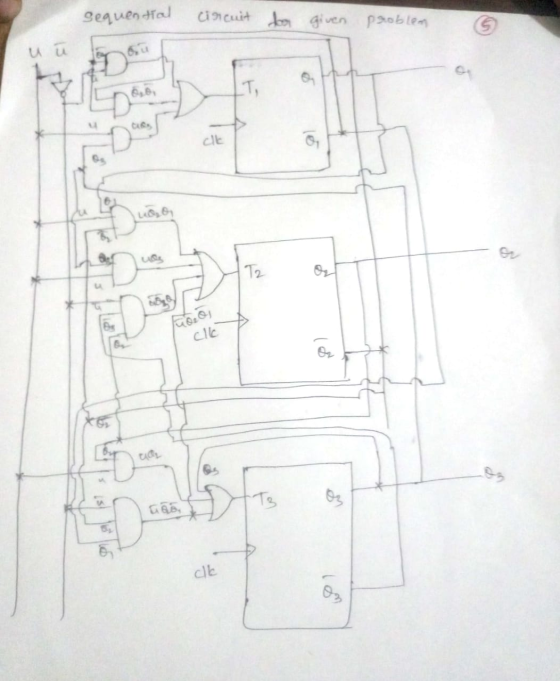

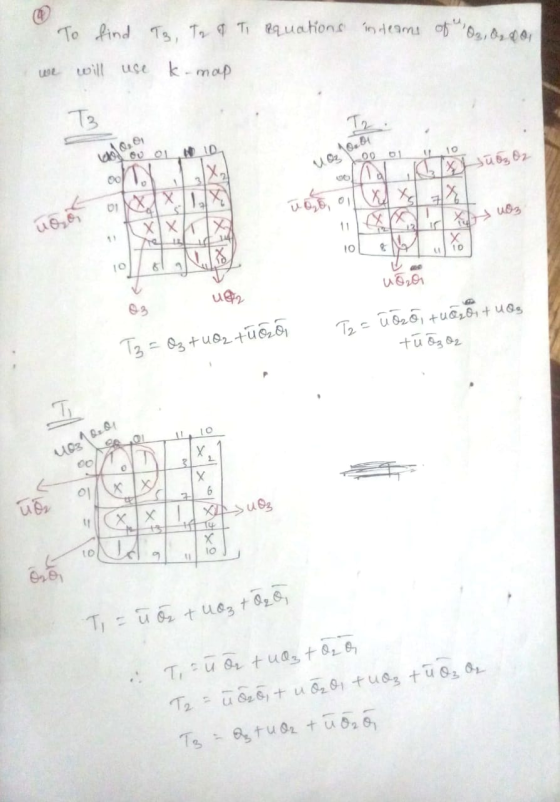

Design a counter that will count the sequence: 0.314, 1.627, 3.924, 7.827. It has an input u; when u is 1 it counts the sequence from left to right, when 0 it counts in the opposite direction. It must be robust. Show all steps right to logic equations and gates.
Design a counter that will count the sequence: 0.314, 1.627, 3.924, 7.827. It has an input...
Design a 3 bits binary counter that count up from 000 to 111 and recycles according to the following specification: E is the enable input, if E-0 the counter is disabled and remains in its current state even though clock pulses are applied to the flip-flops. And if E-1 the counter is enabled and count upward with the sequence 000,001,010,011,100,101,110, 111 The second input S is the reset if s-1 the counter is reset to the 000 state, is S-o...
Up-Down counter with enable using JK flip-flops: Design, construct and test a 2-bit counter that counts up or down. An enable input E determines whether the counter is on or off. If E = 0, the counter is disabled and remains in the present count even though clock pulses are applied to the flip-flops. If E= 1, the counter in enabled and a second input, x, determines the count direction. If x= 1, the circuit counts up with the sequence...
Design a two-bit up/down binary counter using D flip-flops that can count in binary from 0 to 7. When the control input x is 0, the circuit counts down, and when it is 1, the circuit counts up. (a) Obtain the state table of the two-bit counter. (b) Obtain the state diagram (c) Draw the logic diagram of the circuit.
Part Ii Using positive logic, and an input variable x, design a MOD 4 Synchronous Counter to count in a 2753,2753, etc. sequence vhen -0, and will count in a 3572.3572 etc. sequence vhen 1. Use 74112 Dual JK flip flops with Preset and Clear capabilities
Part Ii Using positive logic, and an input variable x, design a MOD 4 Synchronous Counter to count in a 2753,2753, etc. sequence vhen -0, and will count in a 3572.3572 etc. sequence vhen...
Design a clocked synchronous counter with output sequence: 1, 3, 5,7, 9,11, 13, 15, 14, 12, 10,8, 6,4, 2, 0, 1,.. using Enabled D Flip-Flops. Show the characteristic and excitation equations of the Flip-Flops, as well as the state-transition table and the logic diagram of the counter.
all please
Design a 3-bit counter that has only one input, w. It counts down 7, 6,5,... 0, 7,.. whenever w-0, and counts up 0,1,2...7,0... when w 1 The output z-1, when the state of the counter is a prime number. Otherwise, z-0 1. List Inputs, Outputs and the count sequence. (5pts) 2. Draw the finite State machine for the counter. (10pts) 3. Draw the state transition table <extra columns for the flip flops values> (20pts) armed resource/content/1/case%20study.template.docx 4. Design...
Please show process and I will rate faster!!!

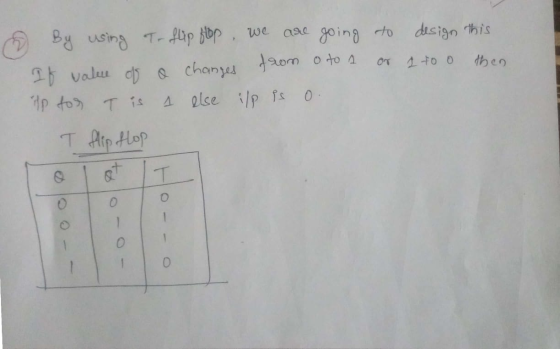

2. Design a two-bit up/down binary counter using T-fip-flops that can count in binary from 0 to 3. When the control input x is 0, the circuit counts up and when it is 1, the circuit counts down. (a) Obtain the state table of the two-bit counter (P. S., Input, N. S., Output). (b) Obtain the state diagram. (c) Draw the logic diagram of the circuit.
14?
14. Design a cyclic counter that produces the binary sequence 0, 2, 3,1. o..if the control signal X is 0 but produces the binary sequence 0, 1,3,2.0, if the control signal X is1.Use D flip-flops. (a) Draw the state diagram; (6 points (b) Draw the input, present state-next state, excitation table: (6 points) (c) Derive the minimal SOP expressions for the D inputs of the flip-flops using K-maps. Draw the logic circuit realization of the counter, using only NAND...
Design a counter that counts in the sequence assigned to you. 000, 011, 101, 111, 010, 110, (repeat) 000, ... Use D flip-flops, NAND gates, and inverters. Draw your circuit explicitly showing all connections to gate and flip-flop inputs. Explicitly means that you should draw in all wires, don’t just label the inputs and outputs. Show switches connected to the Preset and Clear inputs of the flip-flops. Use one switch for all clears and a separate switch for each preset....
(a) Design an asynchronous Binary Coded Decimal (BCD) count-up counter using JK flip-flops. Draw the counter circuit clearly showing the configuration of the JK flip-flops and the necessary logic gate(s). Sketch the input and output waveforms of this counter (7 Marks) (b) The binary up/down counter for a cargo lift controller in a 7-storey building has an up-down (UID) control input and a buzzer output (B). The buzzer will sound B 1) when the lift is at level 1 or...
