A 2.5 kg block rests on a 30 ∘ slope and is attached by a string...

A 2.5 kg block rests on a 30 ∘ slope and is attached by a string of negligible mass to a solid drum of mass 0.70 kg and radius 3.6 cm , as shown in the figure (Figure 1) . When released, the block accelerates down the slope at 1.3 m/s2 . What is the coefficient of friction between block and slope?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

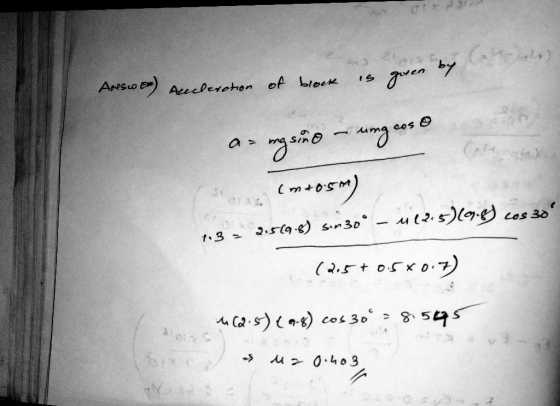

Answer #1

0 0
