Should the time constant be different for the charging and discharging capacitor? Why or why not?
Should the time constant be different for the charging and discharging capacitor? Why or why not?
Homework Answers
The charging or discharging time constant is equal to RC only as whether it is charging or discharging the capacitance and resistor values remain the same
Add Answer to:
Should the time constant be different for the charging and
discharging capacitor? Why or why not?
1 a) Describe what happens to voltage during both charging and discharging of a capacitor. b)...
1 a) Describe what happens to voltage during both charging and discharging of a capacitor. b) Describe what happens to current during both charging and discharging of a capacitor. c) Describe how changing the resistance affects both charging and discharging of a capacitor.
3 Capacitor Discharging Current The capacitor voltage versus time in a discharging series RC circuit, as...
3 Capacitor Discharging Current The capacitor voltage versus time in a discharging series RC circuit, as shown in the Background Information Figure 2, is Vo(t) = V, expl-Roc), +20 (3) where V, is the source voltage in Volts, exp(x) is the exponential functione, Rp is the discharging resistance in Ohms (N), C is the capacitance in Farads. To = Rp is the discharging time constant in seconds. Derive an expression for the capacitor discharging current versus time, .(t), in terms...
Thought Experiment: Explain what is physically happening to the charge in the RC circuit during charging and discharging cycles (i.e. Why does the capacitor charge/discharge quickly at first but slow...
Thought Experiment: Explain what is physically happening to the charge in the RC circuit during charging and discharging cycles (i.e. Why does the capacitor charge/discharge quickly at first but slows down with more time? Where is the charge going?). In the DC Electrical Circuits lab, we used the analogy of water flowing through a pipe to visualize Ohm's law can you extend that analogy to the RC circuit? *
Thought Experiment: Explain what is physically happening to the charge in...
7.What's so special about 0.63 and 0.37 in the cases of charging and discharging a capacitor...
7.What's so special about 0.63 and 0.37 in the cases of charging and discharging a capacitor with a Resistor in the circuit? Explain each case?
For charging process, the voltage across the capacitor as a function of time is given by,...
For charging process, the voltage across the capacitor as a function of time is given by, Vc = [1 - exp(-t/)]. (a) When the time is twice the time constant, what percentage of the maximum voltage is on the capacitor? (b) Find the time it took, in terms of the time constant, for the voltage across the capacitor to be 30% of the maximum voltage. Resistor 1000 Ohms Capacitor 1 Farad Power Supply set to 6 Volts
Looking at a RC circuit, using resistors and capacitors, calculate the RC time constant for discharging...
Looking at a RC circuit, using resistors and capacitors, calculate the RC time constant for discharging and charging capacitors. The voltage from the power supply is 10V. V = 0.63*V0, V = 0.37*V0
Resistor - 100 mega-ohms capacitor - .47 micro farads i am having an extremely hard time finding...
Resistor - 100 mega-ohms
capacitor - .47 micro farads
i am having an extremely hard time finding the theoretical
time constant and the experimental ones.
Format Painter 龘· . ▼ 窖三三一嚚 Merge & Center s-90 , Clipboard Font Alignment Number 0 2.81 7.8 15.4 25.76 0 0.5 1 1.5 Charging a Capacitor 38.732.5 2 54.95 74.26 97.67 124.45 156.24 193.33 235.43 284.47 3.5 4 4.5 5.5 50 100 150 Time (s) 6.5 seconds voltage seconds voltage 10 9.5 Discharging a...
help please, i dont know how to do it Charging A 1000uF capacitor was charged using...
help please, i dont know how to do it
Charging A 1000uF capacitor was charged using a battery of Vo = 10V via two resistors Ry = 47kN and R2 = 27k1. The simulation was run for a total time duration of 300s. Fig 1(a) shows the charging circuit used for the simulation, Fig 1() shows the Voltage vs. time (V-t) response of the circuit charging via Rę = 47kN and Fig 1(c) shows the (V-1) response of the circuit...
Pre-lab to Lab 4 - Charging, Discharging and Combination of Capacitors Name: Lab Section: 800ID#: 1)...
Pre-lab to Lab 4 - Charging, Discharging and Combination of Capacitors Name: Lab Section: 800ID#: 1) When a capacitor is connected to a battery, it gets fully charged: (1 point) a) Instantaneously b) After some time 't c) capacitor does not store charge 2) A capacitor of capacitance C = 1uF is connected to a resistor R = 100k. What is the time constant? (1 point) 3) At t-T RC, calculate the ratio 70 during discharging of a capacitor. Show...
Charging Capacitor 3. In the below charging circuit the switch is closed at t-Os and the...
Charging Capacitor 3. In the below charging circuit the switch is closed at t-Os and the capacitor begins charging. R. -0 C. a) Show that: dt C c) Show that the following equation is how that the charging function for the capacitor is: Q(t) = VC(1-eyec) d) If V-20V, C-50nF, and R-100092, compute the time constant. What is the total charge and voltage across the capacitor at t-60μ
3 Capacitor Discharging Current The capacitor voltage versus time in a discharging series RC circuit, as shown in the Background Information Figure 2, is Vo(t) = V, expl-Roc), +20 (3) where V, is the source voltage in Volts, exp(x) is the exponential functione, Rp is the discharging resistance in Ohms (N), C is the capacitance in Farads. To = Rp is the discharging time constant in seconds. Derive an expression for the capacitor discharging current versus time, .(t), in terms...
Thought Experiment: Explain what is physically happening to the charge in the RC circuit during charging and discharging cycles (i.e. Why does the capacitor charge/discharge quickly at first but slows down with more time? Where is the charge going?). In the DC Electrical Circuits lab, we used the analogy of water flowing through a pipe to visualize Ohm's law can you extend that analogy to the RC circuit? *
Thought Experiment: Explain what is physically happening to the charge in...

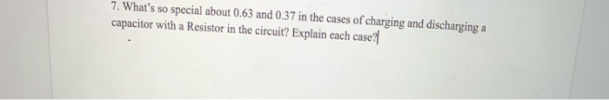

7.What's so special about 0.63 and 0.37 in the cases of charging and discharging a capacitor with a Resistor in the circuit? Explain each case?
Resistor - 100 mega-ohms
capacitor - .47 micro farads
i am having an extremely hard time finding the theoretical
time constant and the experimental ones.
Format Painter 龘· . ▼ 窖三三一嚚 Merge & Center s-90 , Clipboard Font Alignment Number 0 2.81 7.8 15.4 25.76 0 0.5 1 1.5 Charging a Capacitor 38.732.5 2 54.95 74.26 97.67 124.45 156.24 193.33 235.43 284.47 3.5 4 4.5 5.5 50 100 150 Time (s) 6.5 seconds voltage seconds voltage 10 9.5 Discharging a...
help please, i dont know how to do it
Charging A 1000uF capacitor was charged using a battery of Vo = 10V via two resistors Ry = 47kN and R2 = 27k1. The simulation was run for a total time duration of 300s. Fig 1(a) shows the charging circuit used for the simulation, Fig 1() shows the Voltage vs. time (V-t) response of the circuit charging via Rę = 47kN and Fig 1(c) shows the (V-1) response of the circuit...
Pre-lab to Lab 4 - Charging, Discharging and Combination of Capacitors Name: Lab Section: 800ID#: 1) When a capacitor is connected to a battery, it gets fully charged: (1 point) a) Instantaneously b) After some time 't c) capacitor does not store charge 2) A capacitor of capacitance C = 1uF is connected to a resistor R = 100k. What is the time constant? (1 point) 3) At t-T RC, calculate the ratio 70 during discharging of a capacitor. Show...
Charging Capacitor 3. In the below charging circuit the switch is closed at t-Os and the capacitor begins charging. R. -0 C. a) Show that: dt C c) Show that the following equation is how that the charging function for the capacitor is: Q(t) = VC(1-eyec) d) If V-20V, C-50nF, and R-100092, compute the time constant. What is the total charge and voltage across the capacitor at t-60μ
