A power plant produces 1000 MW to supply a city 40 km away. Current flows from...

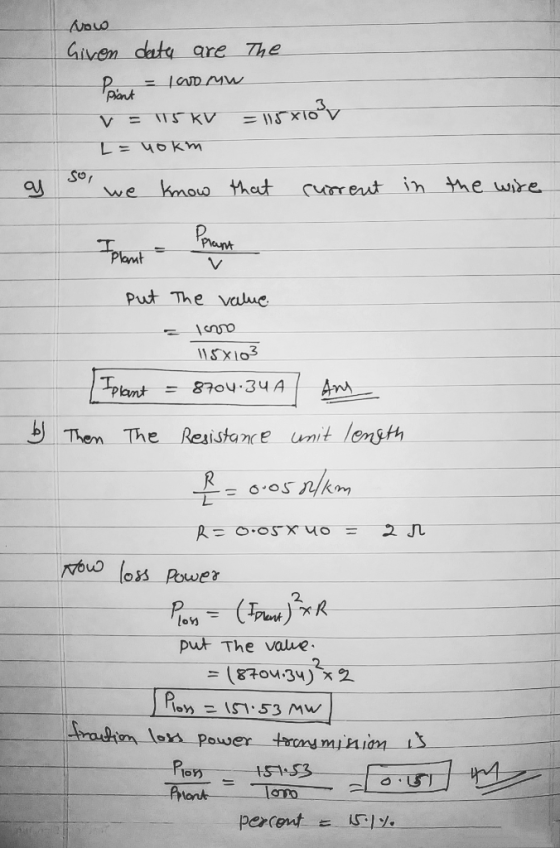

A power plant produces 1000 MW to supply a city 40 km away. Current flows from the power plant on a single wire of resistance 0.050Ω/km, through the city, and returns via the ground, assumed to have negligible resistance. At the power plant the voltage between the wire and ground is 115 kV.
What is the current in the wire?
What fraction of the power is lost in transmission?
Homework Answers
Add Answer to:
A power plant produces 1000 MW to supply a city 40 km away.
Current flows from...
4. A high-voltage transmission line with a resistance of 0.31.2/km carries a current of 1000 A....
4. A high-voltage transmission line with a resistance of 0.31.2/km carries a current of 1000 A. The line is at a potential of 700kV at the power station and carries the current to a city located 160 km from the station. What is the power loss due to resistance in the line? b) What fraction of the transmitted power does this loss represent?
A 3-phase 60 Hz 50 km transmission line delivers 20 MW of power to a load...
A 3-phase 60 Hz 50 km transmission line delivers 20 MW of power to a load at 69 kV and a power factor of 0.8 lagging. The line has the following parameters r = 0.1112/km L = 1.11 mH/km C = negligible Determine: The line impedance. (4 Marks) The "receiving end" phase voltage and current (7 Marks) The "sending end" voltage and current (10 Marks) The voltage regulation. (4 Marks)
power system A single-circuit 60-Hz high voltage power transmission line is 370 km (230 mi) long....
power system
A single-circuit 60-Hz high voltage power transmission line is 370 km (230 mi) long. The conductors are Rook with flat horizontal configuration and 7.25 ms=(23.8 ft.) conductor spacing. The load on the line is 125 MW at 100% power factor. Use attached Tables A3 to A3to determine; The sending end voltage Vs The sending end current Is The sending end power Ps The percentage voltage regulation The transmission efficiency Given that Ds for the Rook conductor is 0.0327...
A.)Engineers are tasked with calculating the dimensions of a transmission line from a power plant to...
A.)Engineers are tasked with calculating the dimensions of a transmission line from a power plant to a city 100 km away. The power plant outputs 765,000 V, and the transmission line must transport a minimum of 500,000 A of current. An intern looks up the value of resistivity from a database with the value of ?=1.29 ×10−8 Ω?. What is the diameter the wire the engineers need to use? Show work. B.) The intern was in the wrong database and...
I need help to solve this questions about Generator Governor Droop and Transmission Line. A complete...
I
need help to solve this questions about Generator Governor Droop
and Transmission Line. A complete solutions with answers would be
great. Thank you
Generation Question 1 to 5 relate to the following grid connected generator. A governor-controlled, steam-driven 450 MW synchronous generator with 5% droop is synchronized to the 60 Hz grid and its load set-point adjusted to deliver 300 MW to the grid. Q1. (a) 000 What is the actual droop of the generating unit? 0.0225 Hz/MW (b)...
PHYSathe PM 1 Phy143 T3 Elec-Man, Material Properties, Fluids F16 - Schermerhorn Mainly from homework 6,...
PHYSathe PM 1 Phy143 T3 Elec-Man, Material Properties, Fluids F16 - Schermerhorn Mainly from homework 6, 7 and 8 1) if a current is flowing in a wire at point A out of this test paper, draw the magnetic field vector at point B to the right and point C below А, В 2) Find the current in amps to produce a magnetic field 3 of 02.67 Tesla at a position r = 2.25 m away from a long wire...
How can we assess whether a project is a success or a failure? This case presents...
How can we assess whether a project is a success or a
failure?
This case presents two phases of a large business transformation project involving the implementation of an ERP system with the aim of creating an integrated company. The case illustrates some of the challenges associated with integration. It also presents the obstacles facing companies that undertake projects involving large information technology projects. Bombardier and Its Environment Joseph-Armand Bombardier was 15 years old when he built his first snowmobile...
4. A high-voltage transmission line with a resistance of 0.31.2/km carries a current of 1000 A. The line is at a potential of 700kV at the power station and carries the current to a city located 160 km from the station. What is the power loss due to resistance in the line? b) What fraction of the transmitted power does this loss represent?
A 3-phase 60 Hz 50 km transmission line delivers 20 MW of power to a load at 69 kV and a power factor of 0.8 lagging. The line has the following parameters r = 0.1112/km L = 1.11 mH/km C = negligible Determine: The line impedance. (4 Marks) The "receiving end" phase voltage and current (7 Marks) The "sending end" voltage and current (10 Marks) The voltage regulation. (4 Marks)
power system
A single-circuit 60-Hz high voltage power transmission line is 370 km (230 mi) long. The conductors are Rook with flat horizontal configuration and 7.25 ms=(23.8 ft.) conductor spacing. The load on the line is 125 MW at 100% power factor. Use attached Tables A3 to A3to determine; The sending end voltage Vs The sending end current Is The sending end power Ps The percentage voltage regulation The transmission efficiency Given that Ds for the Rook conductor is 0.0327...
I
need help to solve this questions about Generator Governor Droop
and Transmission Line. A complete solutions with answers would be
great. Thank you
Generation Question 1 to 5 relate to the following grid connected generator. A governor-controlled, steam-driven 450 MW synchronous generator with 5% droop is synchronized to the 60 Hz grid and its load set-point adjusted to deliver 300 MW to the grid. Q1. (a) 000 What is the actual droop of the generating unit? 0.0225 Hz/MW (b)...
PHYSathe PM 1 Phy143 T3 Elec-Man, Material Properties, Fluids F16 - Schermerhorn Mainly from homework 6, 7 and 8 1) if a current is flowing in a wire at point A out of this test paper, draw the magnetic field vector at point B to the right and point C below А, В 2) Find the current in amps to produce a magnetic field 3 of 02.67 Tesla at a position r = 2.25 m away from a long wire...
How can we assess whether a project is a success or a
failure?
This case presents two phases of a large business transformation project involving the implementation of an ERP system with the aim of creating an integrated company. The case illustrates some of the challenges associated with integration. It also presents the obstacles facing companies that undertake projects involving large information technology projects. Bombardier and Its Environment Joseph-Armand Bombardier was 15 years old when he built his first snowmobile...
