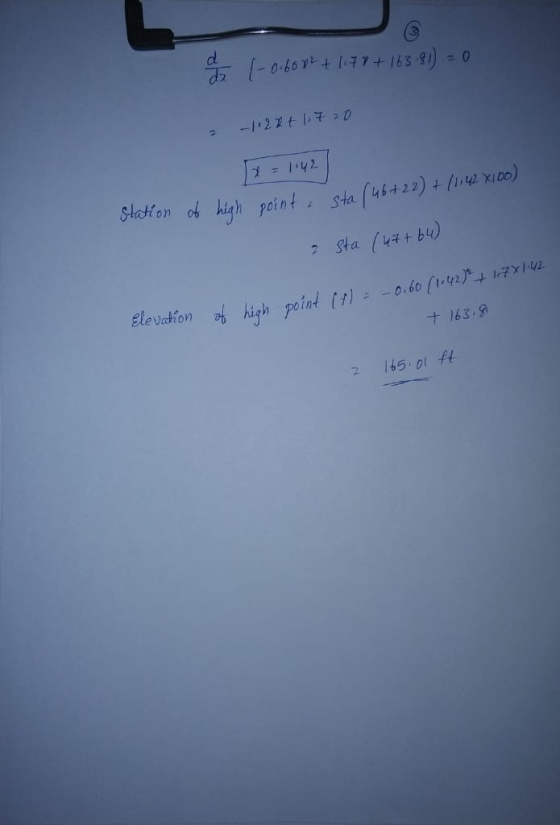

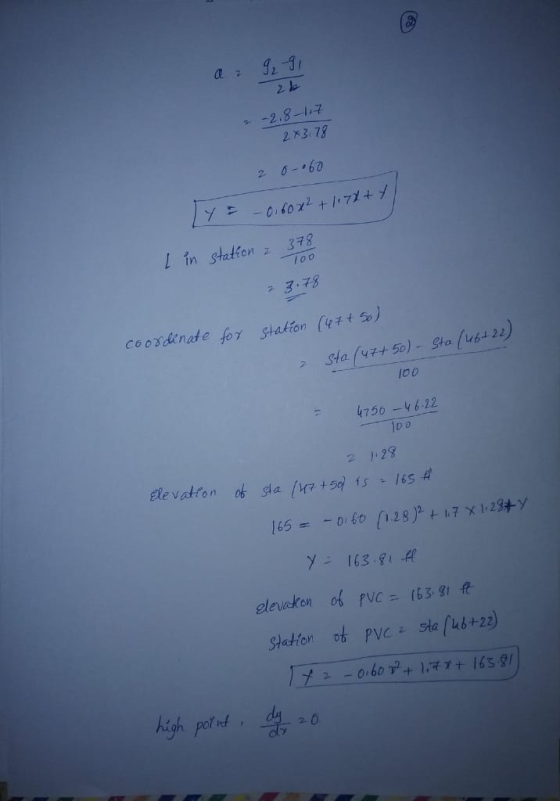

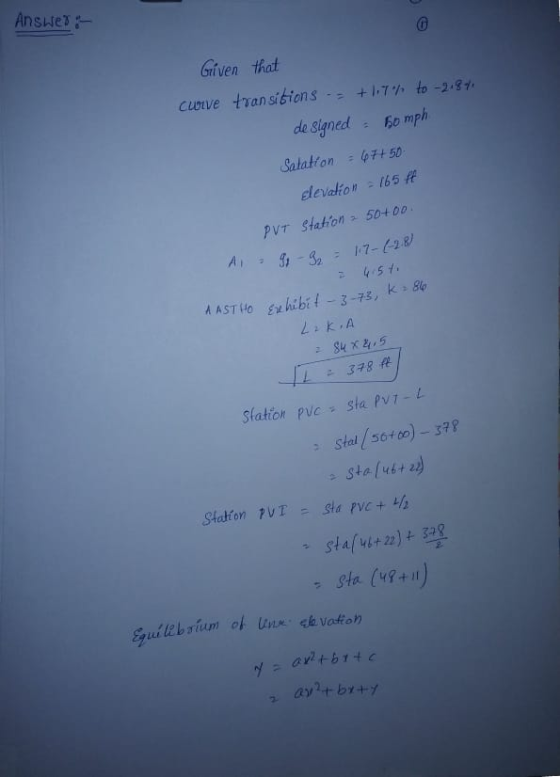

A crest curve transitions from a +1.7% to -2.8% and is designed for 50 mph. Station 47+50 is

at elevation 165 ft. The PVT is at station 50+00. What is the station and elevation of the highest

point on the curve? What is the station and elevation of the PVC?

engineering Civil-Engineering

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

A 500-ft-long equal-tangent crest vertical curve connects tangents that intersect at station 340 + 00 and...

A 500-ft-long equal-tangent crest vertical curve connects tangents that intersect at station 340 + 00 and elevation 1322 ft. The initial grade is +4.0% and the final grade is -2.5%. Determine the elevation and stationing of the high point, PVC, and PVT. Solve this problem using parabolic equation and offset method.
A 1080 ft long tangent crest vertical curve connects tangents ( G1= 4% , G2 =...

A 1080 ft long tangent crest vertical curve connects tangents ( G1= 4% , G2 = -2.8%). The two stations intersect at ghost station 640+00 where elevation is 1325.000 ft. Determine the stationing and elevations of the following points. 1. PVC 2. PVT 3. High point 4. 640+20
A 5 degree curve (measured at the centerline of the inside lane) is being designed for...

A 5 degree curve (measured at the centerline of the inside lane) is being designed for a highway with a design speed of 60 mph. What is the closest any roadside object may be placed to the centerline of the inside lane of the roadway while maintaining adequate stopping sight distance? Assume lane widths are 12 feet. 3) A 520-ft long equal tangent crest vertical curve connects tangents that intersect at station 340+00 and elevation 1325 ft. The initial grade...

An equal tangent crest vertical curve is designed for 60 mph. The initial grade is +4.0%...

An equal tangent crest vertical curve is designed for 60 mph. The initial grade is +4.0% and the final grade is negative. What is the elevation difference between the PVC and high point of the curve?
For a crest vertical curve, with the following data, Station of BVC: 10+50 Station of Vertex:...

For a crest vertical curve, with the following data, Station of BVC: 10+50 Station of Vertex: 18+00 Station of EVC: 20+50 Elevation of Vertex: 1000ft Beginning Grade: +3.50% Ending Grade: -3.50% a) At what station is the highest point located? b) What is the elevation of the high point? c) An information center is located at station 18+50.98, what is the elevation of the information center? d) What is the AASHTO K-value for the vertical curve?
A crest VC with 3% tangent grades (i.e., +3 to -3) has the PVI at STA...

A crest VC with 3% tangent grades (i.e., +3 to -3) has the PVI at STA 120+00 with the offset of 9.00 ft. Calculate the length of VC, STA of PVC and PVT and curve elevation at each whole station in between if the curve elevation at PVC is 100.00 ft.

4. A vertical curve is designed for 55 mi/h and has an initial grade of 2.5%...

4. A vertical curve is designed for 55 mi/h and has an initial grade of 2.5% and a final grade of -1.0%. The PVT is at station 114 + 50. It is known that a point on the curve at station 112 + 35 is at elevation 245 ft. What is the stationing and elevation of PVC?
9:381 LTE Problem 1 A crest vertical curve is to be designed to join a +2% grade with a-2% at a s...

9:381 LTE Problem 1 A crest vertical curve is to be designed to join a +2% grade with a-2% at a section of a two-lane highway. Determine the minimum length of the curve if the design speed of the highway is 60 mph and SL. Assume that a-9.34 ftsec' and that the perception-reaction time is 2.5 sec. Problem2 A crest vertical curve is to be designed to join a +3% grade with a-2% grade at a section of a two-lane...
3. A 300 ft vertical curve connects a-2.3% approach grade and a +1.6% departure grade. The PVI is...

3. A 300 ft vertical curve connects a-2.3% approach grade and a +1.6% departure grade. The PVI is at 45+65 with elevation 369.22'. The curve is designed for 35 mi/hr speed limit. Calculate stations and elevations for PVC and PVT A 4% grade meets a failing grade of-25%. Station at P1 is at 60+00 and elevation is 95 feet. The length between PVC and PVT is 1400 feet. Find the elevation of the curve at station 58+00 4. 3. A...

2. A crest vertical curve is to be designed by joining a +4% initial tangent with...

2. A crest vertical curve is to be designed by joining a +4% initial tangent with a final -3% tangent. The station location and elevation of VPC are 250+45 and 500 ft respectively. The design speed is 50 mph on the curve. Using AASHTO geometric design guideline, determine: (a) Station location of VPT. (b) Vertical offset at each 1/4 of length distance from VPC.
