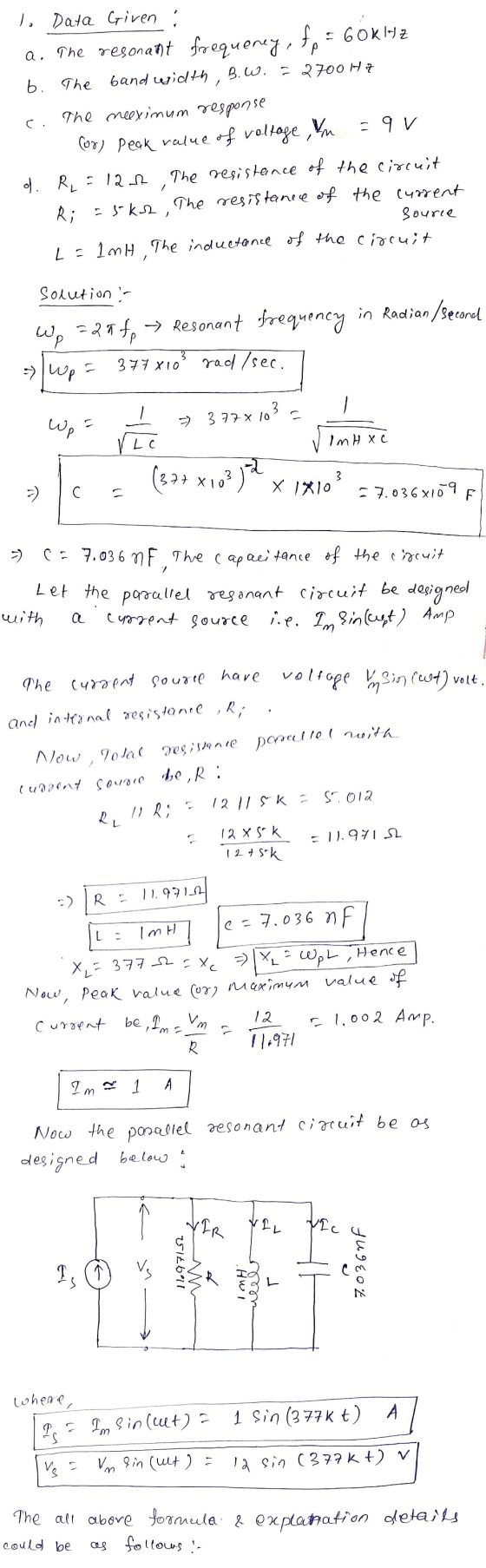

1. Design a parallel resonant circuit which will meet the following specifications:
a. The resonant frequency fp is 60 kHz
b. The bandwidth is 2700 Hz
c. The maximum response is 9 V
d. RL = 12 ohm and L = 1 mH for the coil Current source has an internal resistance of 50 Kohm
Draw the circuit designed and label it with the component values.
. 1. Writing style and organization are very important (Quality not Quantity!).
2. You should not just answer the question but rather discuss all findings .
