A capacitor plate has an area of 6.0 mm2. The plate separation is changed from 4.0...

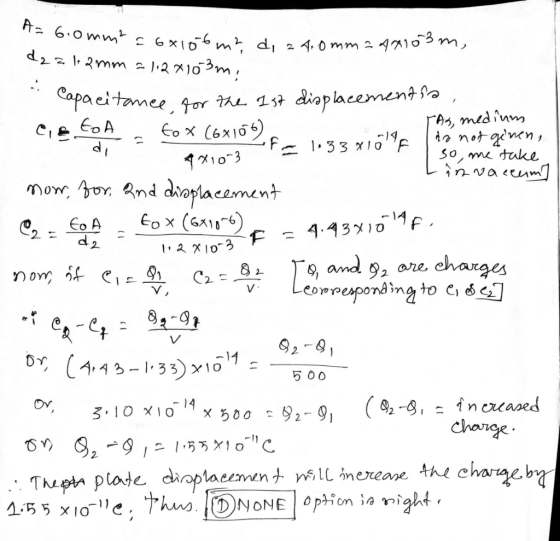

A capacitor plate has an area of 6.0 mm2. The plate separation is changed from 4.0 mm to 1.2 mm maintaining the potential between the plates at 5.0 V. The plate displacement will increase the charge by about:
A) 0.093 C
B) 0.0093 C
C) 0.93 C
D) None
Homework Answers
Add Answer to:
A capacitor plate has an area of 6.0 mm2. The plate separation
is changed from 4.0...
A parallel plate capacitor is constructed with plate area of 0.80 m2 and a plate separation...
A parallel plate capacitor is constructed with plate area of 0.80 m2 and a plate separation of 0.10 mm. When it is charged to a potential difference of 12 V, the charge stored on it is = micro C. A parallel plate capacitor is constructed with plate area of 0.40 m2 and a plate separation of 0.10 mm. When it is charged to a potential difference of 12 V, the charge stored on it is= micro C. A parallel-plate capacitor...
A parallel-plate capacitor has plate area of 0.12 m2and plate separation 1.2 cm. It is charged...
A parallel-plate capacitor has plate area of 0.12 m2and plate separation 1.2 cm. It is charged by a battery to potential difference of 120 V, then disconnected. A dielectric slab, thickness 4.0 mm and dielectric constant 4.8, is placed symmetrically between the plates.(a) Calculate the capacitance before and after the slab is inserted.(b) Calculate the free charge q before and after the slab is inserted.(c) Calculate the magnitude of the electric field in the space between the plates and the...
A parallel plate capacitor is constructed with plate area of 0.40 m2 and a plate separation...
A parallel plate capacitor is constructed with plate area of 0.40 m2 and a plate separation of 0.10 mm. How much charge is stored on it when it is charged to a potential difference of 12 V? A parallel-plate capacitor is filled with air, and the plates are separated by 0.050 mm. If the capacitance is 17.3 pF, what is the plate area? A parallel plate capacitor is constructed with plate area of 0.0010 m2 and a plate separation of...
A parallel-plate capacitor has a plate area of A = 250 cm2 and a separation of...
A parallel-plate capacitor has a plate area of A = 250 cm2 and a separation of d = 2.00 mm. The capacitor is charged to a potential difference of V0 = 150 V by a battery. A dielectric sheet (κ = 3.50) of the same area but thickness ℓ = 1.00 mm is placed between the plates without disconnecting the battery. (See figure 24-18 on page 642). Determine the initial capacitance of the air-filled capacitor. Determine the charge on the...
85. A parallel-plate capacitor with plate area 3.0 cm2 and air- gap separation 0.50 mm is...
85. A parallel-plate capacitor with plate area 3.0 cm2 and air- gap separation 0.50 mm is connected to a 12-V battery, and fully charged. The battery is then disconnected. (a) What is the charge on the capacitor? (b) The plates are now pulled to a separation of 0.75 mm. What is the charge on the capacitor now? (c) What is the potential difference between the plates now? (d) How much work was required to pull the plates to their new...
For a parallel-plate capacitor, the plate area is A = 110 mm2, the plate separation is...
For a parallel-plate capacitor, the plate area is A = 110 mm2, the plate separation is d = 2.5 mm, and the filling dielectric constant εr is 15. (A) Calculate the capacitance of the capacitor: (Unit: pF) (B) After connecting a 11 V battery across the capacitor, calculate E, D, Q, and the total stored electrostatic energy We. (B1) Find the electric filed intensity (E) inside the capacitor: (Unit: V/m) (B2) Find the electric flux density (D) inside the capacitor:...
A parallel-plate capacitor has a plate area of A = 250 cm2 and a separation of...
A parallel-plate capacitor has a plate area of A = 250 cm2 and a separation of d = 2.00 mm. The capacitor is charged to a potential difference of V0 = 150 V by a battery. A dielectric sheet (κ = 3.50) of the same area but thickness ℓ = 1.00 mm is placed between the plates without disconnecting the battery. (See figure 24-18 on page 642). Determine the electric field in the dielectric. Determine the free charge on the...
A parallel-plate capacitor with plate area 4.60 cm2 and air-gap separation 0.78 mm is connected to...
A parallel-plate capacitor
with plate area 4.60 cm2 and air-gap separation 0.78 mm is
connected to a 12.00 V battery, and fully charged. The battery is
then disconnected. (a) What is the charge on the capacitor? (b) The
plates are now pulled to a separation of 0.98 mm. What is the
charge on the capacitor now? (c) What is the potential difference
across the plates now? (d) How much work was required to pull the
plates to their new separation?...
A parallel-plate capacitor with plate area 4.0cm^2 and air-gap separation 0.50❝mm is connected to a 9.0-V...
A parallel-plate capacitor with plate area 4.0cm^2 and air-gap separation 0.50❝mm is connected to a 9.0-V battery, and fully charged. The battery is then disconnected. What is the charge on the capacitor? The plates are now pulled to a separation of 0.75?mm. What is the charge on the capacitor now? What is the potential difference between the plates now? How much work was required to pull the plates to their new separation?
A parallel-plate capacitor with a plate area of 50 mm2 and air between the plates can...
A parallel-plate capacitor with a plate area of 50 mm2 and air between the plates can hold 8.0 pC of charge per volt of potential difference across its plates. When a barium titanate dielectric slab completely fills the space between the plates and the capacitor is connected to a 9.0-V battery, what is the electric field magnitude inside the capacitor? IT IS NOT 1.36 * 102 N/C
85. A parallel-plate capacitor with plate area 3.0 cm2 and air- gap separation 0.50 mm is connected to a 12-V battery, and fully charged. The battery is then disconnected. (a) What is the charge on the capacitor? (b) The plates are now pulled to a separation of 0.75 mm. What is the charge on the capacitor now? (c) What is the potential difference between the plates now? (d) How much work was required to pull the plates to their new...
A parallel-plate capacitor
with plate area 4.60 cm2 and air-gap separation 0.78 mm is
connected to a 12.00 V battery, and fully charged. The battery is
then disconnected. (a) What is the charge on the capacitor? (b) The
plates are now pulled to a separation of 0.98 mm. What is the
charge on the capacitor now? (c) What is the potential difference
across the plates now? (d) How much work was required to pull the
plates to their new separation?...
