A Styrofoam cooler with a thermal conductivity of 0.042W/(m°C) has a surface area of 1.0m2 and...

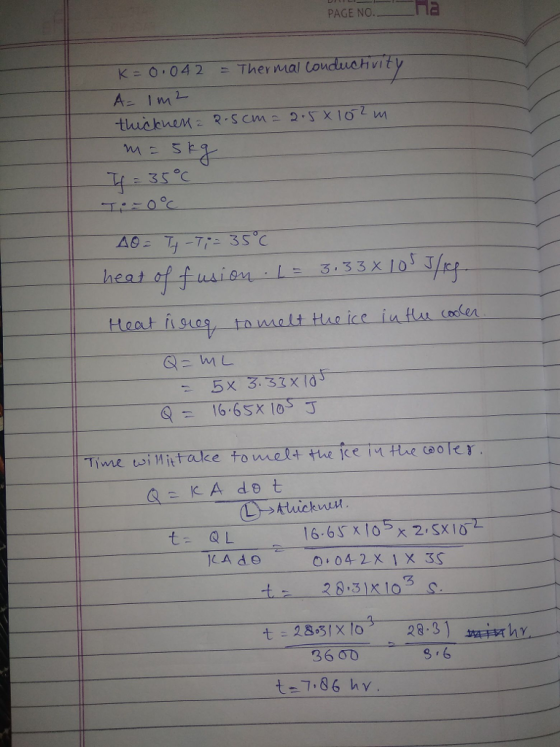

A Styrofoam cooler with a thermal conductivity of 0.042W/(m°C) has a surface area of 1.0m2 and a thickness of 2.5cm. 5.0kg of ice at 0°C is stored inside and the outside temperature is 35°C.
If heat transfer occurs only through conduction, how long does it take for all the ice to melt?
Homework Answers
Add Answer to:
A Styrofoam cooler with a thermal conductivity of 0.042W/(m°C)
has a surface area of 1.0m2 and...
A Styrofoam cooler has a surface area of 2,700 cm2 and a wall thickness of 3.00...
A Styrofoam cooler has a surface area of 2,700 cm2 and a wall thickness of 3.00 cm. Styrofoam has a coefficient of thermal conductivity of 0.010 W/m °C. A 2.00 kg block of ice is placed inside the cooler that has a temperature inside of 2°C. When the temperature outside is 30.0°C, the ice lasts for 8.00 hours. If the temperature outside becomes 20.0°C, then how long will the ice last?
1. A styrofoam cooler is a perfect cube (i.c. normal box shape) that is 0.35 m...
1. A styrofoam cooler is a perfect cube (i.c. normal box shape) that is 0.35 m on as side. The thickness of the sides is 0.0055m. Assume the cooler also has a top (or lid) of the same thickness as the sides. The cooler is made completely of styrofoam (k = 0.010 J/sm."C). The cooler is partially filled with 15,0 liters of water (m- 15.0 kg) and 5.00 kg of ice. a. What is the total surface area of the...
Main Menu Contents Course Content - Styrofoam Cooler • T otes verdade Print Info A styrofoam...
Main Menu Contents Course Content - Styrofoam Cooler • T otes verdade Print Info A styrofoam cooler (K = .030 W/m° C) has outside dimensions of 0.170 m x 0.210 mx 0.340 m, and an average thickness of 3.0 cm. About how long will it take for 2.60 kg of ice at 0° to melt in the cooler if the outside temperature is 24.0°? Som A Thes 0/20 e Post Discussion Send Feedback
Heat conduction occurs through any material, represented here by a rectangular bar, whether window glass or...
Heat conduction occurs through any material, represented here by a rectangular bar, whether window glass or walrus blubber. The temperature of the material is T2 on the left and T1 on the right, where T2 is greater than T1. The rate of heat transfer by conduction is directly proportional to the surface area A, the temperature difference T2 - T1, and the substance's conductivity k. The rate of heat transfer is inversely proportional to the thickness d. Q kA (T2-T)...
A concrete wall of a house is 45 cm thick and has a surface area 20m...
A concrete wall of a house is 45 cm thick and has a surface area 20m x 5 m. The inside temperature of the wall is 47 °C and the outside air temperature is 14 °C. Thermal conductivity of the concrete wall is 0.8 W/mK. Calculate the heat transfer rate through the wall by conduction and its thermal resistance.
PLEASE ANSWER ALL PARTS OF THE QUESTION: Case1, Case 2: a,b ••• Weekly Comprehensive Assign ® V Weekly Comprehensive Ass...
PLEASE ANSWER ALL PARTS OF THE
QUESTION: Case1, Case 2: a,b
••• Weekly Comprehensive Assign ® V Weekly Comprehensive Assign X + a pp varafy.com/lti/v1p1?custom assignment_revision_resource_id=5dcf22405b33ca000406f4ae&custom_attempt_penalties=0&cust... Q € > c S # D Heat Conduction Heat conduction occurs through any material, represented here by a rectangular bar, whether window glass or walrus blubber. The temperature of the material is T2 on the left and T1 on the right, where T2 is greater than T1. The rate of heat transfer by...
Given human body core temperature=37C, skin surface temperature=33C, surface area of body=1.5m^2, and average thickness=1.0cm. Thermal...
Given human body core temperature=37C, skin surface temperature=33C, surface area of body=1.5m^2, and average thickness=1.0cm. Thermal conductivity is 0.2J/(s*m*degree). If one takes into account heat conduction through the skin as the only mechanism for energy dissipation from the body how long would it take to dissipate all the energy contained in a food consisting of 140 Calories?
2.) A plane wall is made of brick with a thermal conductivity of 1.5 W/(m-K). The...
2.) A plane wall is made of brick with a thermal conductivity of 1.5 W/(m-K). The wall is 20 cm thick and has a surface area of 10 m2. One side of the wall is exposed to outside air blowing against the wall resulting in a heat transfer coefficient of 20 W/(m2-K). The other side is exposed to an air-conditioned room with a convective heat transfer coefficient of 5 W/(m2-K). a. What are the thermal resistances corresponding to conduction through...
Consider a 3m x 3m window in a house. The thermal conductivity is reported to be...
Consider a 3m x 3m window in a house. The thermal conductivity is reported to be 0.03W/mK. The temperature on the inside of the window surface is 300K. The outside temperature is 280K. The thickness of the window is 10mm. Calculate the heat flux and the heat transfer through the window.
On a winter day with a temperature of Tc, the temperature inside a room is Th,...
On a winter day with a temperature of Tc, the temperature inside a room is Th, where Th > Tc. The heat conduction rate through a slab of thickness L, surface area A, thermal conductivity k is measured to be H. Assume you found a way to triple the slab thickness and reduce the thermal conductivity to one quarter, what is the new heat transfer rate H’ in terms of H? Assume the temperatures inside and outside the room and...
1. A styrofoam cooler is a perfect cube (i.c. normal box shape) that is 0.35 m on as side. The thickness of the sides is 0.0055m. Assume the cooler also has a top (or lid) of the same thickness as the sides. The cooler is made completely of styrofoam (k = 0.010 J/sm."C). The cooler is partially filled with 15,0 liters of water (m- 15.0 kg) and 5.00 kg of ice. a. What is the total surface area of the...
Main Menu Contents Course Content - Styrofoam Cooler • T otes verdade Print Info A styrofoam cooler (K = .030 W/m° C) has outside dimensions of 0.170 m x 0.210 mx 0.340 m, and an average thickness of 3.0 cm. About how long will it take for 2.60 kg of ice at 0° to melt in the cooler if the outside temperature is 24.0°? Som A Thes 0/20 e Post Discussion Send Feedback
Heat conduction occurs through any material, represented here by a rectangular bar, whether window glass or walrus blubber. The temperature of the material is T2 on the left and T1 on the right, where T2 is greater than T1. The rate of heat transfer by conduction is directly proportional to the surface area A, the temperature difference T2 - T1, and the substance's conductivity k. The rate of heat transfer is inversely proportional to the thickness d. Q kA (T2-T)...
A concrete wall of a house is 45 cm thick and has a surface area 20m x 5 m. The inside temperature of the wall is 47 °C and the outside air temperature is 14 °C. Thermal conductivity of the concrete wall is 0.8 W/mK. Calculate the heat transfer rate through the wall by conduction and its thermal resistance.
PLEASE ANSWER ALL PARTS OF THE
QUESTION: Case1, Case 2: a,b
••• Weekly Comprehensive Assign ® V Weekly Comprehensive Assign X + a pp varafy.com/lti/v1p1?custom assignment_revision_resource_id=5dcf22405b33ca000406f4ae&custom_attempt_penalties=0&cust... Q € > c S # D Heat Conduction Heat conduction occurs through any material, represented here by a rectangular bar, whether window glass or walrus blubber. The temperature of the material is T2 on the left and T1 on the right, where T2 is greater than T1. The rate of heat transfer by...
2.) A plane wall is made of brick with a thermal conductivity of 1.5 W/(m-K). The wall is 20 cm thick and has a surface area of 10 m2. One side of the wall is exposed to outside air blowing against the wall resulting in a heat transfer coefficient of 20 W/(m2-K). The other side is exposed to an air-conditioned room with a convective heat transfer coefficient of 5 W/(m2-K). a. What are the thermal resistances corresponding to conduction through...
