A current of 4.0 A is flowing through a resistance of 25 Ω. What is the...

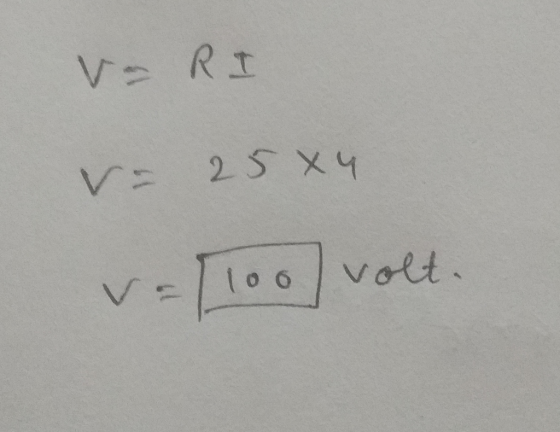

A current of 4.0 A is flowing through a resistance of 25 Ω. What is the voltage difference across this resistance? V
Homework Answers
Add Answer to:
A current of 4.0 A is flowing through a resistance of 25 Ω. What
is the...
Three resistors, R1 2.0 Ω, R2:4.0 Ω, and R3:6.0 Ω are connected as shown in the...
Three resistors, R1 2.0 Ω, R2:4.0 Ω, and R3:6.0 Ω are connected as shown in the figure below. For Circuit 1 (left), (a) Find the equivalent resistance of the combination; .e. [Req1] in Ohms. (b) Find the current that passes through the combination if a potential of 8.0 V is applied to the terminals: L.e. [Itot1] in A (c) Find the voltage across and the current through each resistor; L.e R1: Voltage: [VR11] V and Current: [IR11] A R2: Voltage:...
Procedure 1: Measure Voltage and Current for Resistors in Series One 100-Ω Resistor Item Value voltage...
Procedure 1: Measure Voltage and Current for Resistors in Series One 100-Ω Resistor Item Value voltage across voltage source 3.174 V measured current through circuit |0.032 A resistance of the circuit calculated current through circuit current 90 difference voltage across 100-S2 resistor 3.150 V 100 Ω Two 100-Ω Resistors in Series Item Value voltage across voltage source3.198 V measured current through circuit 0.017 A resistance of the circuit calculated current through circuit current 90 difference voltage across 100-2 resistor 1.582...
(a) What is the current flowing through each resistor in a circuit consisting of a 48.0-V...
(a) What is the current flowing through each resistor in a circuit consisting of a 48.0-V battery and a 24.0 Ω resistor connected in series with a 96.0 Ω resistor? (b) What is the voltage drop across each resistor? (c) What is the power dissipated in each resistor? (d) If the two resistors were connected in parallel rather than series, what would be the current flow through each resistor? (e) What would be the voltage drop across each resistor for...
Q1: What is the effective resistance (in Ω) of a car's starter motor when 142 A...
Q1: What is the effective resistance (in Ω) of a car's starter motor when 142 A flows through it as the car battery applies 10.7 V to the motor? Q2: The cord from an appliance is too short to reach the wall outlet in your room. You have two extension cords to choose from. (a) Find the voltage drop in the first extension cord having a 0.0440 Ω resistance and through which 7.60 A is flowing. V (b) The second...
Find the current flowing through the 7.1-Ω resistor Express your answer using two significant figures The...
Find the current flowing through the 7.1-Ω resistor Express your answer using two significant figures The circuit in the figure (Figure 1) includes a battery with a finite internal resistance, = 0.30 Submit Request Answer ▼ Part B Find the current flowing through the 32-Ω resistor Express your answer using two significant figures Submit Request Answer ▼ Part C How much current flows through the battery? Express your answer using two significant figures Submit Request Answer ▼ Part D Figure...
Three resistors, R1-2.0 Ω, R2-4.0 Ω, and R3 6.0 Ω are connected as shown in the...
Three resistors, R1-2.0 Ω, R2-4.0 Ω, and R3 6.0 Ω are connected as shown in the figure below. For Circuit 1 (left), (a) Find the equivalent resistance of the combination; t.e. Req1] in Ohms ) Find the current that passes through the combination if a potential of 8.0 V is applied to the terminals; L.e. [itot1) in Amps. (c) Find the voltage across and the current through each resistor; L.e. R1: Voltage: [VR11] V and Current: [IR11] A R2: Voltage:...
1)A battery having an e.m.f. of 105 V and an internal resistance of 1 Ω is...
1)A battery having an e.m.f. of 105 V and an internal resistance of 1 Ω is connected in parallel with a d.c. generator of e.m.f. 110 V and internal resistance of 0.5 Ω to supply a load having a resistance of 8 Ω. Calculate: (a) the currents in the battery, the generator and the load; (b) the potential difference across the load. 1)b.Two batteries are connected in parallel. The e.m.f. and internal resistance of one battery are 120 V and...
How do I calculate the “calculated current flowing through each resistor using Kirchhoffs junction rule and...
How do I calculate the
“calculated current flowing through each resistor using Kirchhoffs
junction rule and the measured values”? Please show your work.
Thank you!
Old Dominion University Physics 112 & 232 Lab 2. Use the EXTECH Digital M measure the individual resi "orange, black, brown" band Turn on the DMM and turn 2000 Ω position. 2 V 1.5 V Using wire leads with ab and alligator clip on opp banana plug end of a red wi 2) jack, and...
Resistors 3.0 Ω 4.0 Ω a. 4) a) Determine the equiv. resistance of the network at...
Resistors 3.0 Ω 4.0 Ω a. 4) a) Determine the equiv. resistance of the network at the right between the points a and b. (b)If a battery with emf 9.2 V is connected across ab, what current exits the battery and (c) how much power goes into the circuit? Ans. a) 4.6 2; (b) 2.0 A; (c) 18.4 W 20.0 Ω 9.0 Ω 8.0 2 6.0 Ω
R2 R1 R3 Equivalent Resistance and current (10 pts) 1. R1 = 4 Ω R2-50 R3...
R2 R1 R3 Equivalent Resistance and current (10 pts) 1. R1 = 4 Ω R2-50 R3 = 3 Ω For each arrangement of resistors (a)-(d), find the equivalent resistance between points x and y. Show your work. i. ii. Answer the following for arrangement (d) only, the voltage difference between x and y is 12 V What is the current through each resistor, that is, what is . l2, and Iz. What is the potential difference across each resistor, that...
Three resistors, R1 2.0 Ω, R2:4.0 Ω, and R3:6.0 Ω are connected as shown in the figure below. For Circuit 1 (left), (a) Find the equivalent resistance of the combination; .e. [Req1] in Ohms. (b) Find the current that passes through the combination if a potential of 8.0 V is applied to the terminals: L.e. [Itot1] in A (c) Find the voltage across and the current through each resistor; L.e R1: Voltage: [VR11] V and Current: [IR11] A R2: Voltage:...
Procedure 1: Measure Voltage and Current for Resistors in Series One 100-Ω Resistor Item Value voltage across voltage source 3.174 V measured current through circuit |0.032 A resistance of the circuit calculated current through circuit current 90 difference voltage across 100-S2 resistor 3.150 V 100 Ω Two 100-Ω Resistors in Series Item Value voltage across voltage source3.198 V measured current through circuit 0.017 A resistance of the circuit calculated current through circuit current 90 difference voltage across 100-2 resistor 1.582...
Find the current flowing through the 7.1-Ω resistor Express your answer using two significant figures The circuit in the figure (Figure 1) includes a battery with a finite internal resistance, = 0.30 Submit Request Answer ▼ Part B Find the current flowing through the 32-Ω resistor Express your answer using two significant figures Submit Request Answer ▼ Part C How much current flows through the battery? Express your answer using two significant figures Submit Request Answer ▼ Part D Figure...
Three resistors, R1-2.0 Ω, R2-4.0 Ω, and R3 6.0 Ω are connected as shown in the figure below. For Circuit 1 (left), (a) Find the equivalent resistance of the combination; t.e. Req1] in Ohms ) Find the current that passes through the combination if a potential of 8.0 V is applied to the terminals; L.e. [itot1) in Amps. (c) Find the voltage across and the current through each resistor; L.e. R1: Voltage: [VR11] V and Current: [IR11] A R2: Voltage:...
How do I calculate the
“calculated current flowing through each resistor using Kirchhoffs
junction rule and the measured values”? Please show your work.
Thank you!
Old Dominion University Physics 112 & 232 Lab 2. Use the EXTECH Digital M measure the individual resi "orange, black, brown" band Turn on the DMM and turn 2000 Ω position. 2 V 1.5 V Using wire leads with ab and alligator clip on opp banana plug end of a red wi 2) jack, and...
Resistors 3.0 Ω 4.0 Ω a. 4) a) Determine the equiv. resistance of the network at the right between the points a and b. (b)If a battery with emf 9.2 V is connected across ab, what current exits the battery and (c) how much power goes into the circuit? Ans. a) 4.6 2; (b) 2.0 A; (c) 18.4 W 20.0 Ω 9.0 Ω 8.0 2 6.0 Ω
R2 R1 R3 Equivalent Resistance and current (10 pts) 1. R1 = 4 Ω R2-50 R3 = 3 Ω For each arrangement of resistors (a)-(d), find the equivalent resistance between points x and y. Show your work. i. ii. Answer the following for arrangement (d) only, the voltage difference between x and y is 12 V What is the current through each resistor, that is, what is . l2, and Iz. What is the potential difference across each resistor, that...
