Question

*In order to supply water to your house, water comes from the main pipe with a...

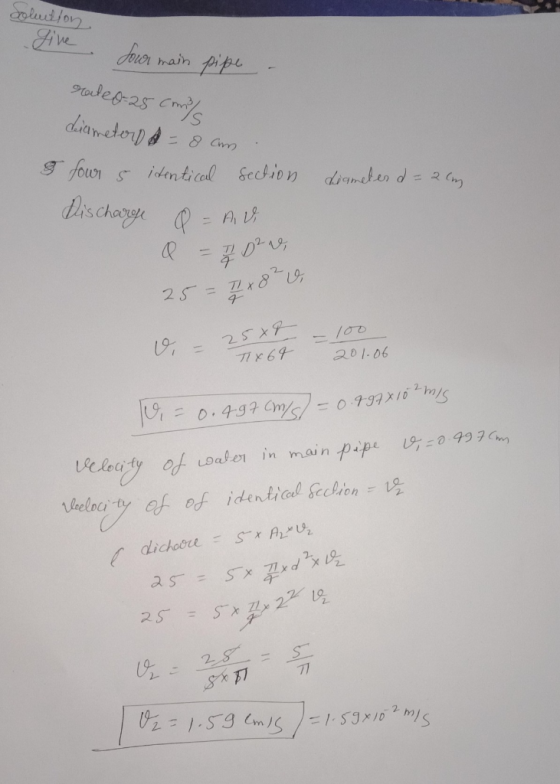

*In order to supply water to your house, water comes from the main pipe with a flow rate of 25 cm3/s and a diameter of 8.0 cm.

*It then splits into 5 identical sections, each of diameter 2.0 cm, that supplies various faucets.

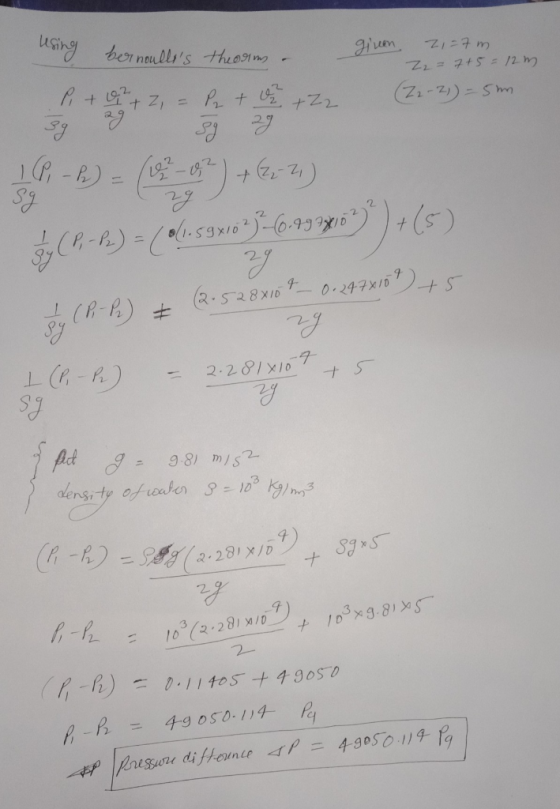

*Compute the pressure difference between the main pipe and the end of one of the sections that is 2 stories high (about 5.0 m above the main pipe) and has a length of 7.0 m. Do not ignore any factor.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
*In order to supply water to your house, water comes from the main pipe with a...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • 20. A cylindrical water tower of diameter 3.0 m supplies water to a house. The level of water in the water tower is 35 m above the point where the water enters the house through a pipe that has an...

    20. A cylindrical water tower of diameter 3.0 m supplies water to a house. The level of water in the water tower is 35 m above the point where the water enters the house through a pipe that has an inside diameter 5.0 cm. The pressure at the top of the water tower is I ATM and the water in the cylindrical tank flows slowly at a speed of 0.01 cm/s. At what speed does the water flow in the...

  • 10. A cylindrical water tower of diameter 3.0 m supplies water to a house. The level...

    10. A cylindrical water tower of diameter 3.0 m supplies water to a house. The level of water in the water tower is 40 m above the point where the water enters the house through a pipe that has an inside diameter 5.1cm. The intake pipe delivers water at a maximum rate of 2.0 x10-3 m3/s. The pipe is connected to a narrower pipe leading to the second floor that has an inside diameter 2.5 cm. What is the pressure...

  • A warehouse is supplied with water through a main pipe with A 5.00 cm diameter. A...

    A warehouse is supplied with water through a main pipe with A 5.00 cm diameter. A faucet located h = 2.10m above the main pipe is 2.00 cm in diameter and can fill a 28.0 L container is 30.0 s. (a) What is the speed (in m/s) at which the water leaves the faucet (in m/s)? (b) What is the gauge pressure (in Pa) in the 5.00 cm wide main pipe? (Assume the faucet is the only "leak" in the...

  • Question 8: Water exits a pipe of diameter 2.0 cm with speed 5.0 m/s. Assume atmospheric...

    Question 8: Water exits a pipe of diameter 2.0 cm with speed 5.0 m/s. Assume atmospheric pressure at the exit. What is the pressure where the pipe diameter is 4.0 cm and 3.0 m below the exit? 20 cm 3.0m YOL cm

  • Question 8: Water exits a pipe of diameter 2.0 cm with speed 5.0 m/s. Assume atmospheric...

    Question 8: Water exits a pipe of diameter 2.0 cm with speed 5.0 m/s. Assume atmospheric pressure at the exit. What is the pressure where the pipe diameter is 4.0 cm and 3.0 m below the exit? 20 cm 3.0m YOL cm

  • A 7.5-cm-diameter horizontal pipe gradually narrows to 5.0 cm . When water flows through this pipe...

    A 7.5-cm-diameter horizontal pipe gradually narrows to 5.0 cm . When water flows through this pipe at a certain rate, the gauge pressure in these two sections is 31.0 kPa and 25.0 kPa , respectively. What is the volume rate of flow? Q= ____ m^3/s Please explain step by step.

  • A pipe with an internal diameter of 2.0 cm carries water to the basement of a...

    A pipe with an internal diameter of 2.0 cm carries water to the basement of a house at a speed of 0.90 m / s with a pressure of 150 kPa. If the pipe narrows to 1.2 cm and rises to the second floor, 8.2 m above the point of entry, what is the water pressure on the second floor? (Consider acceleration of gravity equal to 10 m / s² and water density equal to 10³kg / m³) a. 16,8...

  • A pump circulates water through a system of connected pipes on a house from the basement...

    A pump circulates water through a system of connected pipes on a house from the basement to the top floor. The pump is located in the basement and drives water at 3.93m/s through a 6.99 cm diameter pipe at a gauge pressure of 425000 Pa. What will be the pressure (in kPa) in a 3.19 cm diameter pipe on the top floor, 21.6 m above the pipe? Please show work!

  • 1. For water at 20 C flowing through a straight smooth pipe at 0.06 m/h, the...

    1. For water at 20 C flowing through a straight smooth pipe at 0.06 m/h, the pipe diameter for which transition to turbulence will occur is approximately a. 1.0 cm b. 1.5 cm c.2.0 cm d. 2.5 cm e. 3.0 cm 2. Find the Reynold number, the roughness parameter, the friction factor f and the pressure drop for flow of water at 20 C through a 5 cm diameter pipe of roughness height E=0.5 mm if the flow rate is...

  • Underground water needs to be pumped into a pool

    The school decides to create a new Fluids test facility on the lab building roof. Underground water needs to be pumped bu a 7373% efficient 5.05.0-kW submerged pump to the facility, which has a free surface h=3030 m above the underground water level. The diameter of the pipe is 7.07.0 cm on the intake side and 5.05.0 cm on the discharge side.Assume the elevation difference between the pump inlet and the outlet and the effect of the kinetic energy correction factors to be negligible.a) Determine the maximum...
